Instrument Cluster & Taillights Wiring Diagram

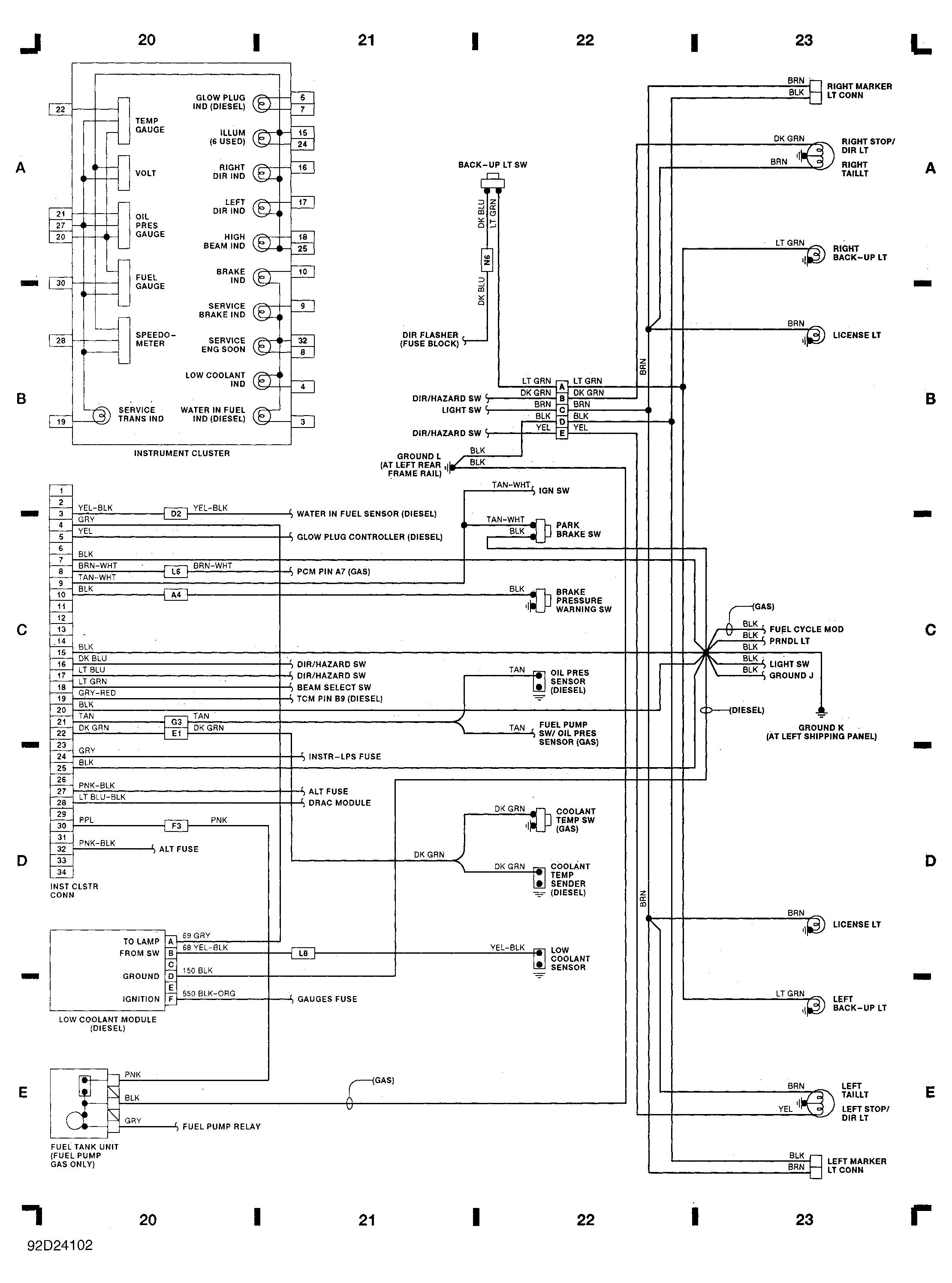

Fig 1: Instrument Cluster & Taillights (Grids 20-23)

G92D24102
