Engine Compartment & Headlights Wiring Diagram

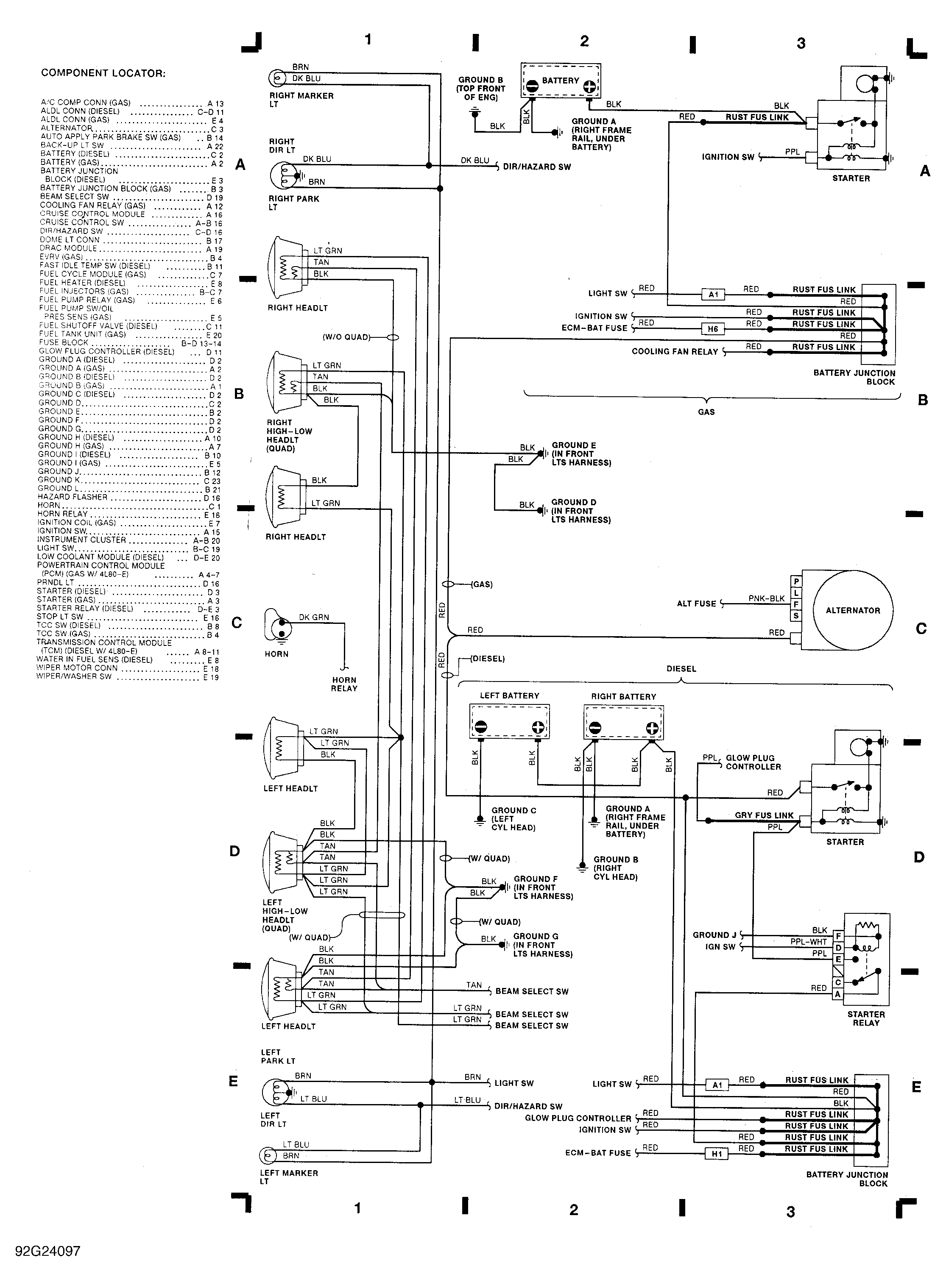

Fig 1: Engine Compartment & Headlights (Grids 1-3)

G92G24097
