Serpentine Belt Routing (6.2L & 6.5L - Diesel)

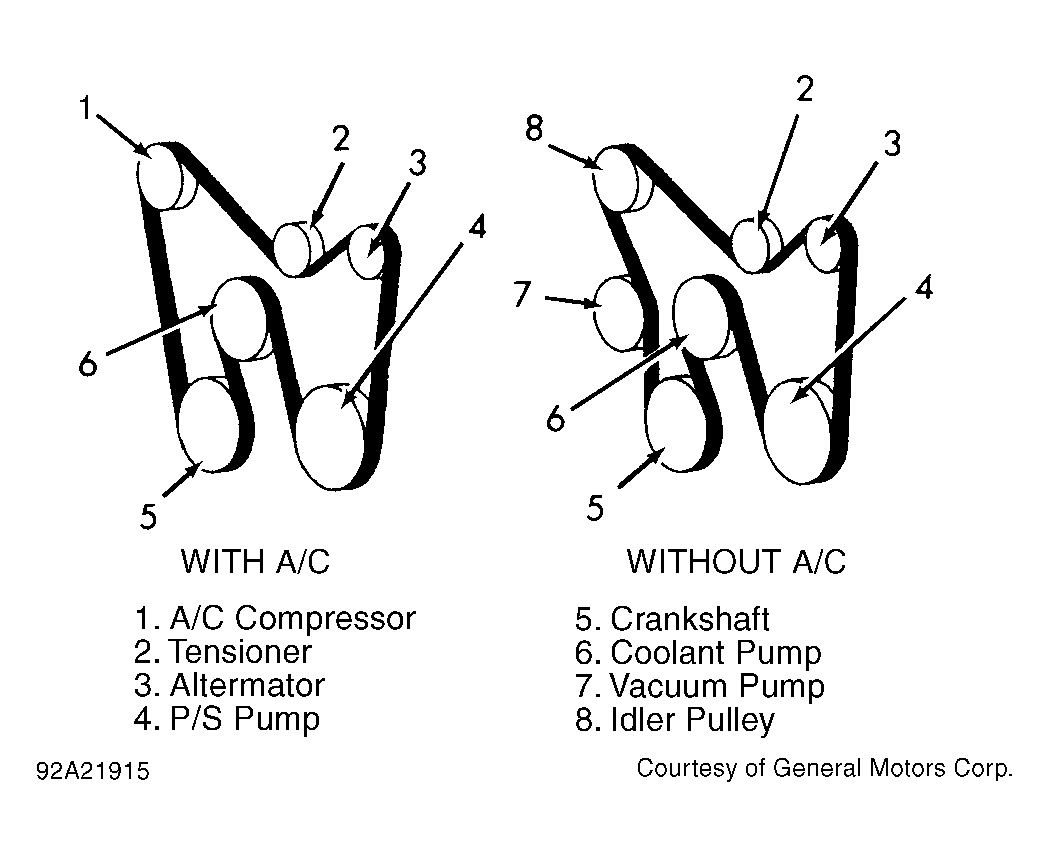

Fig 1: Serpentine Belt Routing (6.2L & 6.5L - Diesel)

G92A21915

Courtesy of GENERAL MOTORS CORP.
