Serpentine Belt Routing (4.3L, 5.0L & 5.7L)

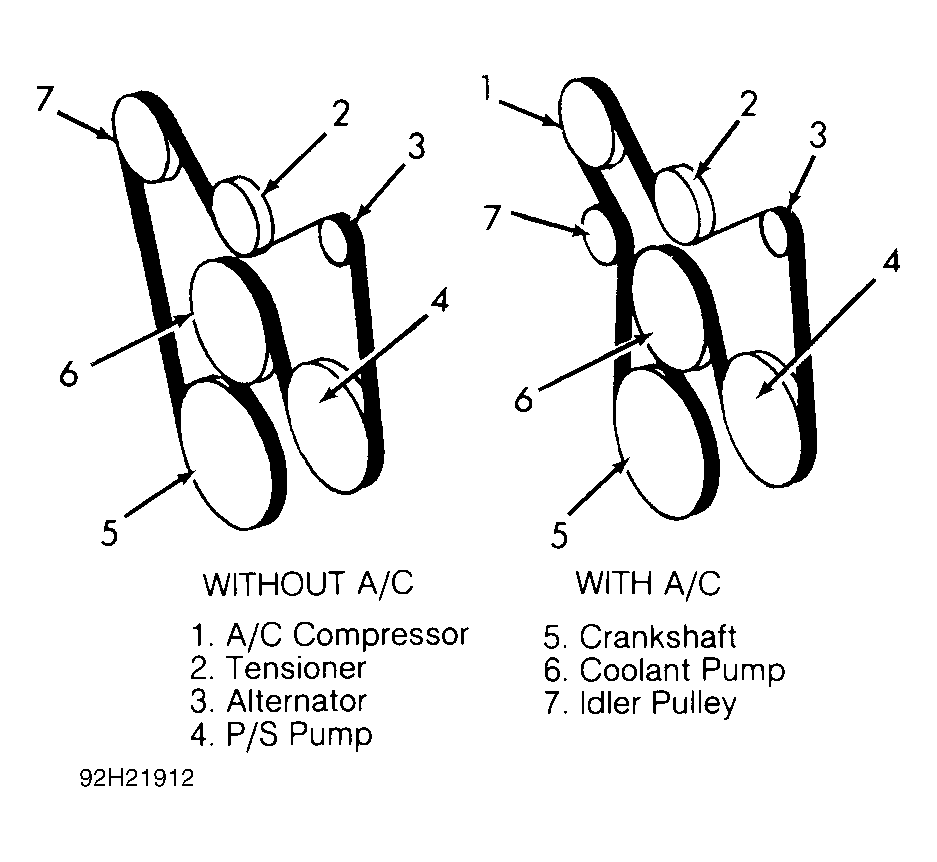

Fig 1: Serpentine Belt Routing (4.3L, 5.0L & 5.7L Without Air Injection Reaction (A.I.R.) System)
G92H21912Courtesy of GENERAL MOTORS CORP.

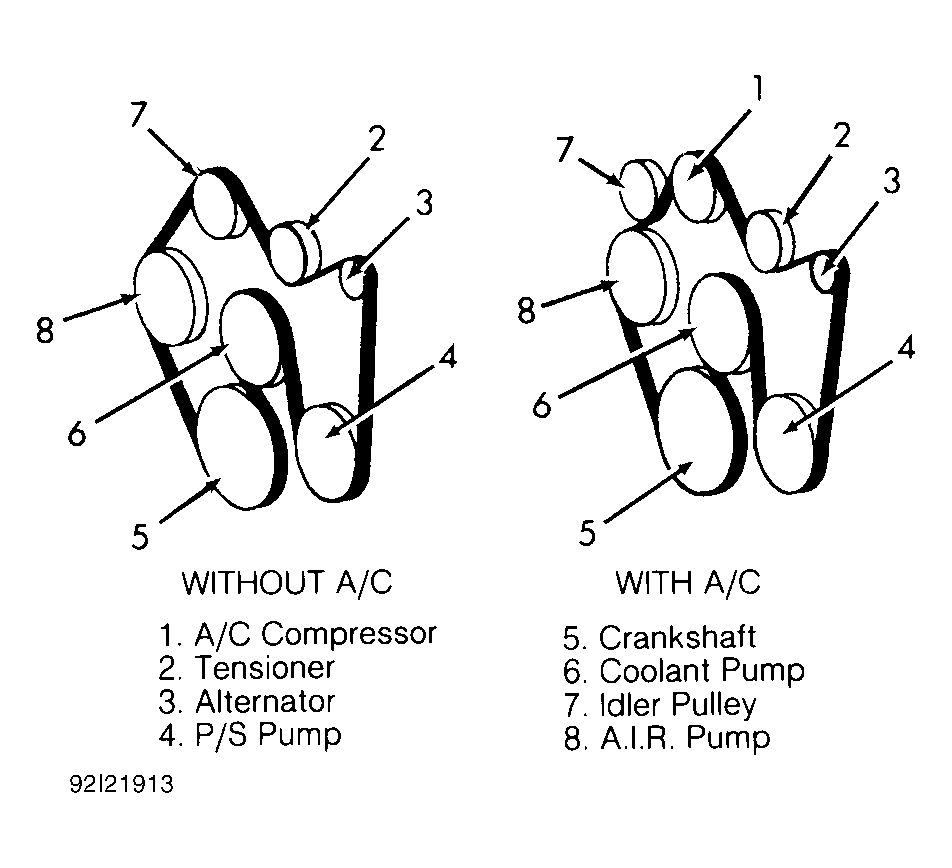

Fig 2: Serpentine Belt Routing (4.3L & 5.7L With Air Injection Reaction (A.I.R.) System)
G92I21913Courtesy of GENERAL MOTORS CORP.
