Shock Absorber: Installation
NOTE:

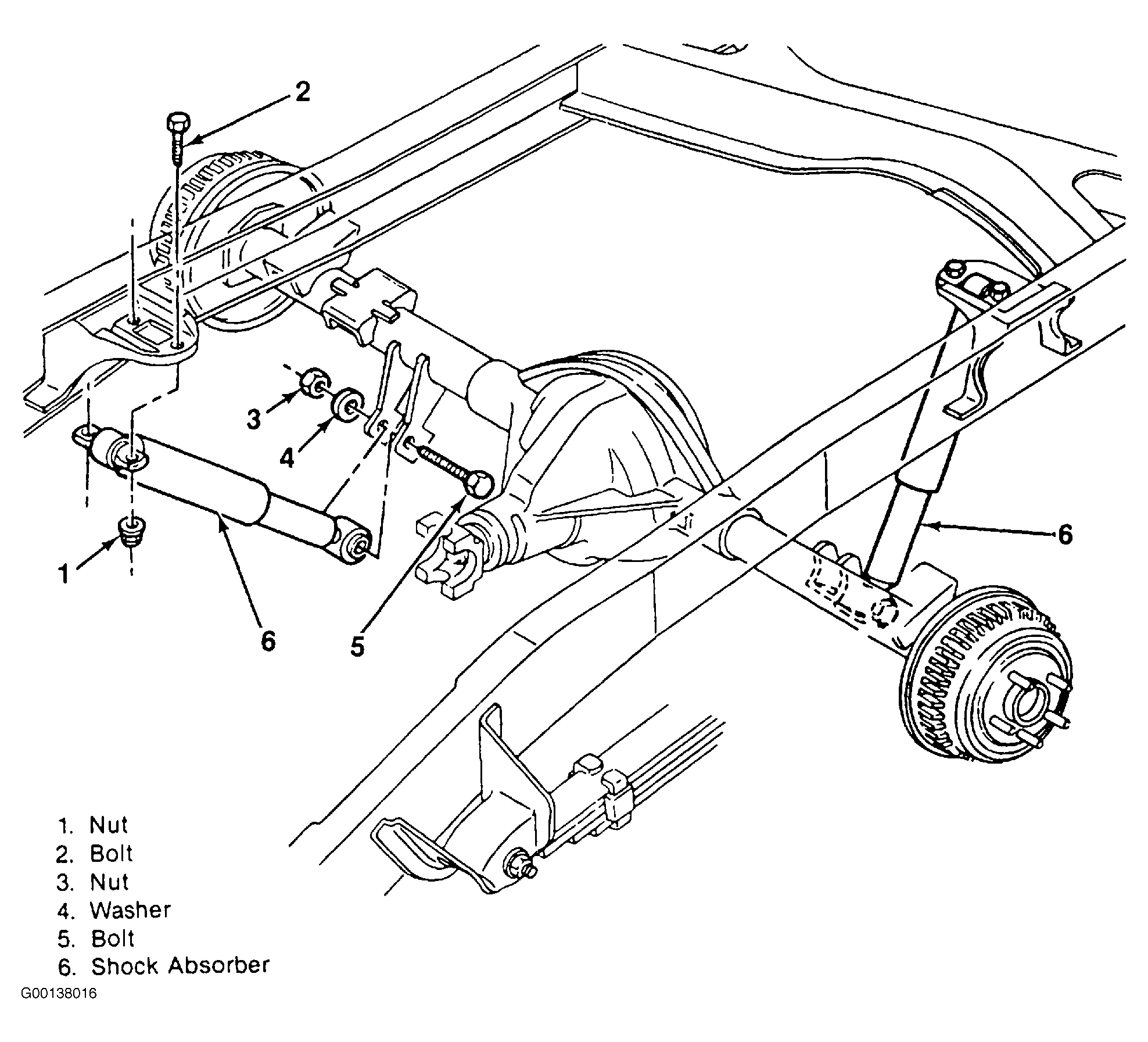

Numbers in parenthesis refer to components and procedures identified in illustrations.
- Install the shock absorber (6) to the vehicle. See Figure.
- Install the lower shock bolt (5), washer (4), and nut (3). See Figure.
- Install the upper shock bolt (2) and nut (1).
- Tighten the lower nut, then tighten the upper nut to specification. See TORQUE SPECIFICATIONS .
- Lower the vehicle.
