Wiring Diagrams

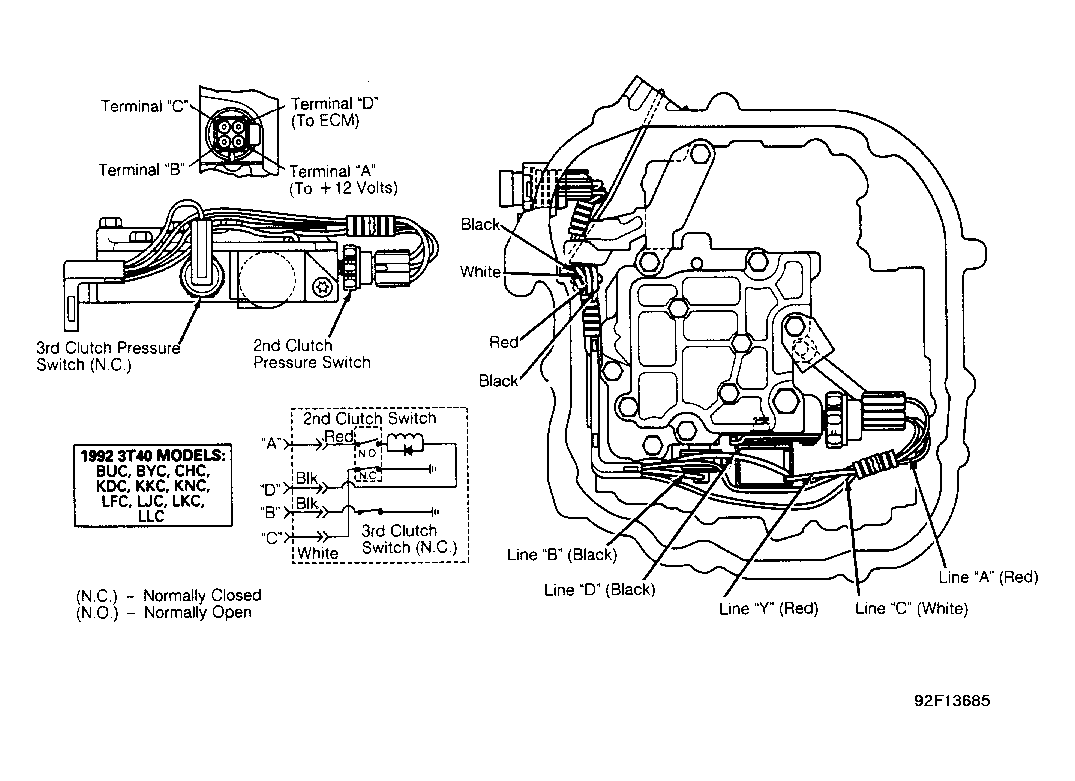

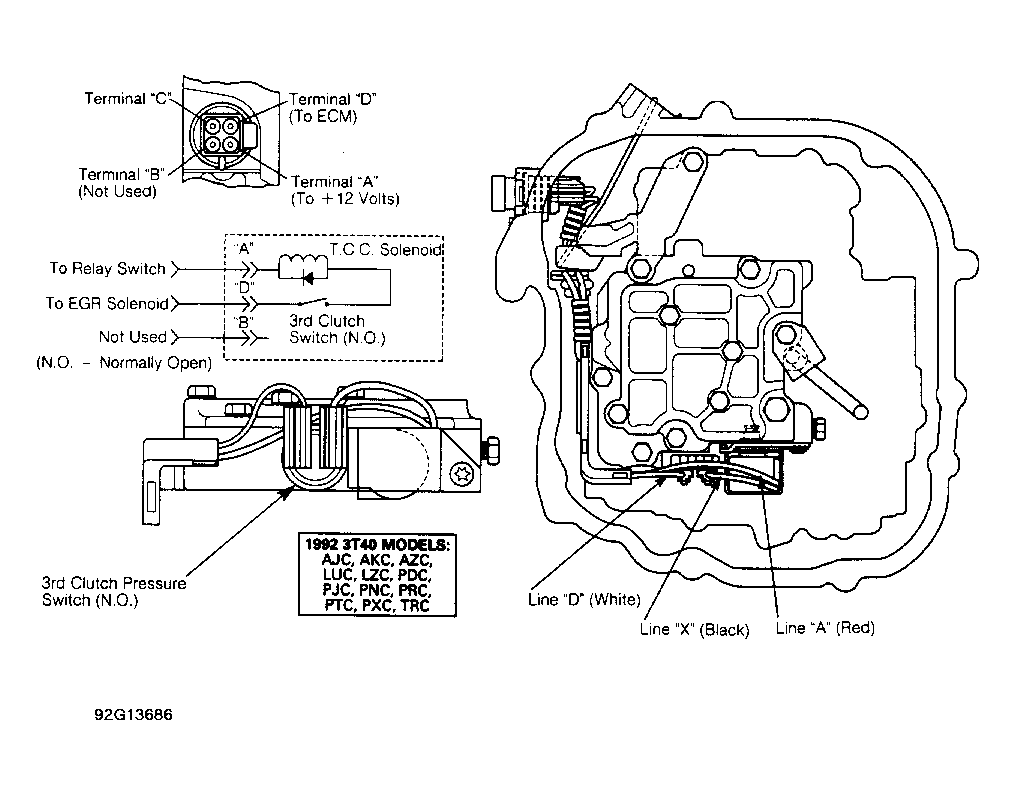

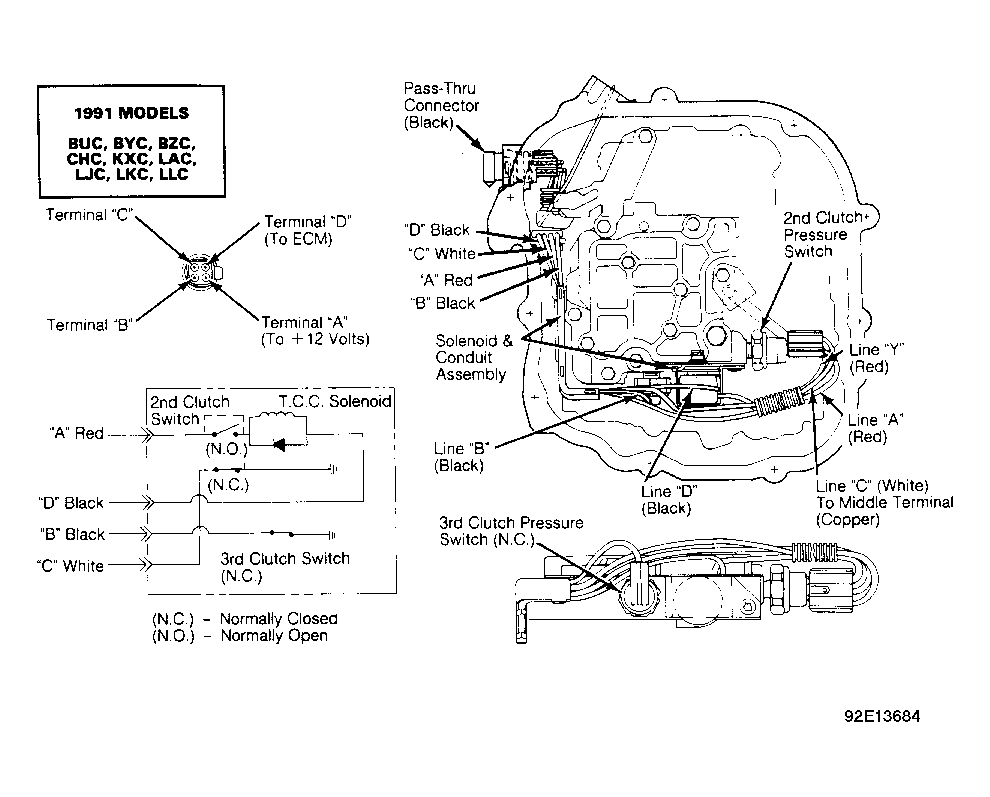

Fig 1: THM 3T40 Torque Converter Clutch Solenoid & Wiring (1 Of 5)

Courtesy of GENERAL MOTORS CORP.

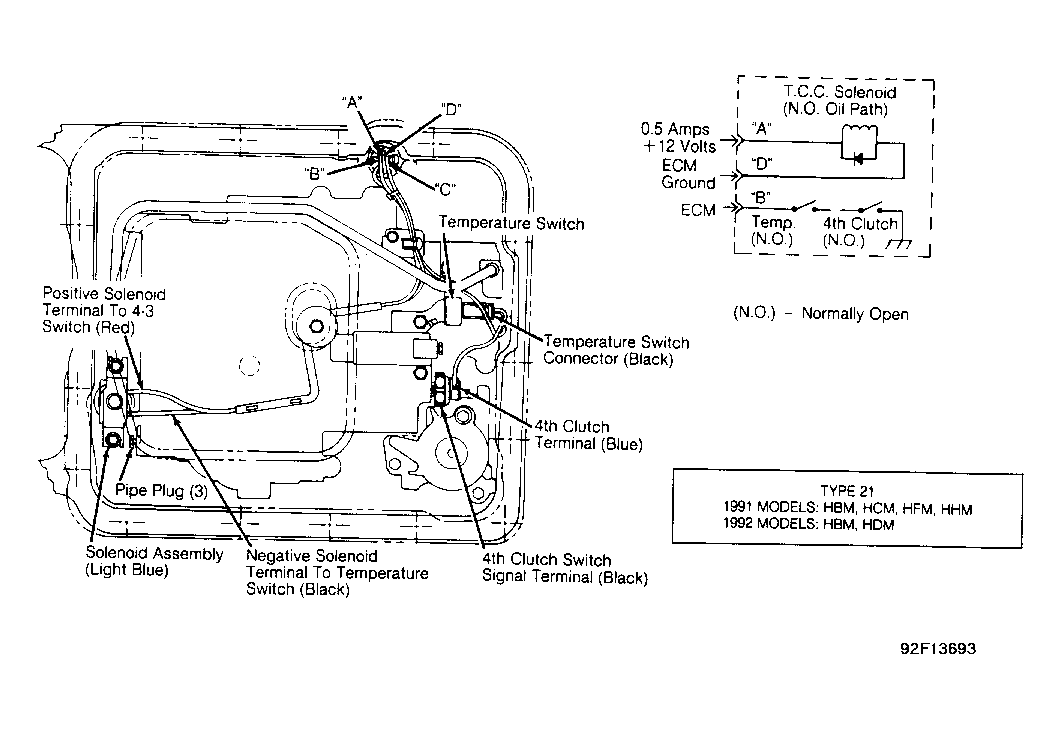

Fig 2: THM 3T40 Torque Converter Clutch Solenoid & Wiring (2 Of 5)

Courtesy of GENERAL MOTORS CORP.

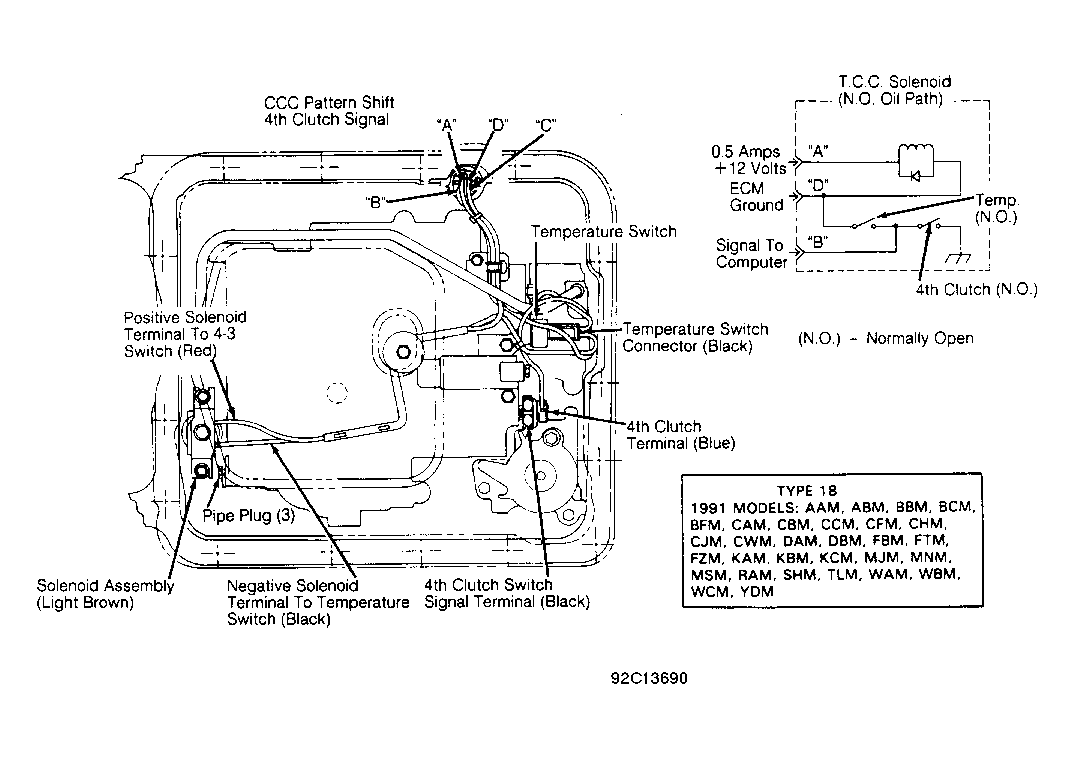

Fig 3: THM Torque Converter Clutch Solenoid & 3T40 Wiring (3 Of 5)

Courtesy of GENERAL MOTORS CORP.

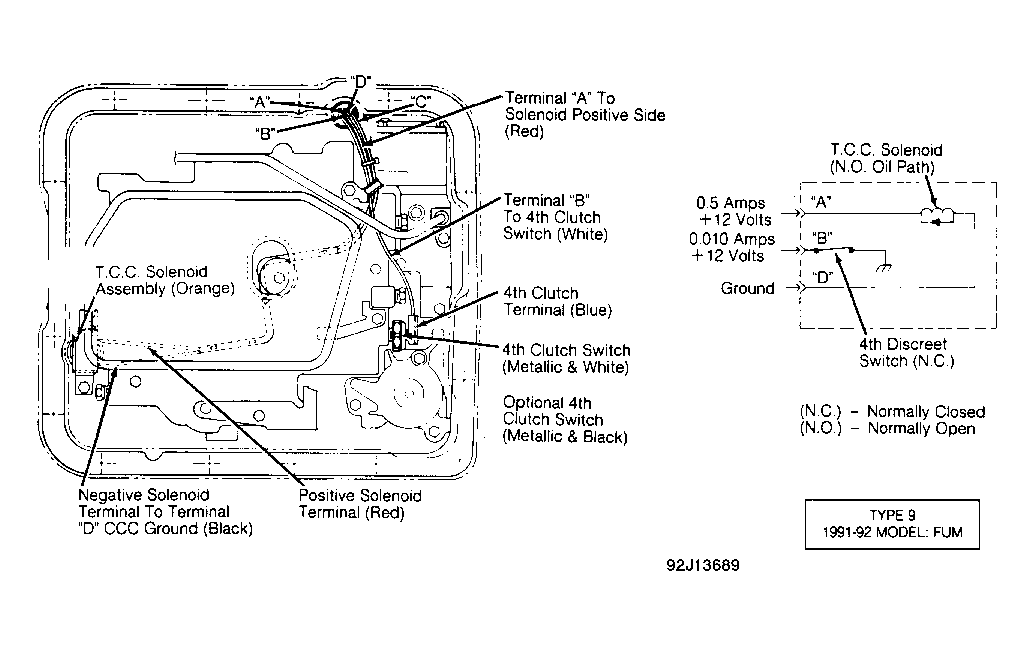

Fig 4: THM 3T40 Torque Converter Clutch Solenoid & Wiring (4 Of 5)

Courtesy of GENERAL MOTORS CORP.

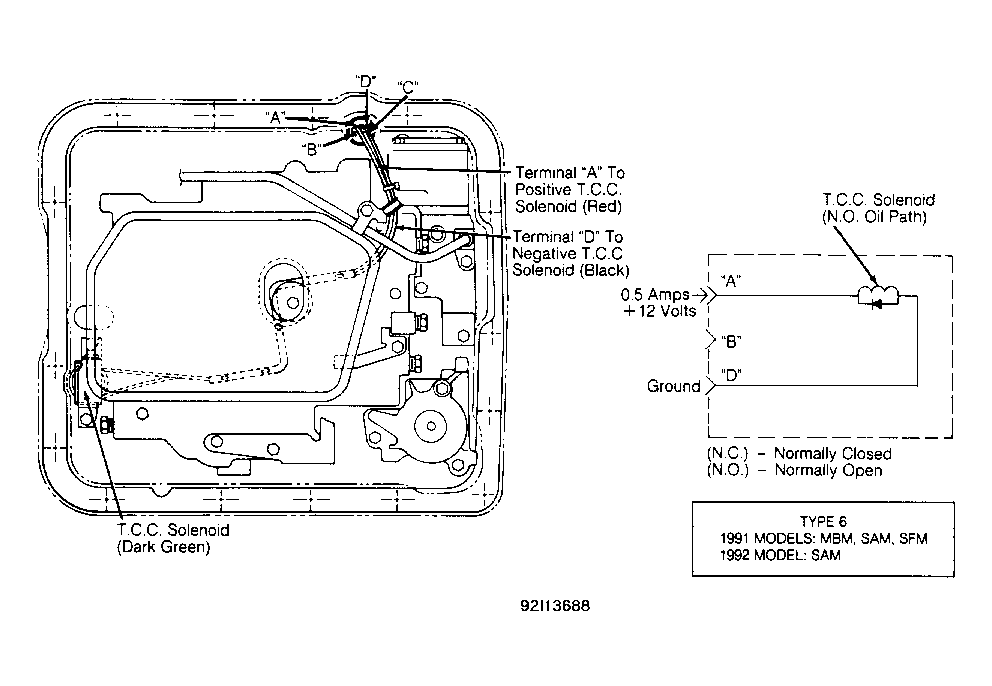

Fig 5: THM 3T40 Torque Converter Clutch Solenoid & Wiring (5 Of 5)

Courtesy of GENERAL MOTORS CORP.

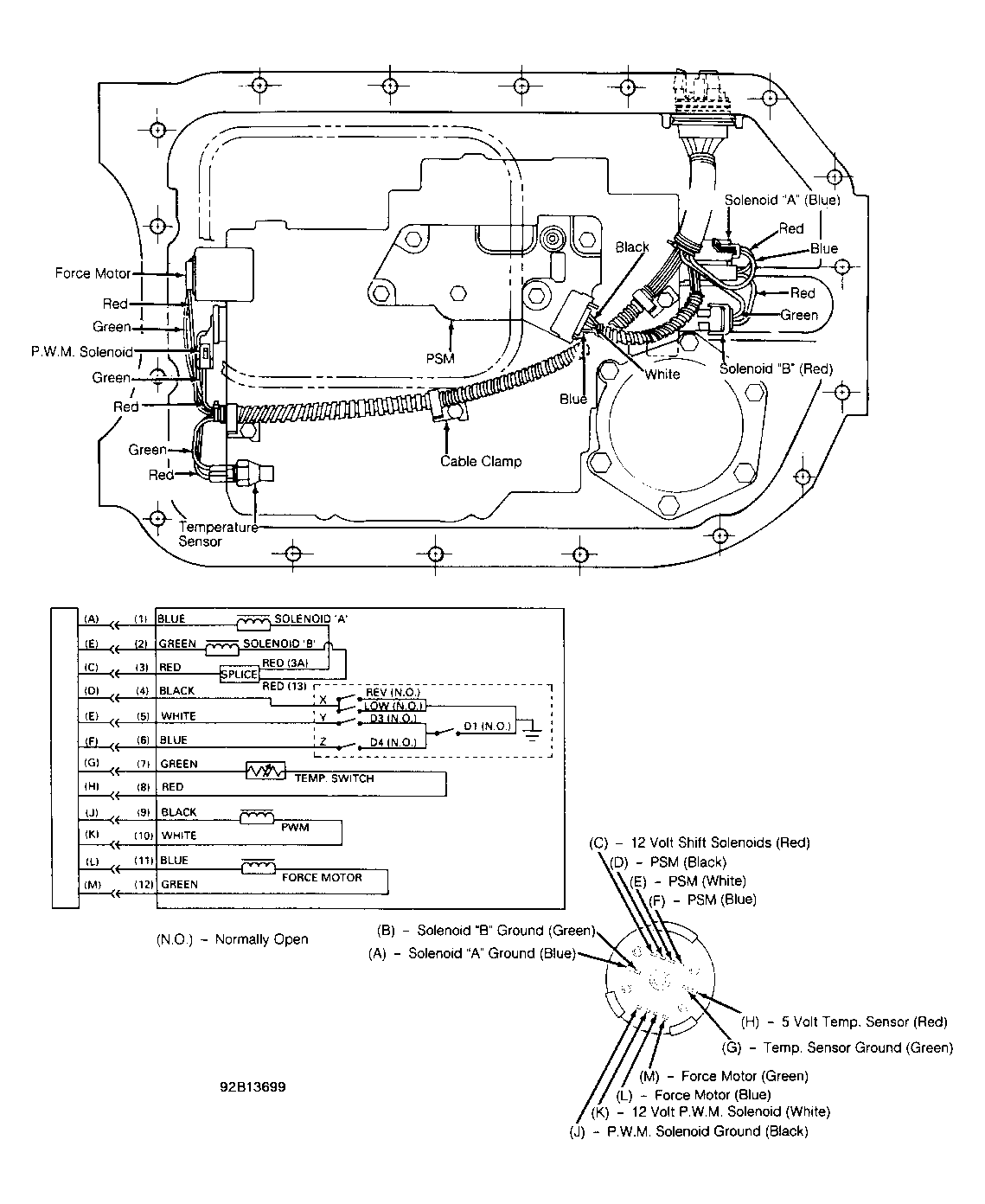

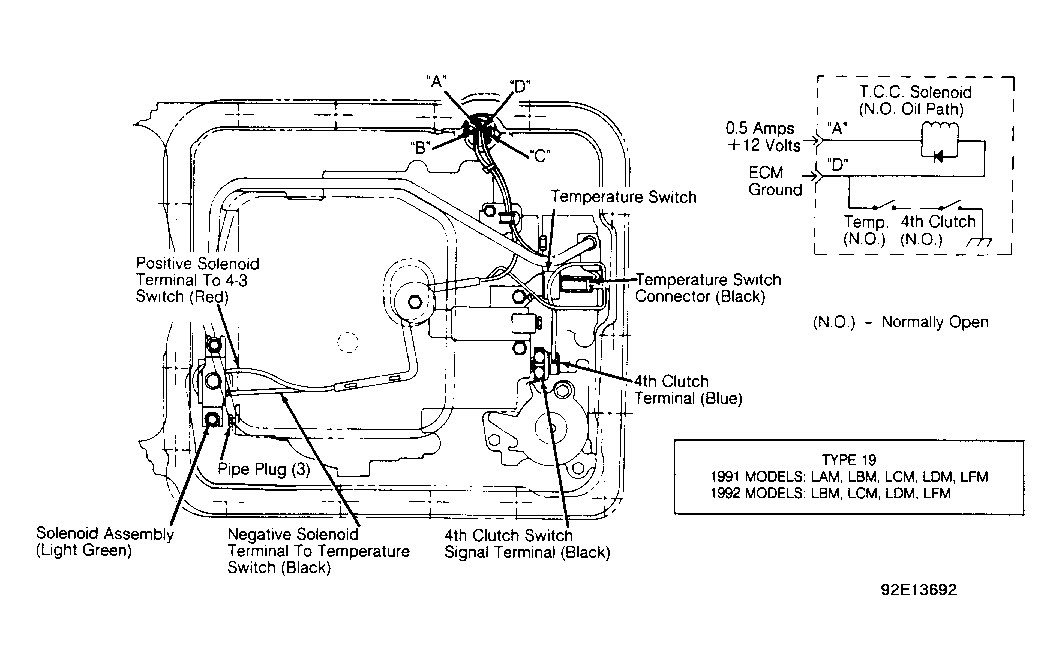

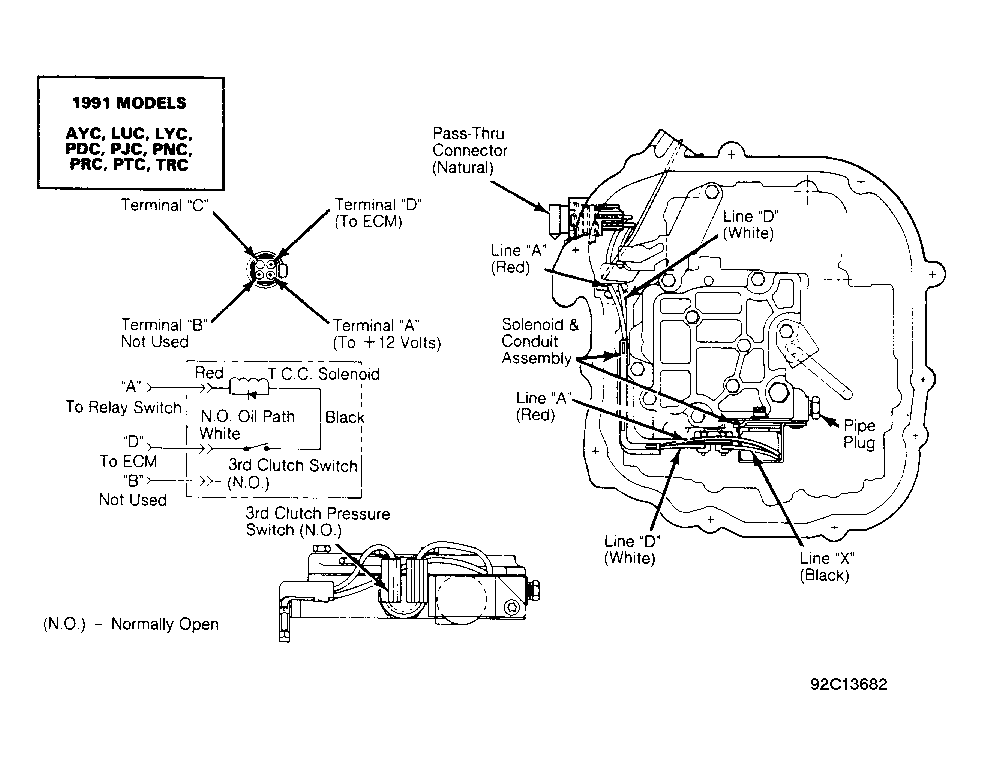

Fig 6: THM 4L60 Torque Converter Clutch Solenoid & Wiring (1 Of 7)

Courtesy of GENERAL MOTORS CORP.

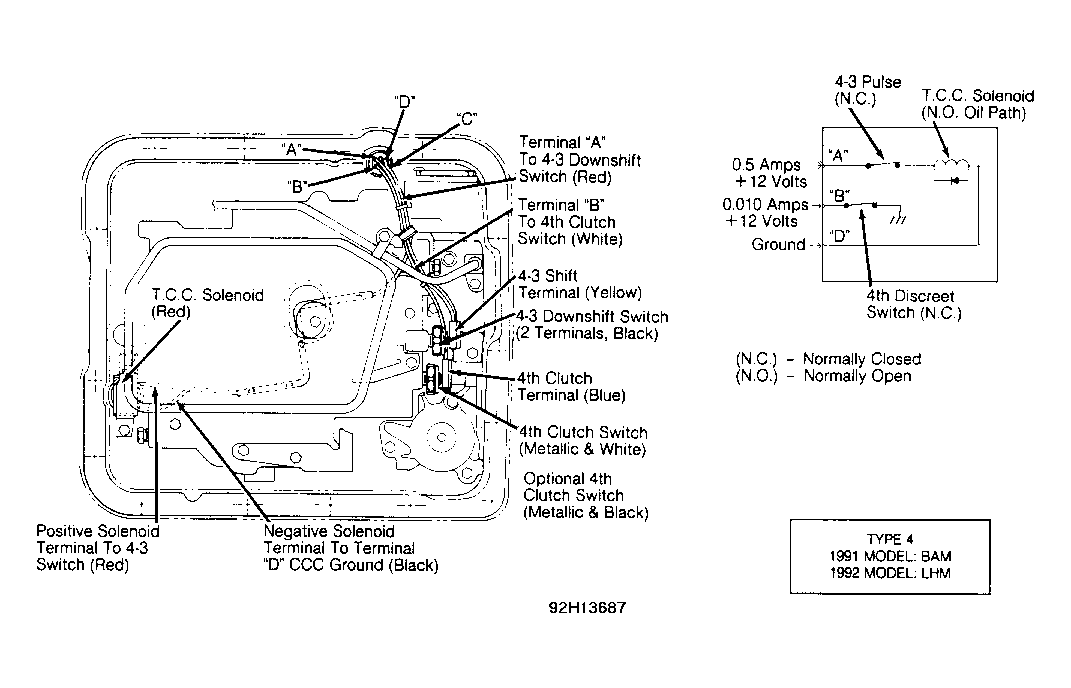

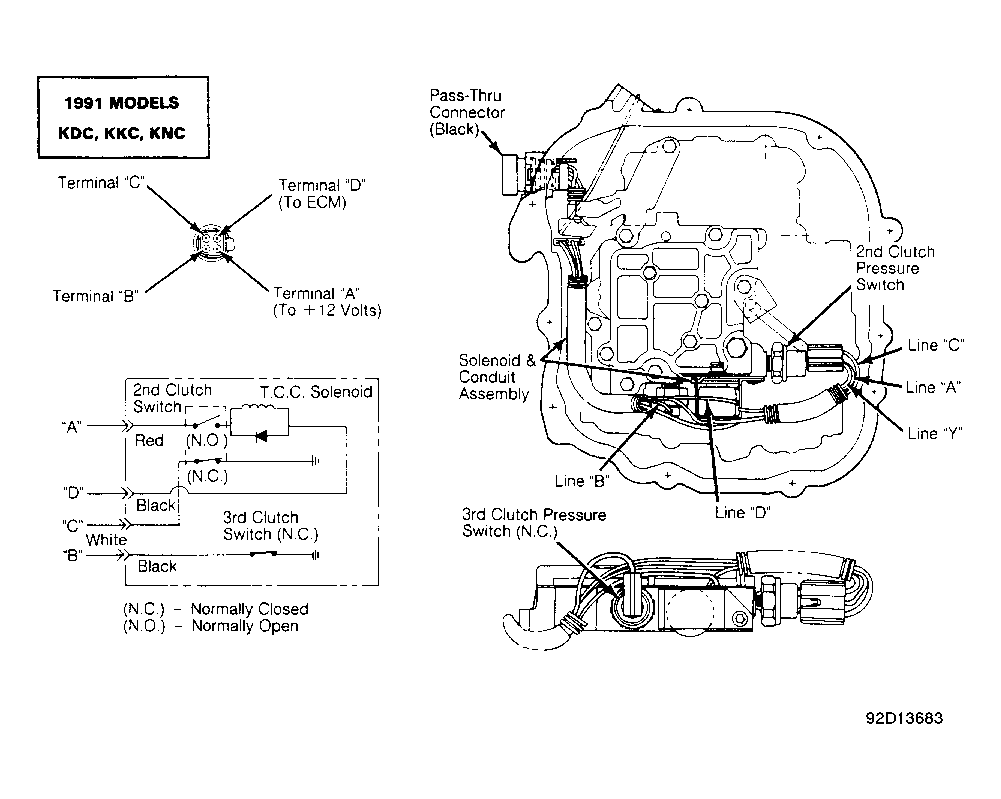

Fig 7: THM 4L60 Torque Converter Clutch Solenoid & Wiring (2 Of 7)

Courtesy of GENERAL MOTORS CORP.

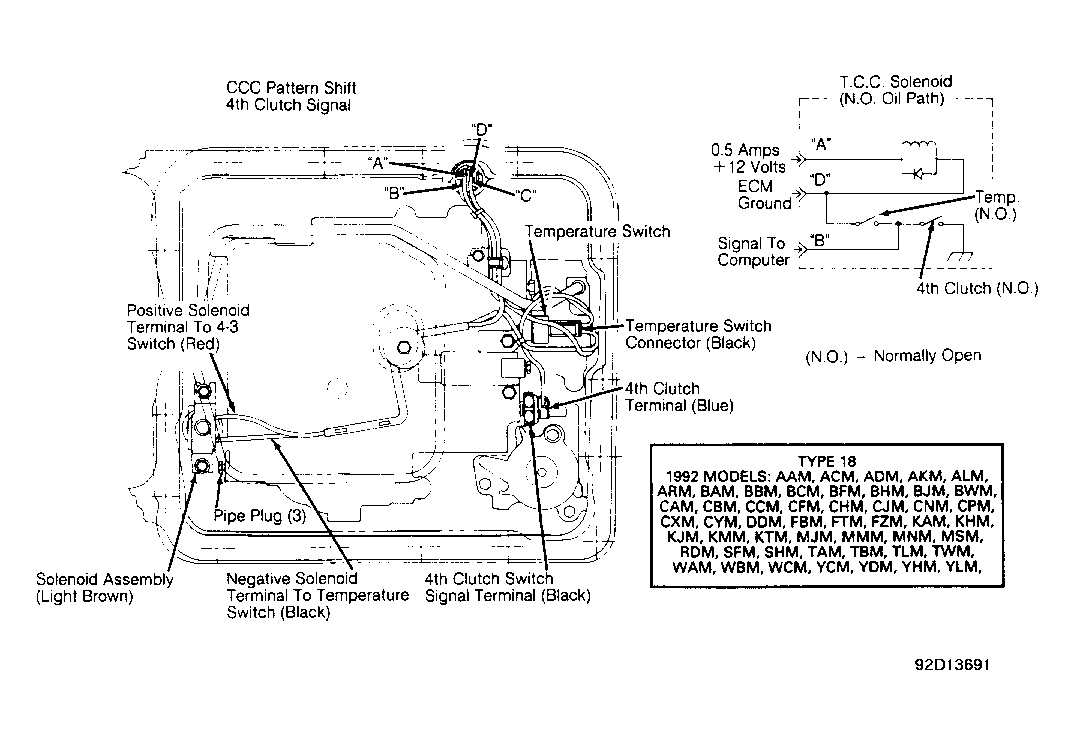

Fig 8: THM 4L60 Torque Converter Clutch Solenoid & Wiring (3 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 9: THM 4L60 Torque Converter Clutch Solenoid & Wiring (4 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 10: THM 4L60 Torque Converter Clutch Solenoid & Wiring (5 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 11: THM 4L60 Torque Converter Clutch Solenoid & Wiring (6 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 12: THM 4L60 Torque Converter Clutch Solenoid & Wiring (7 Of 7)

Courtesy of GENERAL MOTORS CORP.

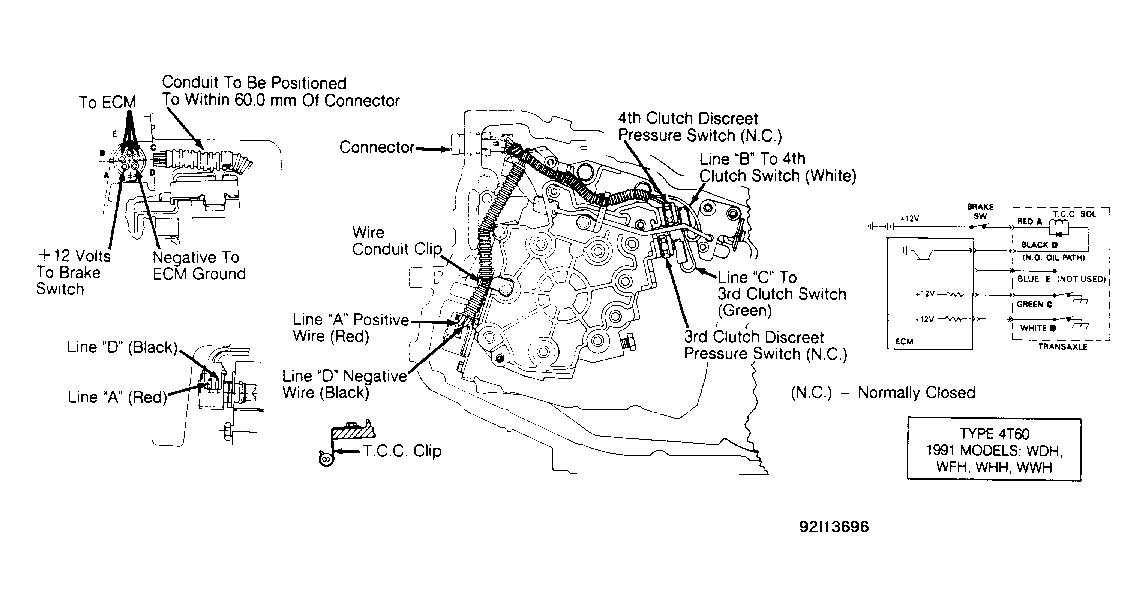

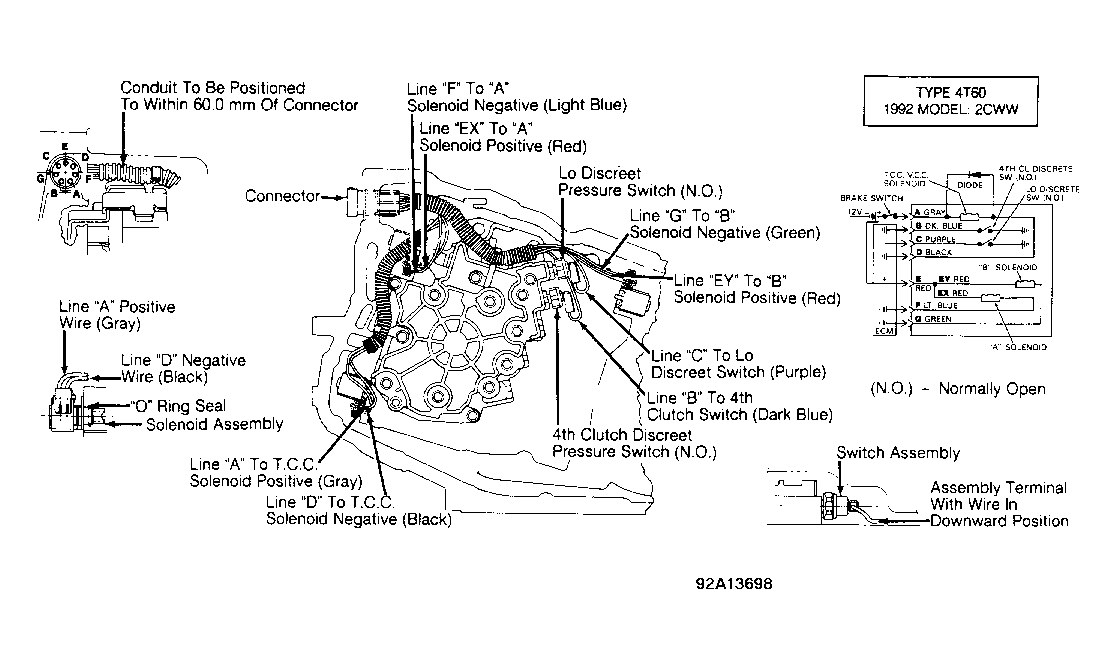

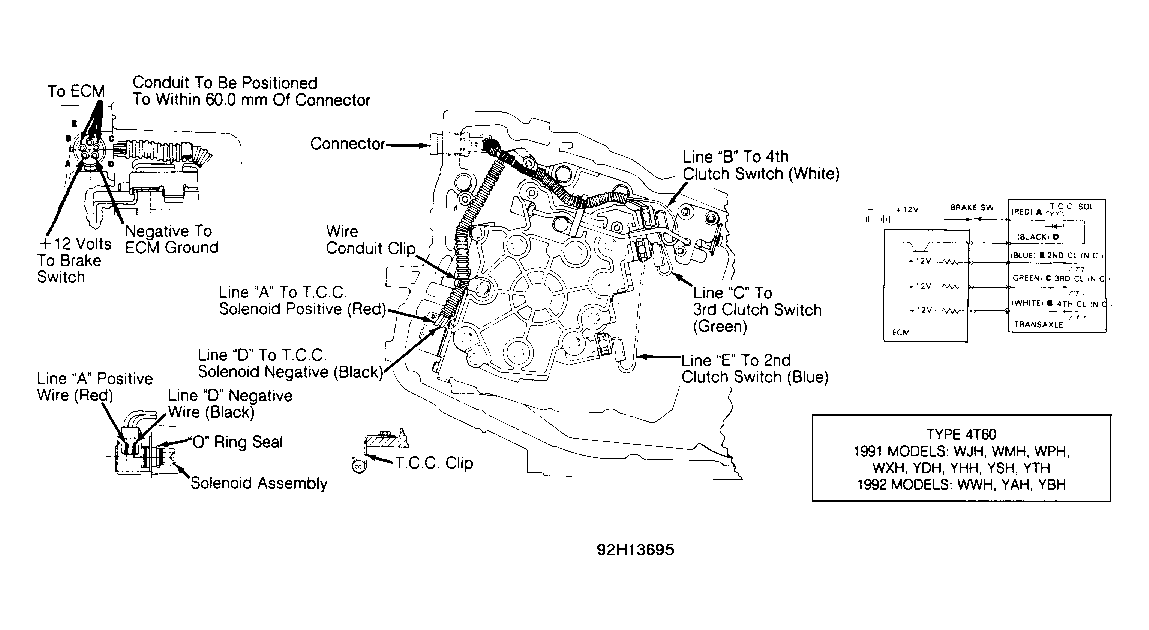

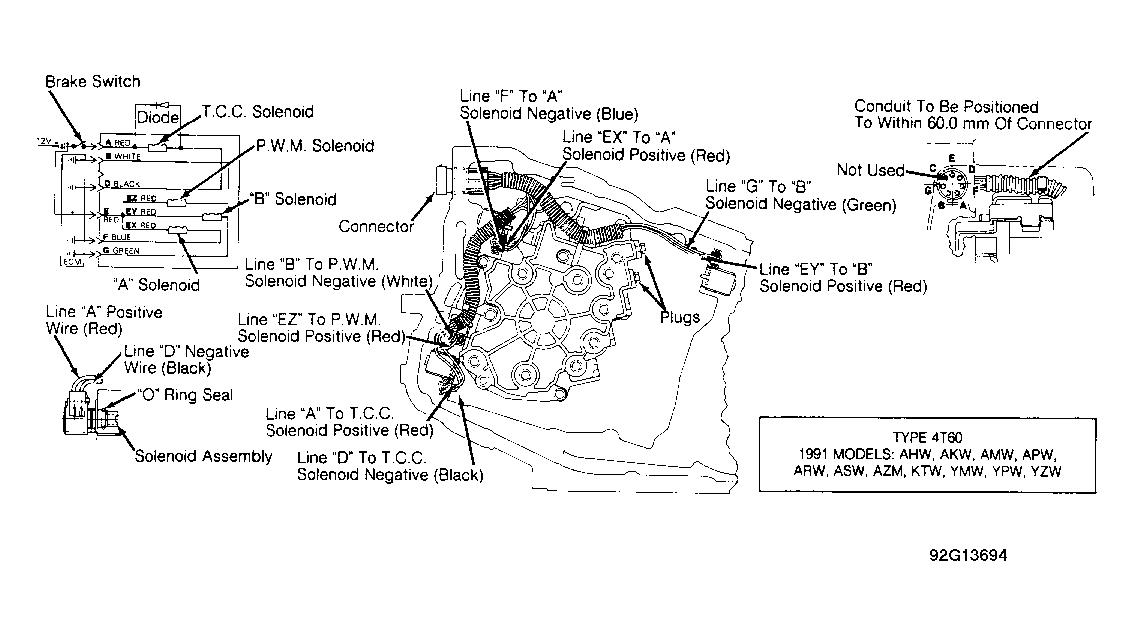

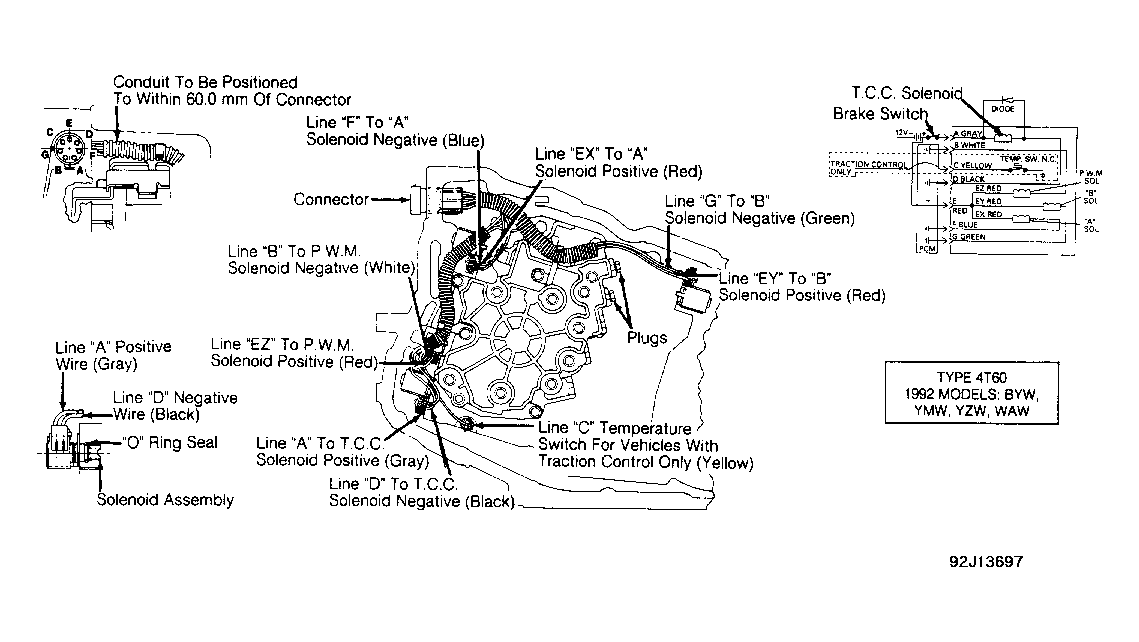

Fig 13: THM 4T60 Torque Converter Clutch Solenoid & Wiring (1 Of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 14: THM 4T60 Torque Converter Clutch Solenoid & Wiring (2 Of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 15: THM 4T60 Torque Converter Clutch Solenoid & Wiring (3 Of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 16: THM 4T60 Torque Converter Clutch Solenoid & Wiring (4 Of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 17: THM 4T60 Torque Converter Clutch Solenoid & Wiring (5 Of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 18: THM 4L80 Torque Converter Clutch Solenoid & Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

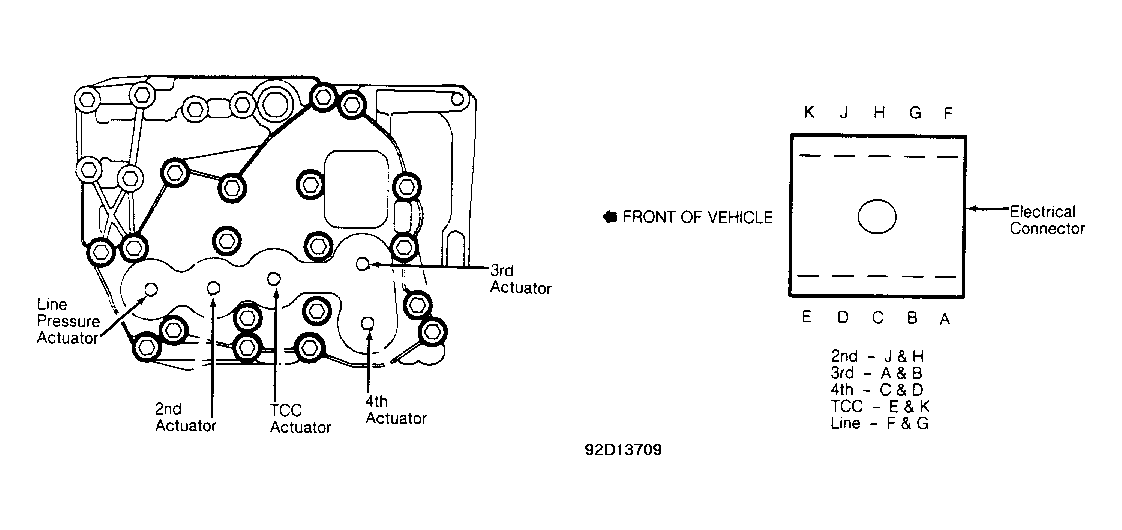

Fig 19: Saturn MP6 & MP7 Torque Converter Clutch Actuators & Electrical Connector Wire Locations

Courtesy of GENERAL MOTORS CORP.
