Code 39, TCC Circuit 3.3L With 3T40 Transaxle: Notes

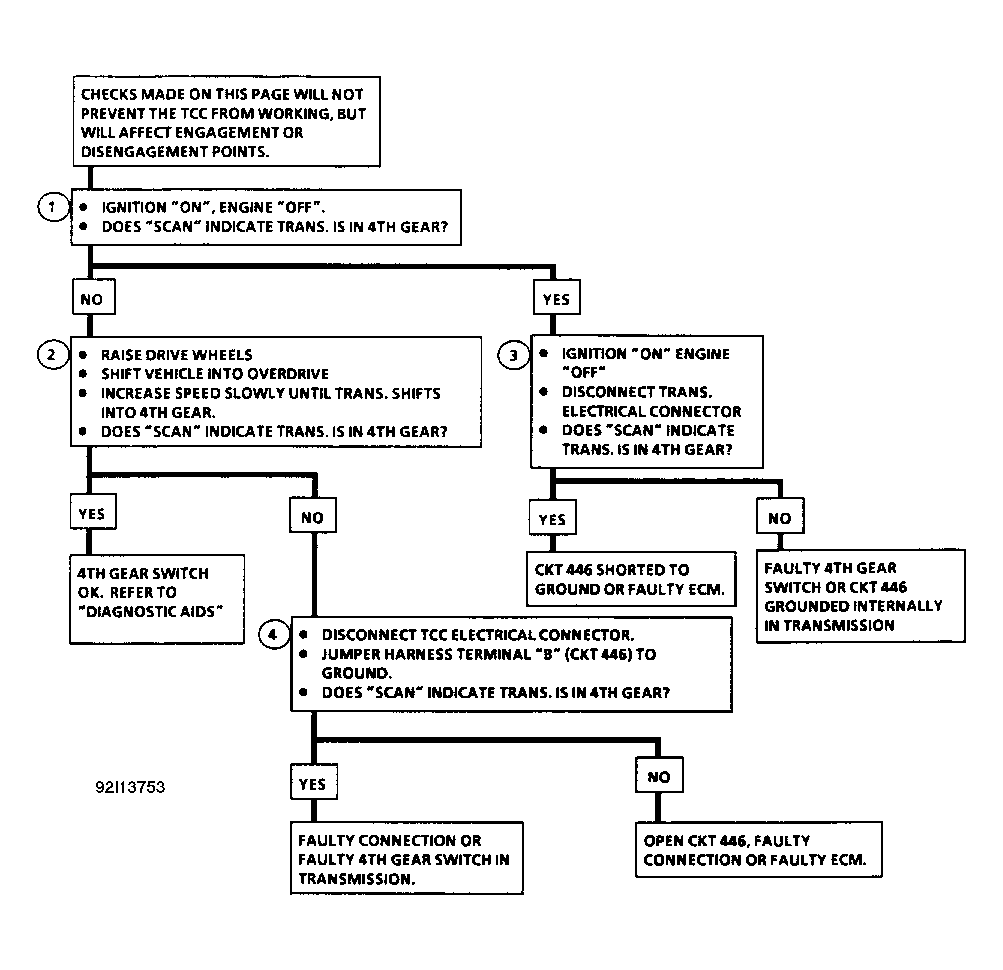

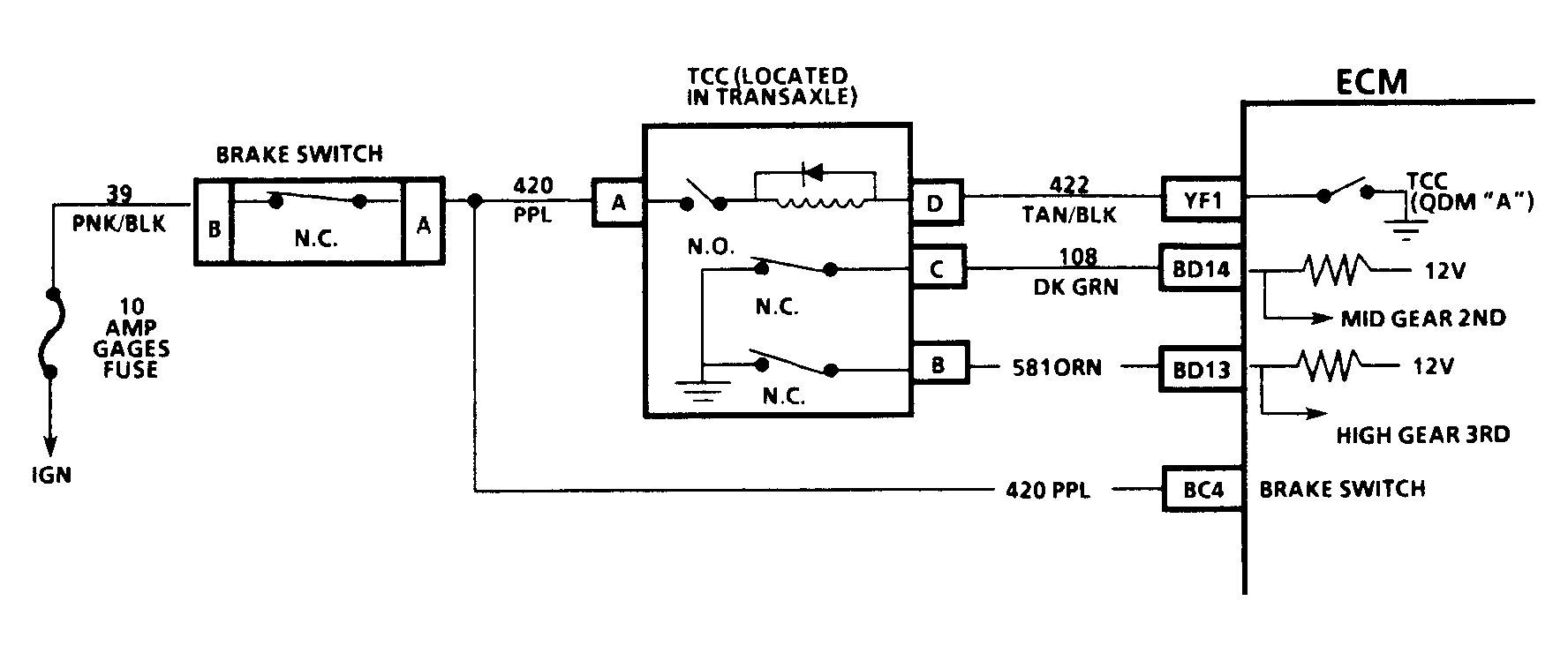

Code 39 will set when no Code 28 is set, brake is not applied, TCC is commanded by ECM, transmission is in high gear and engine speed-to-vehicle speed ration does not indicate TCC has engaged. All these conditions must have been met for more than 15 seconds. See Figure and Figure .

NOTE: Test numbers refer to test numbers on diagnostic chart.
  1. Tests TCC power supply (GAGES fuse) and brake switch.
  2. Test ECM for proper operation.
  3. Tests internal transaxle switches.
