Code 24, Vehicle Speed Sensor (A, F, J, L, N, W & Y Bodies): Notes

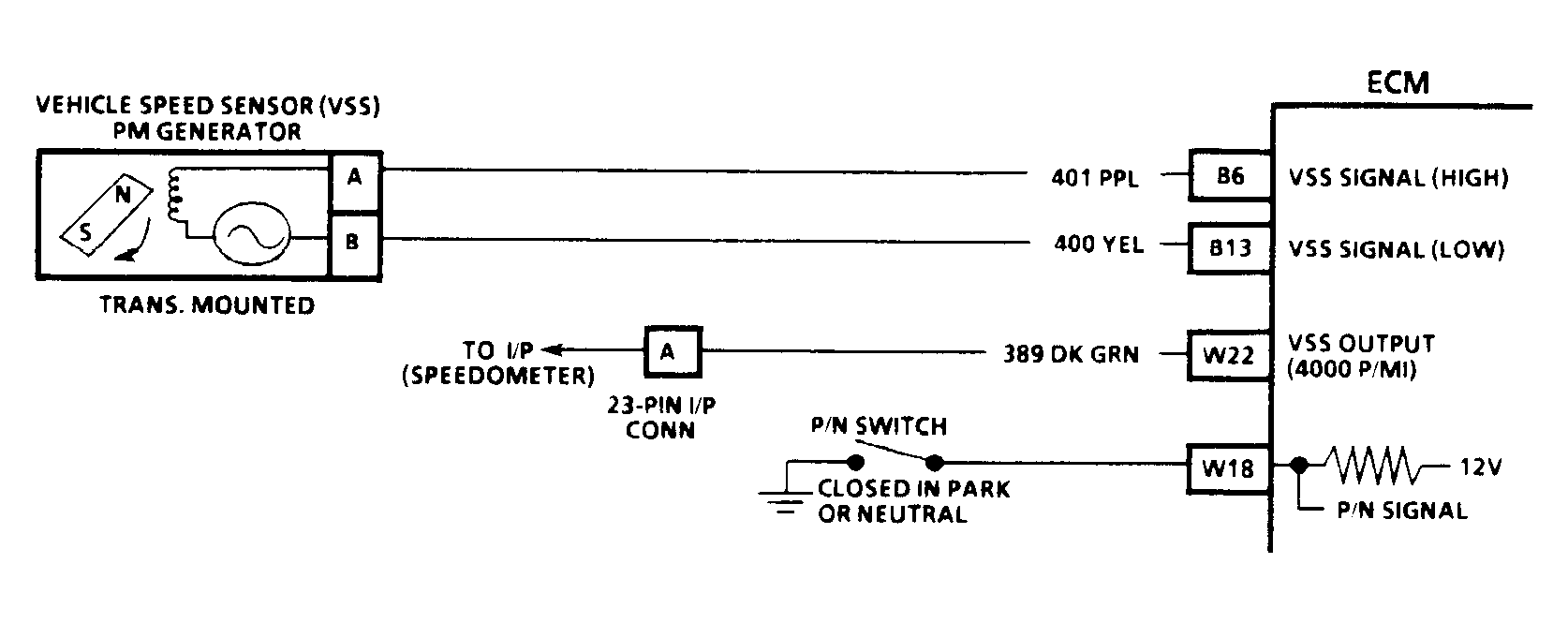

Fig 1: Code 24, VSS Circuit Diagram 1 Of 12 (A, F, J, L, N, W & Y Bodies)
G91G07387Courtesy of GENERAL MOTORS CORP.
Fig 2: Code 24, VSS Circuit Diagram 2 Of 12 (A, F, J, L, N, W & Y Bodies)
G92A04296Courtesy of GENERAL MOTORS CORP.
Fig 3: Code 24, VSS Circuit Diagram 3 Of 12 (A, F, J, L, N, W & Y Bodies)
G92C04297Courtesy of GENERAL MOTORS CORP.

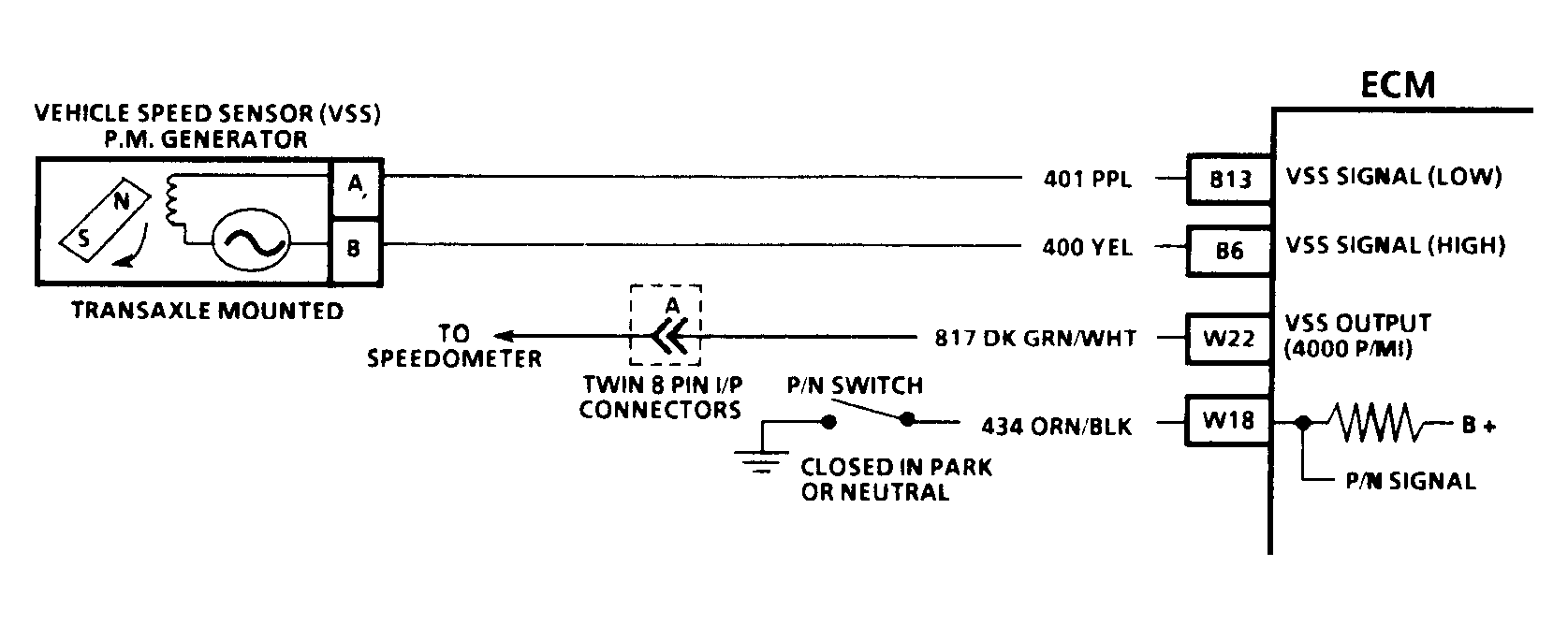

Fig 4: Code 24, VSS Circuit Diagram 4 Of 12 (A, F, J, L, N, W & Y Bodies)
G91I07388Courtesy of GENERAL MOTORS CORP.
Fig 5: Code 24, VSS Circuit Diagram 5 Of 12 (A, F, J, L, N, W & Y Bodies)
G92E04298Courtesy of GENERAL MOTORS CORP.

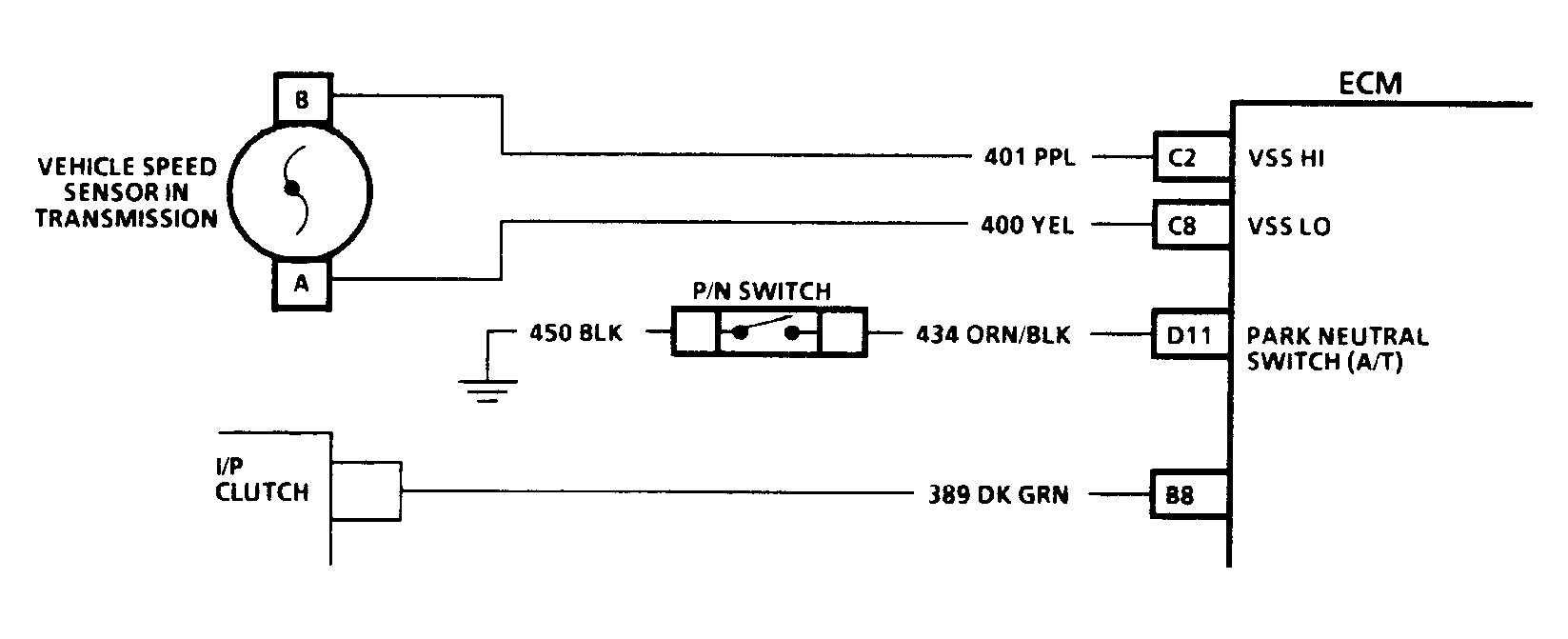

Fig 6: Code 24, VSS Circuit Diagram 6 Of 12 (A, F, J, L, N, W & Y Bodies)
G91A07389Courtesy of GENERAL MOTORS CORP.
Fig 7: Code 24, VSS Circuit Diagram 7 Of 12 (A, F, J, L, N, W & Y Bodies)
G91D07395Courtesy of GENERAL MOTORS CORP.
Fig 8: Code 24, VSS Circuit Diagram 8 Of 12 (A, F, J, L, N, W & Y Bodies)
G91C07390Courtesy of GENERAL MOTORS CORP.

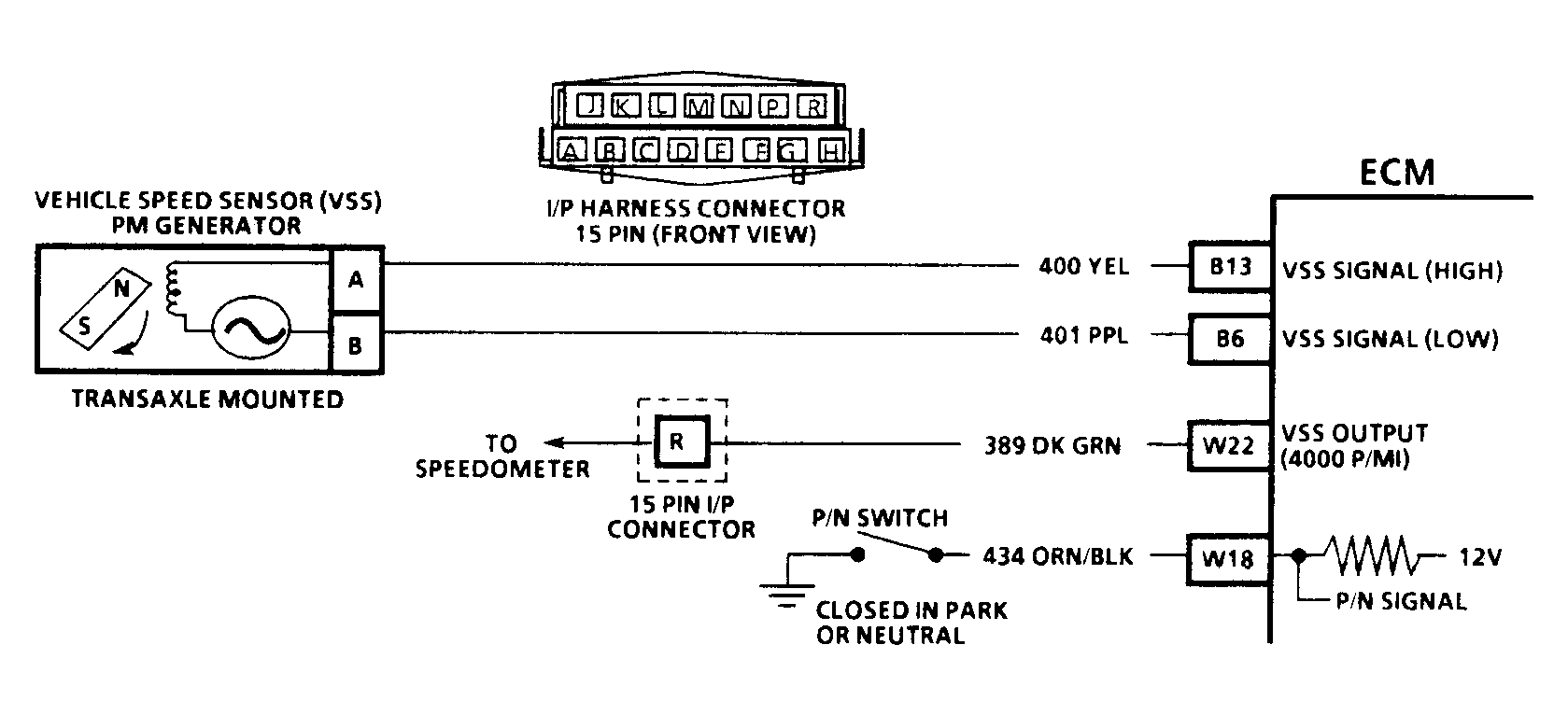

Fig 9: Code 24, VSS Circuit Diagram 9 Of 12 (A, F, J, L, N, W & Y Bodies)
G91E07391Courtesy of GENERAL MOTORS CORP.
Fig 10: Code 24, VSS Circuit Diagram 10 Of 12 (A, F, J, L, N, W & Y Bodies)
G91G07392Courtesy of GENERAL MOTORS CORP.

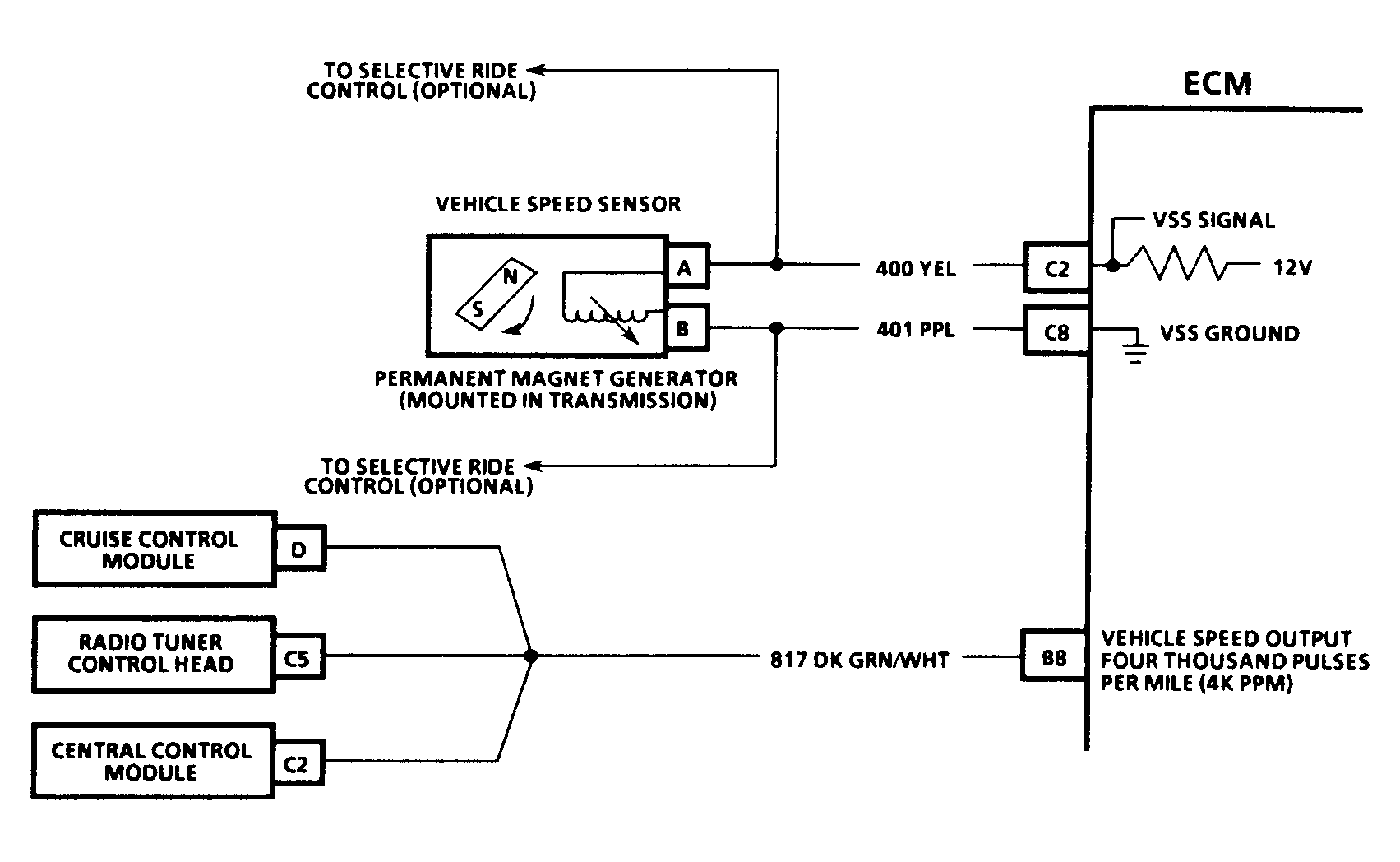

Fig 11: Code 24, VSS Circuit Diagram 11 Of 12 (A, F, J, L, N, W & Y Bodies)
G91I07393Courtesy of GENERAL MOTORS CORP.

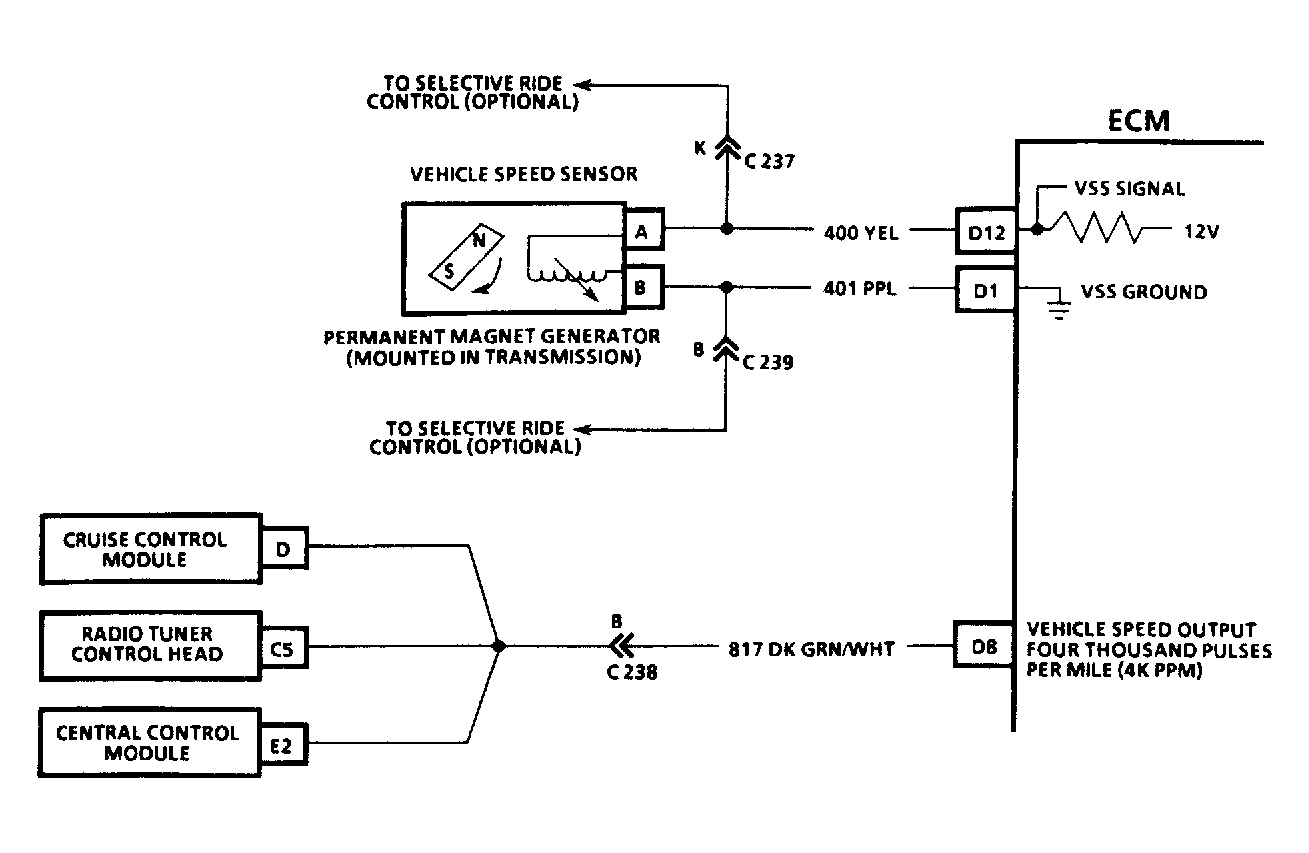

Fig 12: Code 24, VSS Circuit Diagram 12 Of 12 (A, F, J, L, N, W & Y Bodies)
G92A04300Courtesy of GENERAL MOTORS CORP.

The speed sensor, which is a Permanent Magnet (PM) generator, provides the control module with vehicle speed information. The PM generator, mounted on the transmission, produces a pulsing voltage signal whenever the vehicle speed is more than 3 MPH. The voltage level and pulses increase with vehicle speed. The control module converts the pulsing voltage to MPH, which is used by the control module in calculations to determine vehicle adjustments.

NOTE: Test numbers refer to test numbers on diagnostic chart.
  1. A Code 24 will set when MPH reads zero, transmission is not in Park or Neutral, engine speed indicates vehicle is in a cruise mode (1200-4400) RPM, TPS indicates closed throttle and high manifold vacuum is sensed by the MAP sensor. All of these conditions must be met for 2-5 seconds. The PM generator only produces a voltage signal if drive wheels are turning greater than 3 MPH.
  2. Before replacing the control module, PROM/MEM-CAL should be checked for correct application.
