Code 73, Force Motor Current (Current Error) - LT. Truck
>>
Diagnostic Aids
Diagnostic Aids
Check for poor connections at PCM/TCM and transmission pass-thru connector.

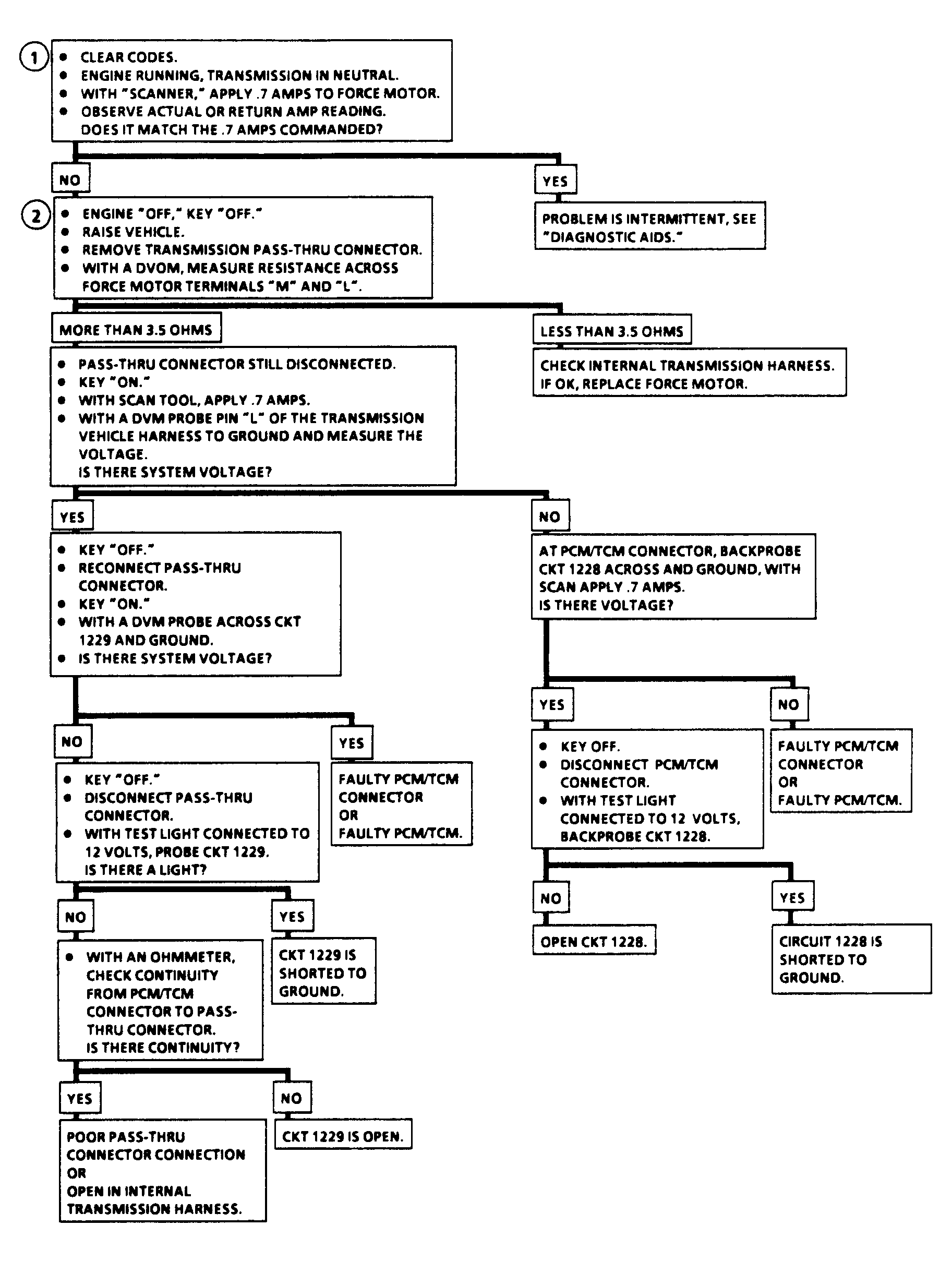

Fig 1: Code 73, Force Motor Current Troubleshooting Chart (Lt. Truck)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
