Diagnostic Aids

Check all electrical connectors, especially at transmission pass-through connector.

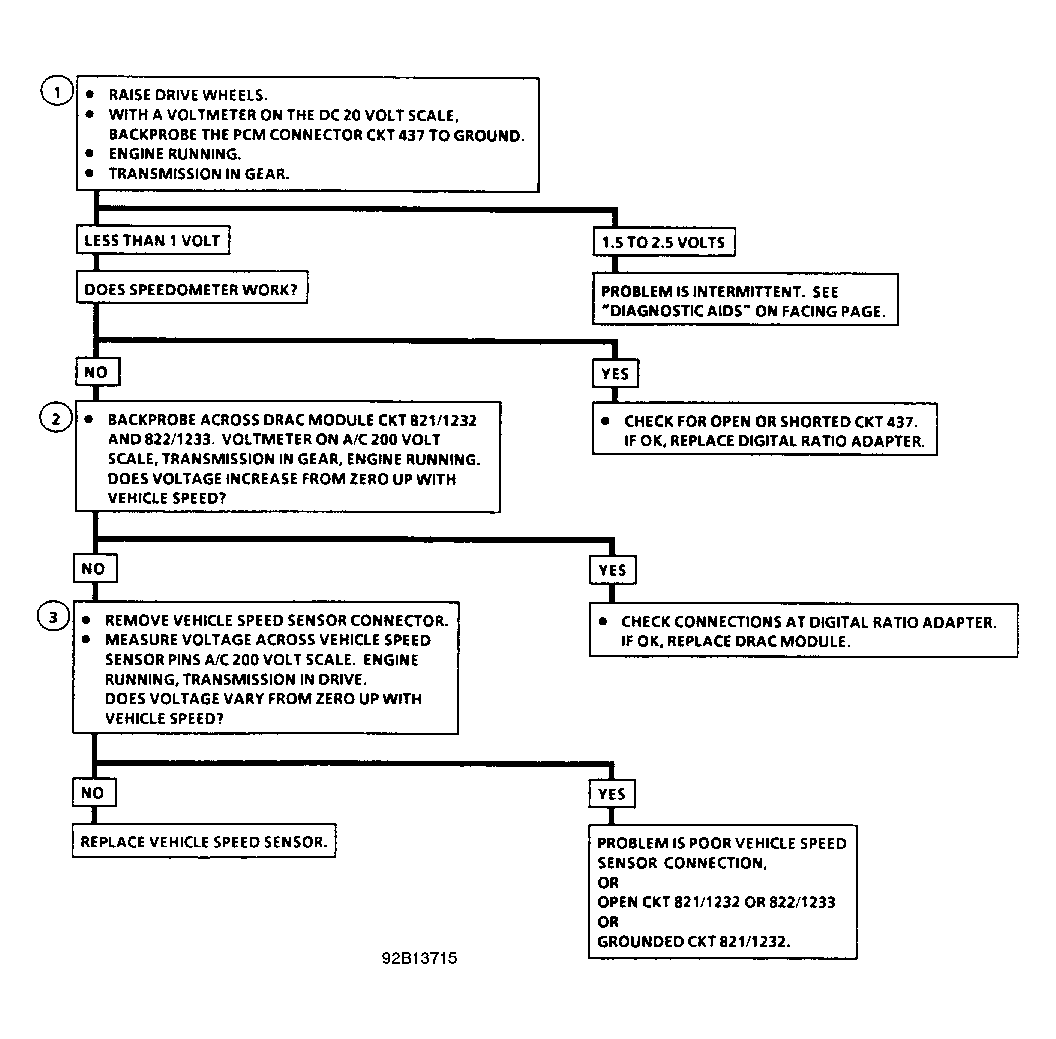

Fig 1: Code 24, VSS Troubleshooting Chart (1992 W/4L80-E Transmission)
G92B13715Courtesy of GENERAL MOTORS CORP.
