Diagnostic Aids

Check all electrical connections, especially at transmission pass-through connector.

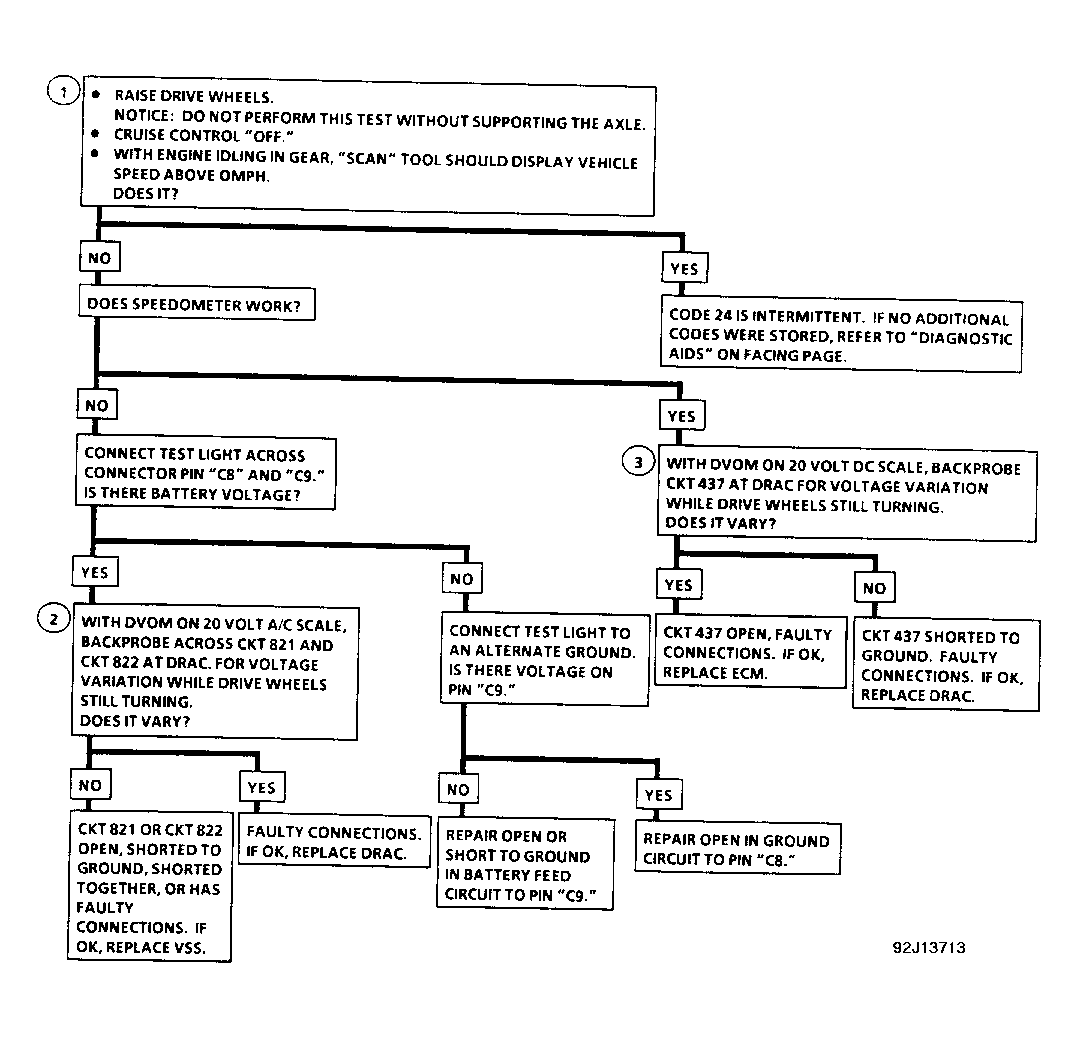

Fig 1: Code 24, VSS Troubleshooting Chart (1992 Except 4L80-E Transmission)
G92J13713Courtesy of GENERAL MOTORS CORP.
