Input Speed Sensor Circuit Check - LT. Truck
>>
Diagnostic Aids
Diagnostic Aids
Check all connections, especially those at the transmission pass-through connector.

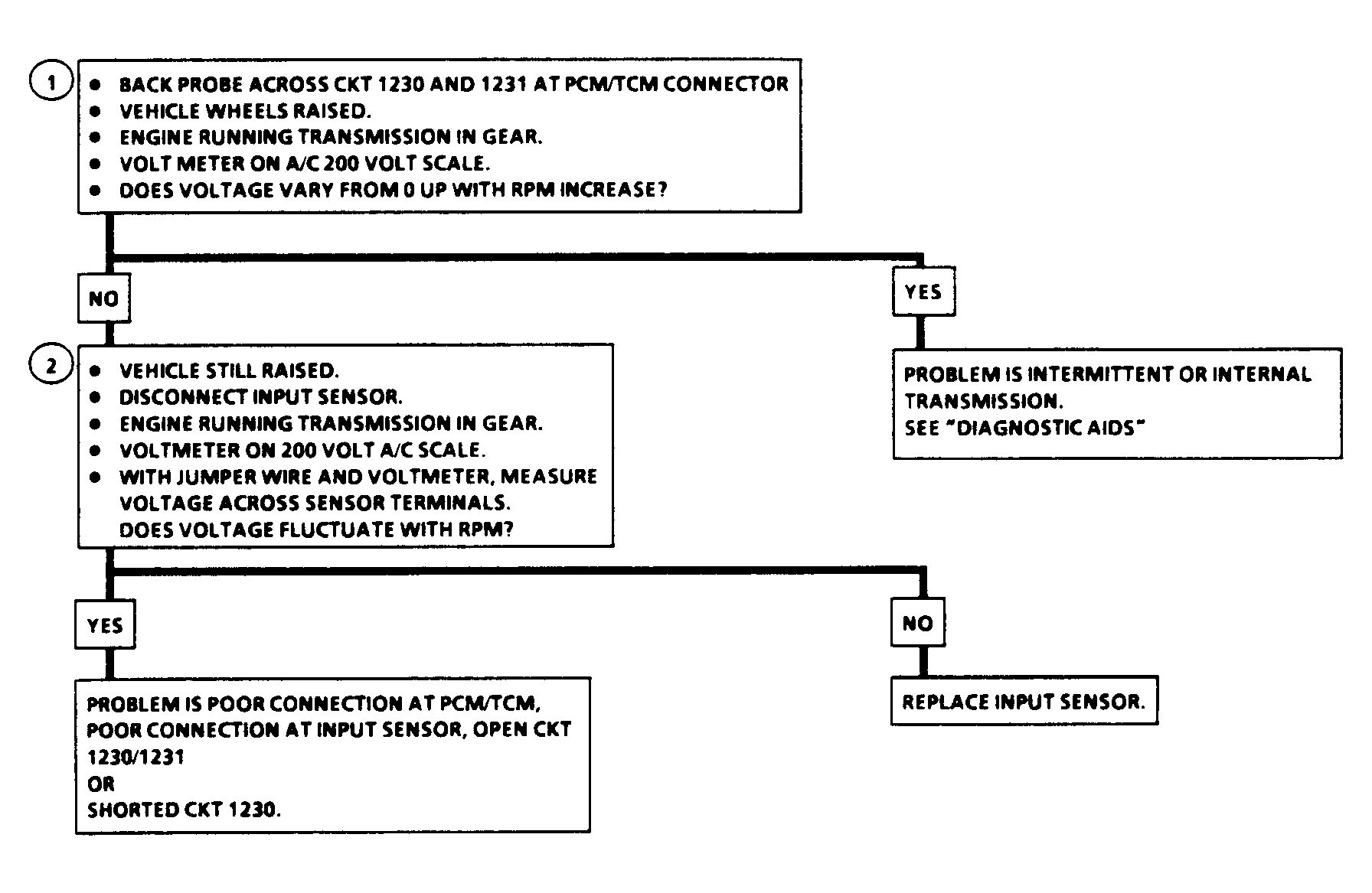

Fig 1: Input Speed Sensor Troubleshooting Chart (Lt. Truck)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
