Wiring Diagrams

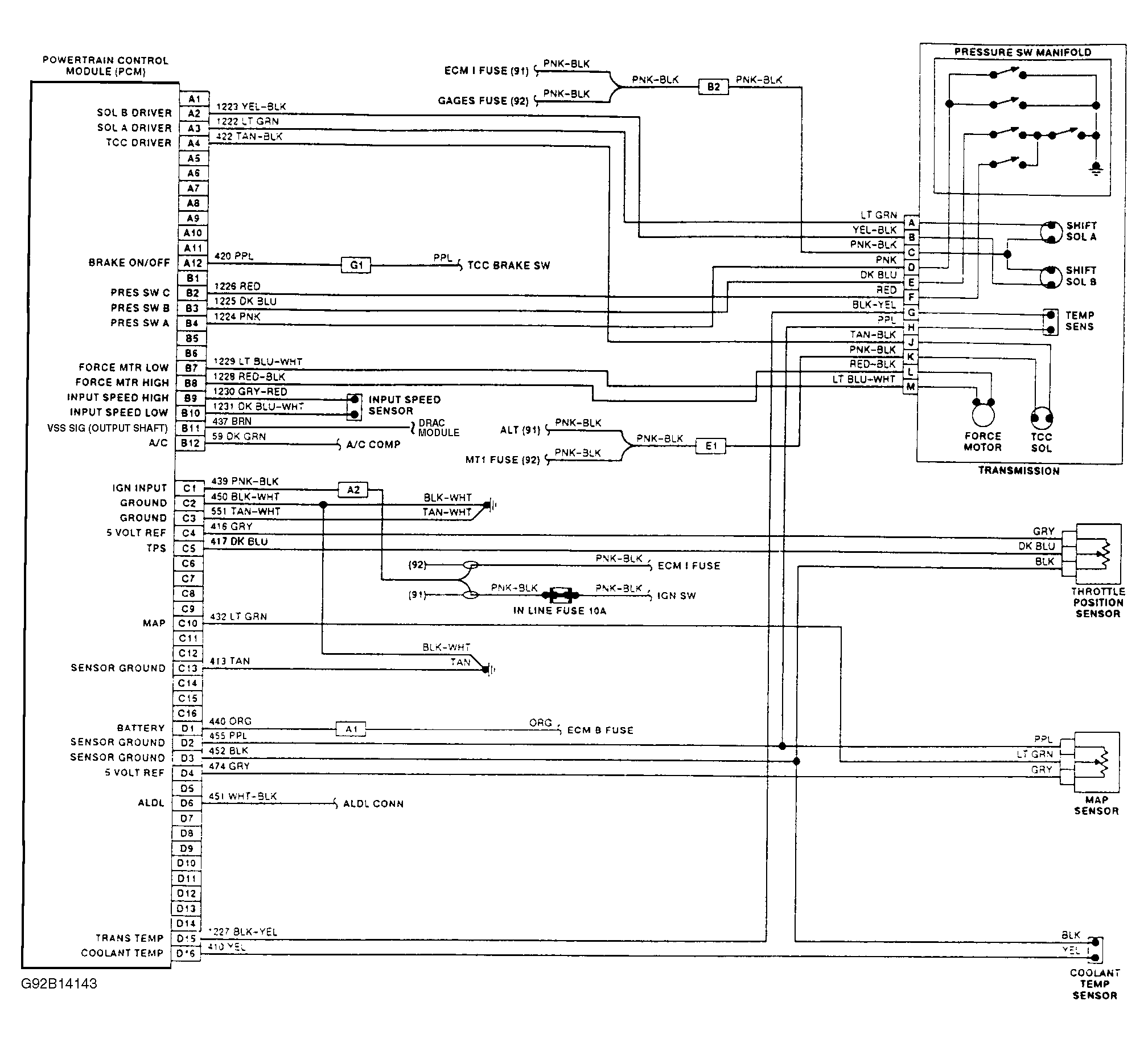

Fig 1: Wiring Diagram ("C" & "K" Series - Gasoline Engine)

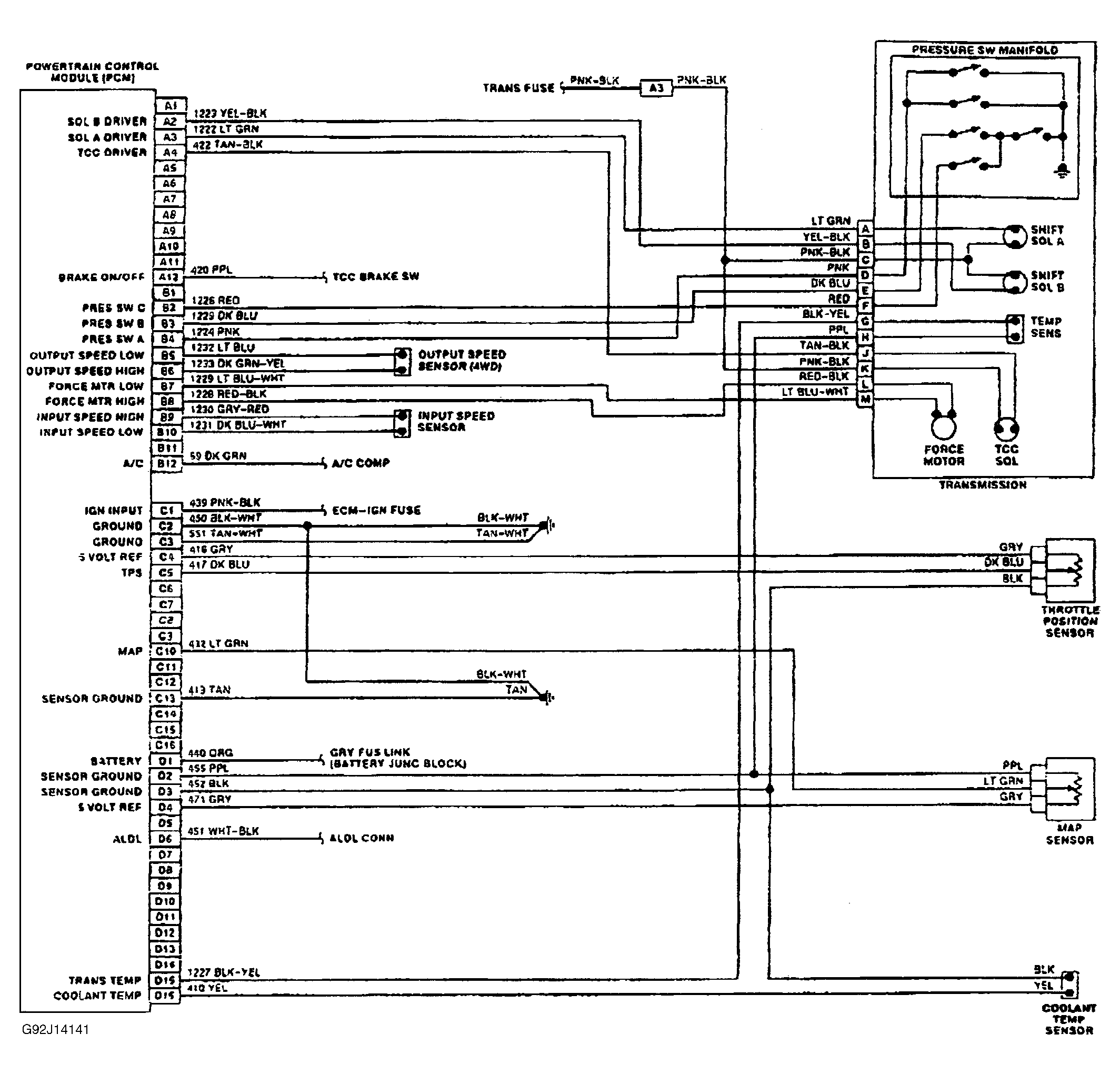

Fig 2: Wiring Diagram ("C" & "K" Series - Diesel Engine)

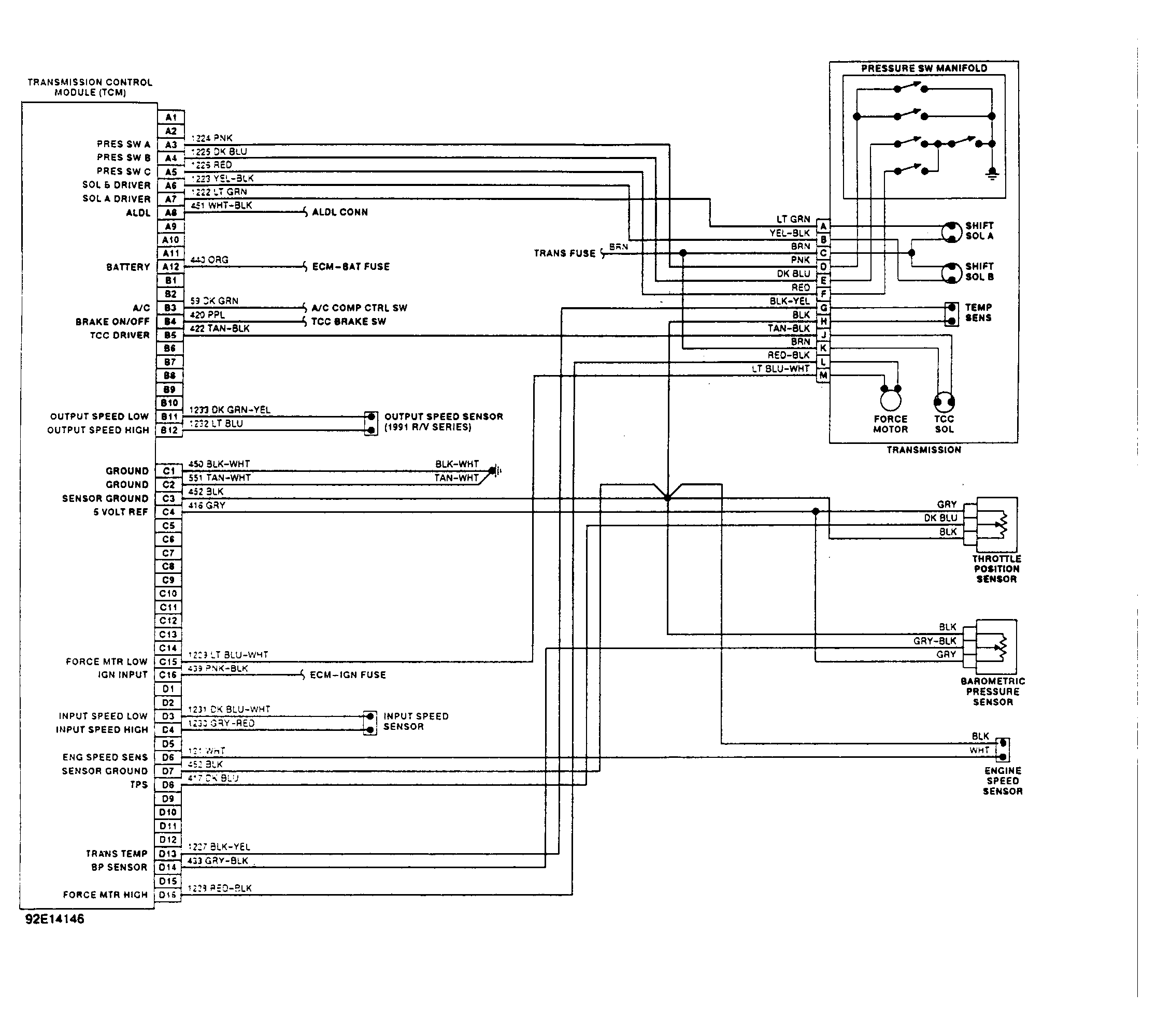

Fig 3: Wiring Diagram ("G" Series - Gasoline Engine)

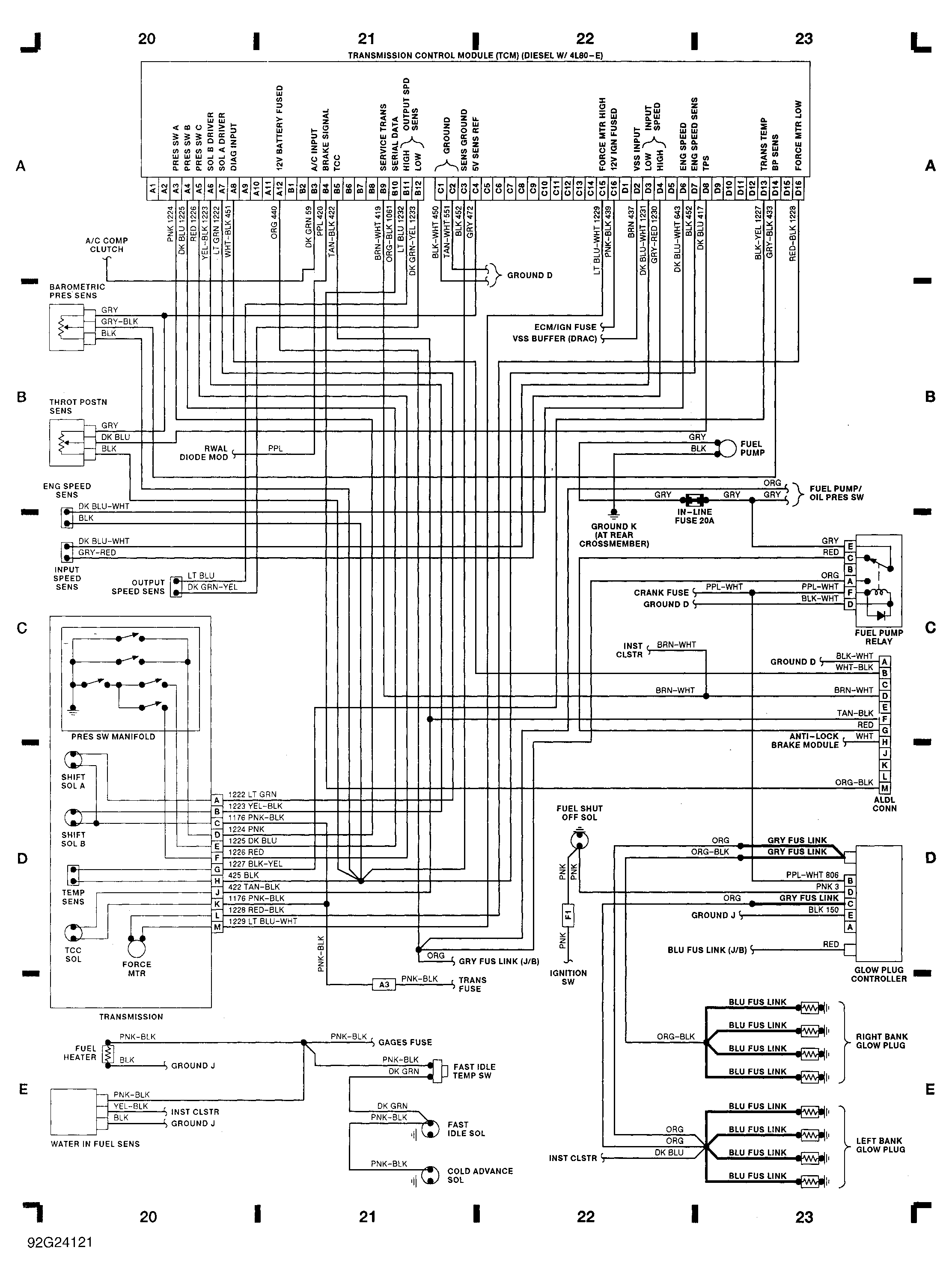

Fig 4: Wiring Diagram ("G" Series - Diesel Engine)

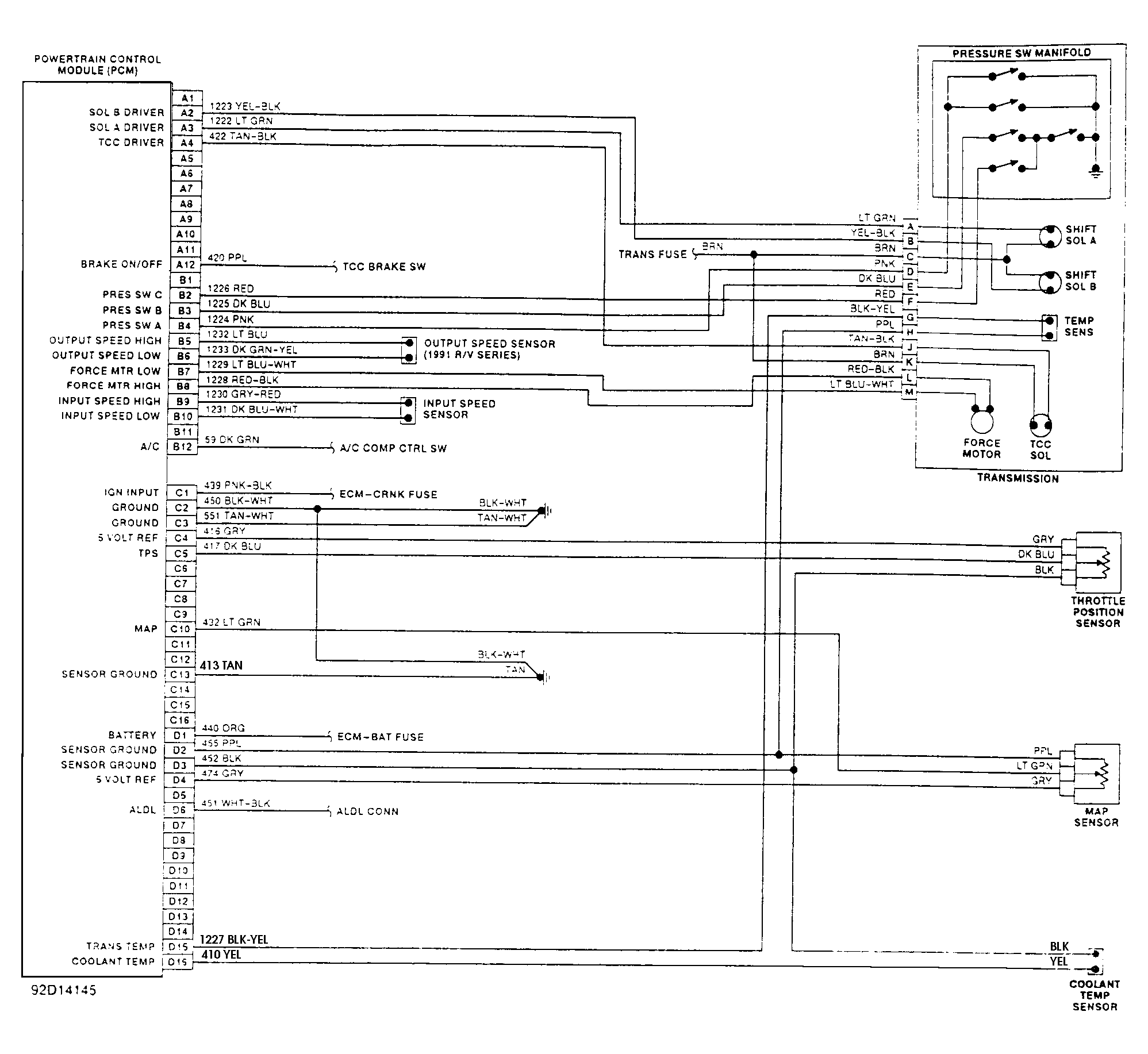

Fig 5: Wiring Diagram ("R", "P" & "V" Series - Gasoline Engine)

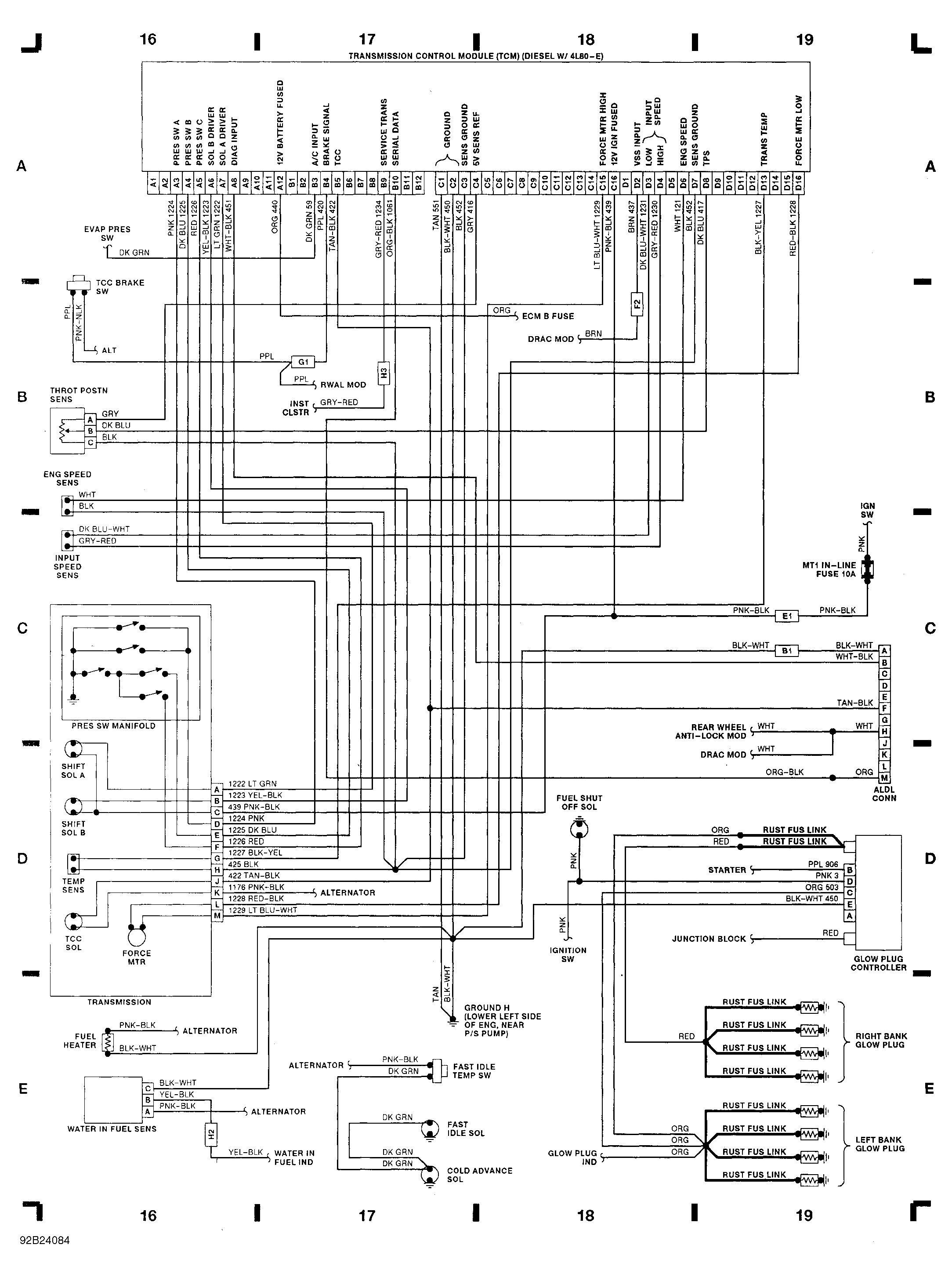

Fig 6: Wiring Diagram ("R", "P" & "V" Series - Diesel Engine)
