Code 85 - Undefined Ratio: Notes

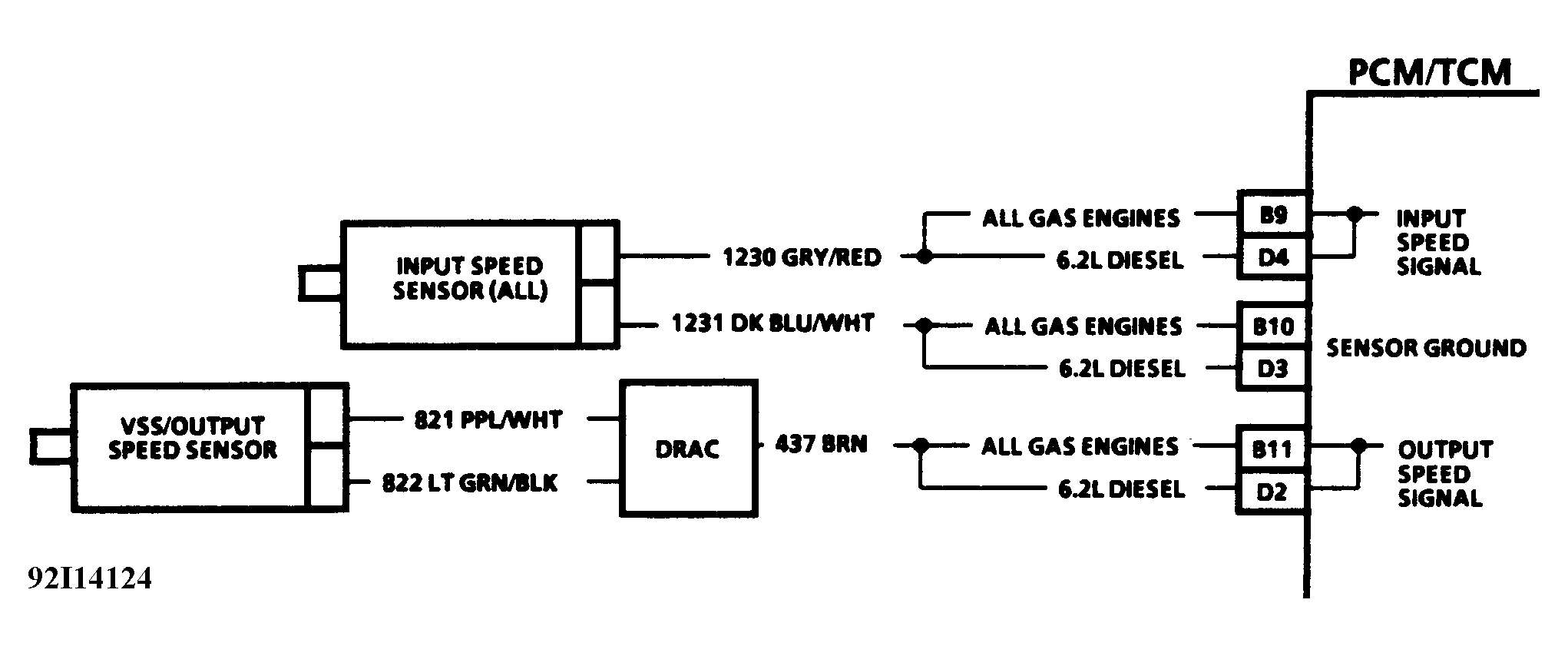

Fig 1: Code 85 Circuit Diagram
G92I14124Courtesy of GENERAL MOTORS CORP.

PCM/TCM compares input and output speed sensor values of transmission in each gear to acceptable values in PCM/TCM memory. If PCM/TCM senses sensor values are not within acceptable range, Code 85 will be set. This process takes place in all gears except Overdrive.

NOTE: Test numbers refer to numbers on diagnostic chart.
  1. This step checks operation of input sensor.
  2. This step checks operation of output sensor.
