Code 39 - TCC Circuit: Notes

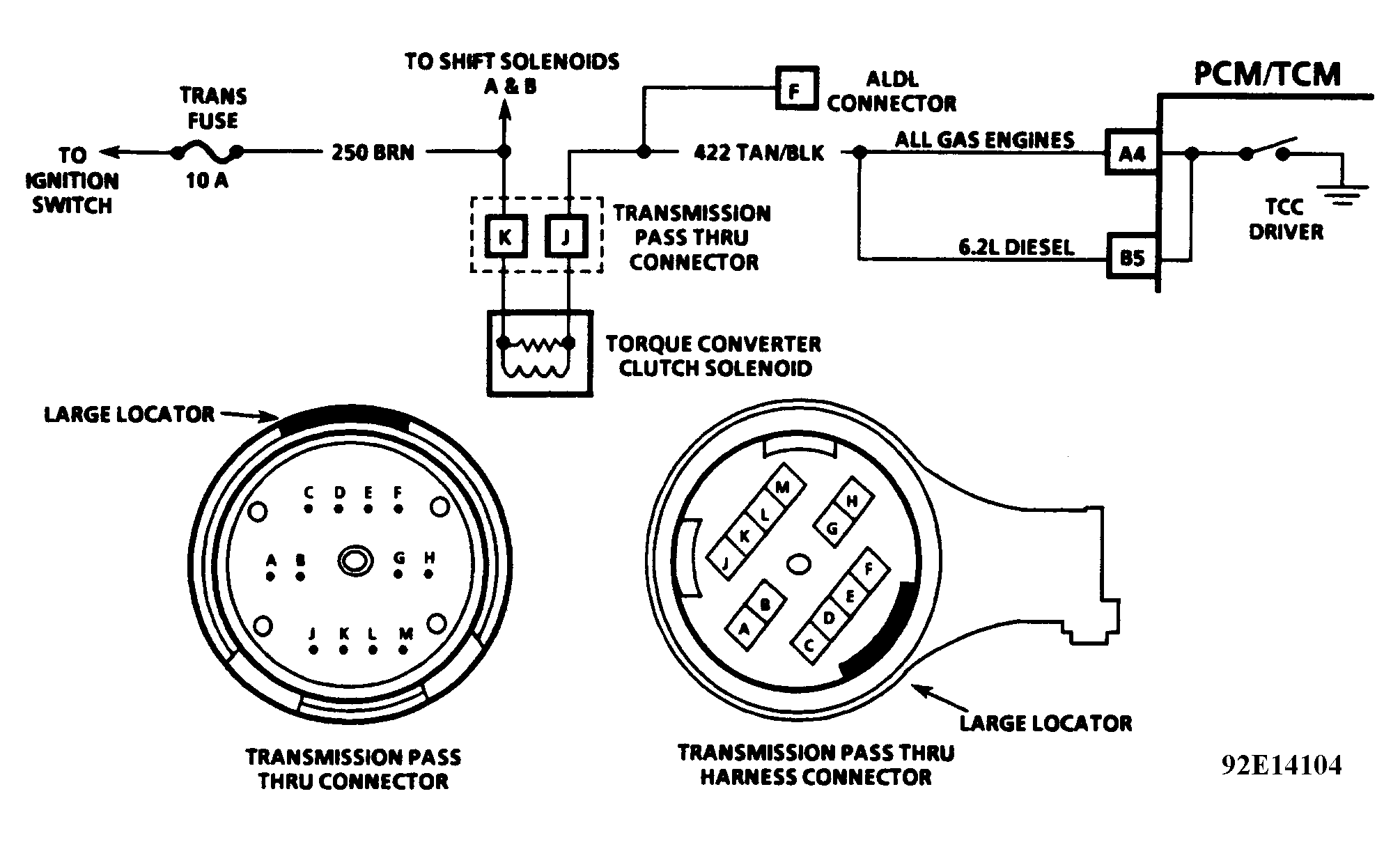

Fig 1: TCC Circuit Diagram
G92E14104Courtesy of GENERAL MOTORS CORP.

Code 39 will set when TCC is commanded by PCM/TCM, transmission is in high gear, engine speed-to-vehicle speed ratio does not indicate TCC has engaged and 2nd or 3rd gear is indicated. All these conditions must be met for more than 2 seconds.

NOTE: Test numbers refer to test numbers on diagnostic chart.
  1. This step tests for poor connection at transmission pass-through connector.
  2. This step tests for power to transmission pass-through connector.
  3. This step tests for PCM/TCM control of TCC.
