Shift Solenoid "A" Circuit: Notes

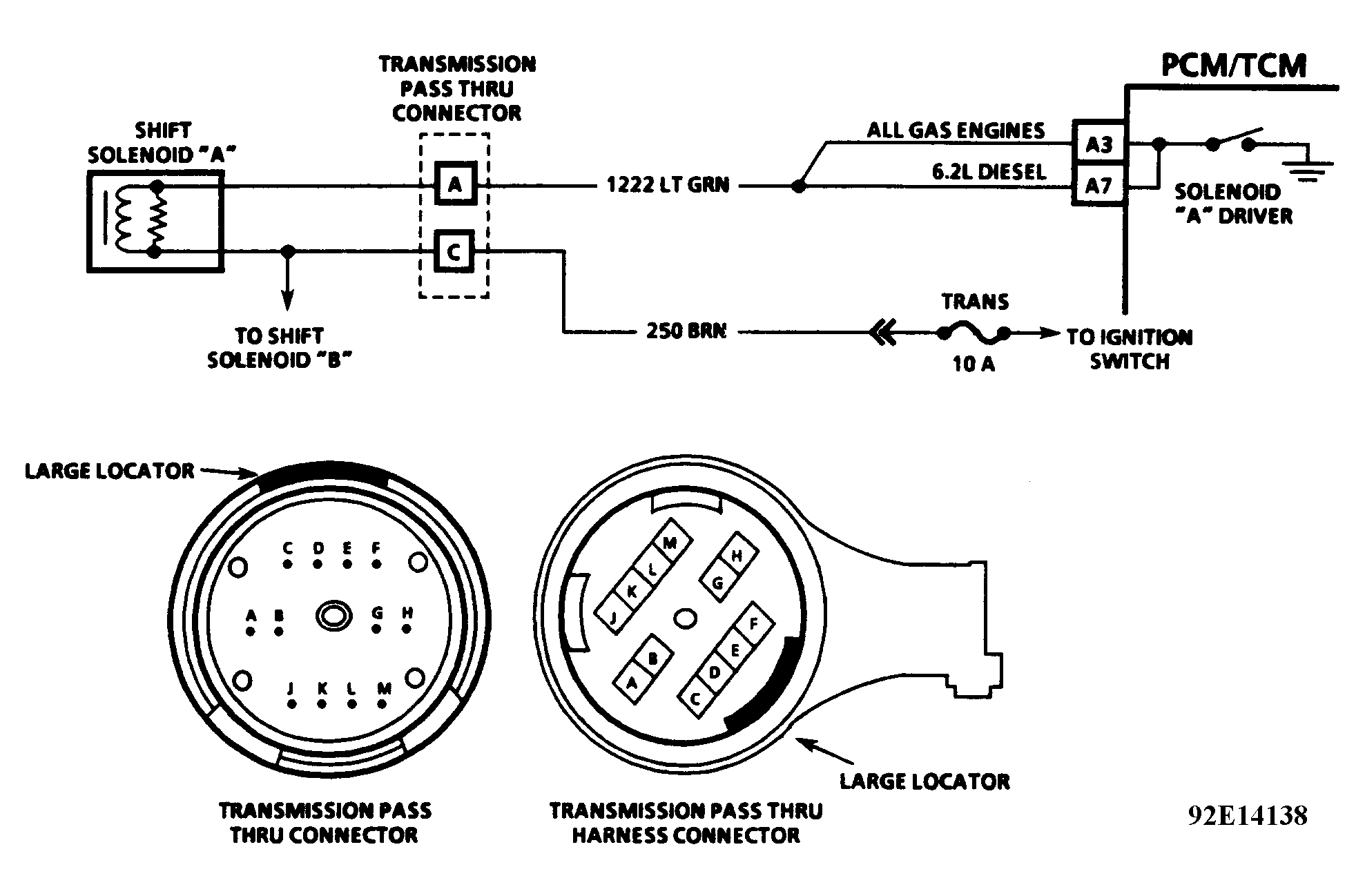

Fig 1: Shift Solenoid "A" Circuit Diagram

Courtesy of GENERAL MOTORS CORP.

PCM/TCM turns on solenoid "A" during 1st and 4th gear operation. Solenoid "A" is off during 2nd and 3rd gear operation.

1. This step checks shift solenoid "A" and circuits inside transmission for shorts.
2. Battery voltage should be present at shift solenoid "A".
3. This step checks circuit 1222 for short to ground.
4. This step checks if PCM/TCM can control solenoid "A".
