Diagnostic Aids

Ensure all connectors are good. Very carefully check the pass-through connector at transmission. If input sensor is not working at start-up, output sensor will read zero.

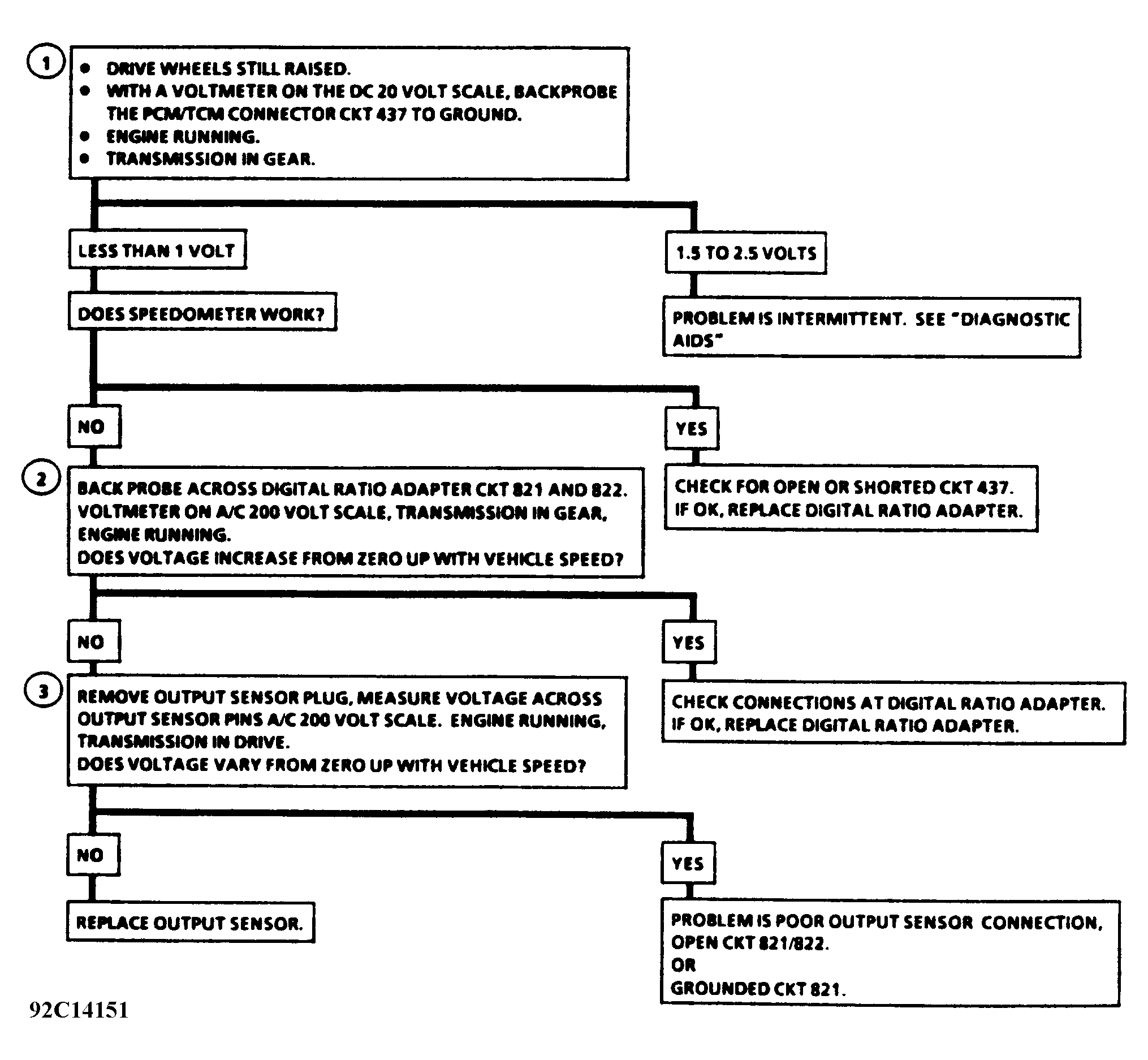

Fig 1: Output Speed Sensor Diagnostic Flow Chart (1991 2WD - Except "C" & "K" Series)
G92C14151Courtesy of GENERAL MOTORS CORP.
