Test 6A - Passenger-Side Squib Open

WARNING: This page is about a different car, the 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

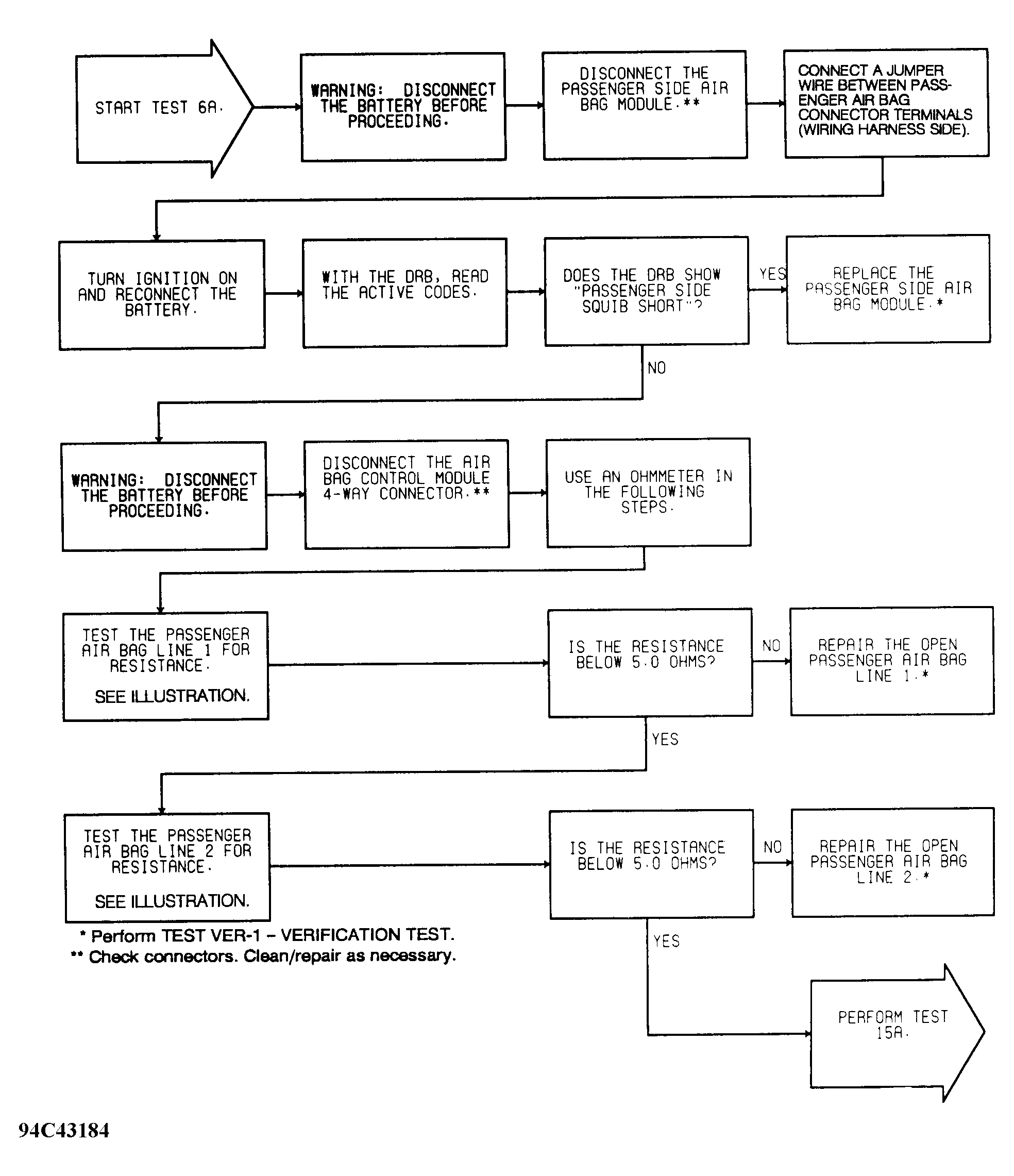

Fig 1: Test 6A - Passenger-Side Squib Open
G94C43184Courtesy of CHRYSLER CORP.
