Test 5A - Driver-Side Squib Open

WARNING: This page is about a different car, the 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

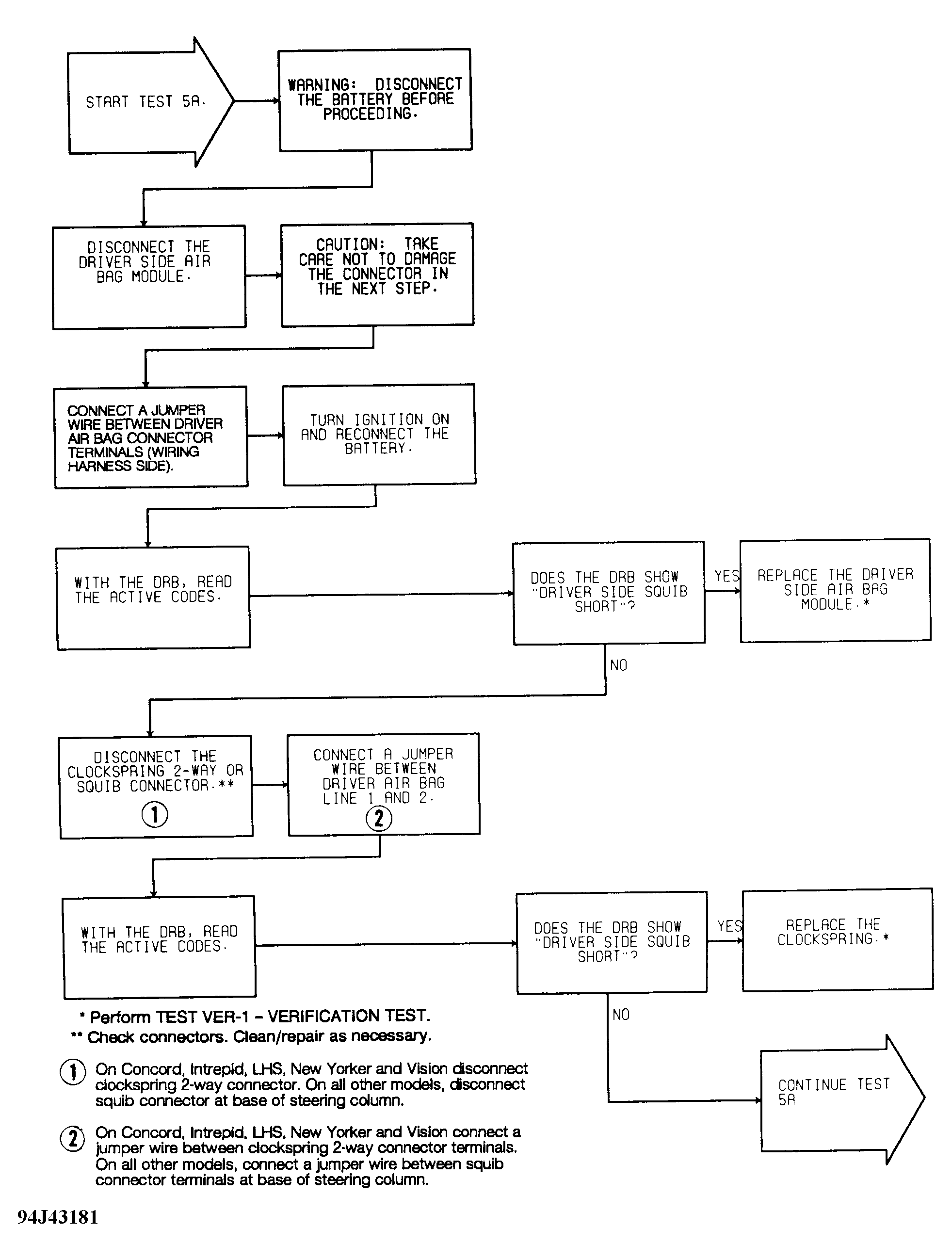

Fig 1: Test 5A - Driver-Side Squib Open (1 Of 2)

Courtesy of CHRYSLER CORP.

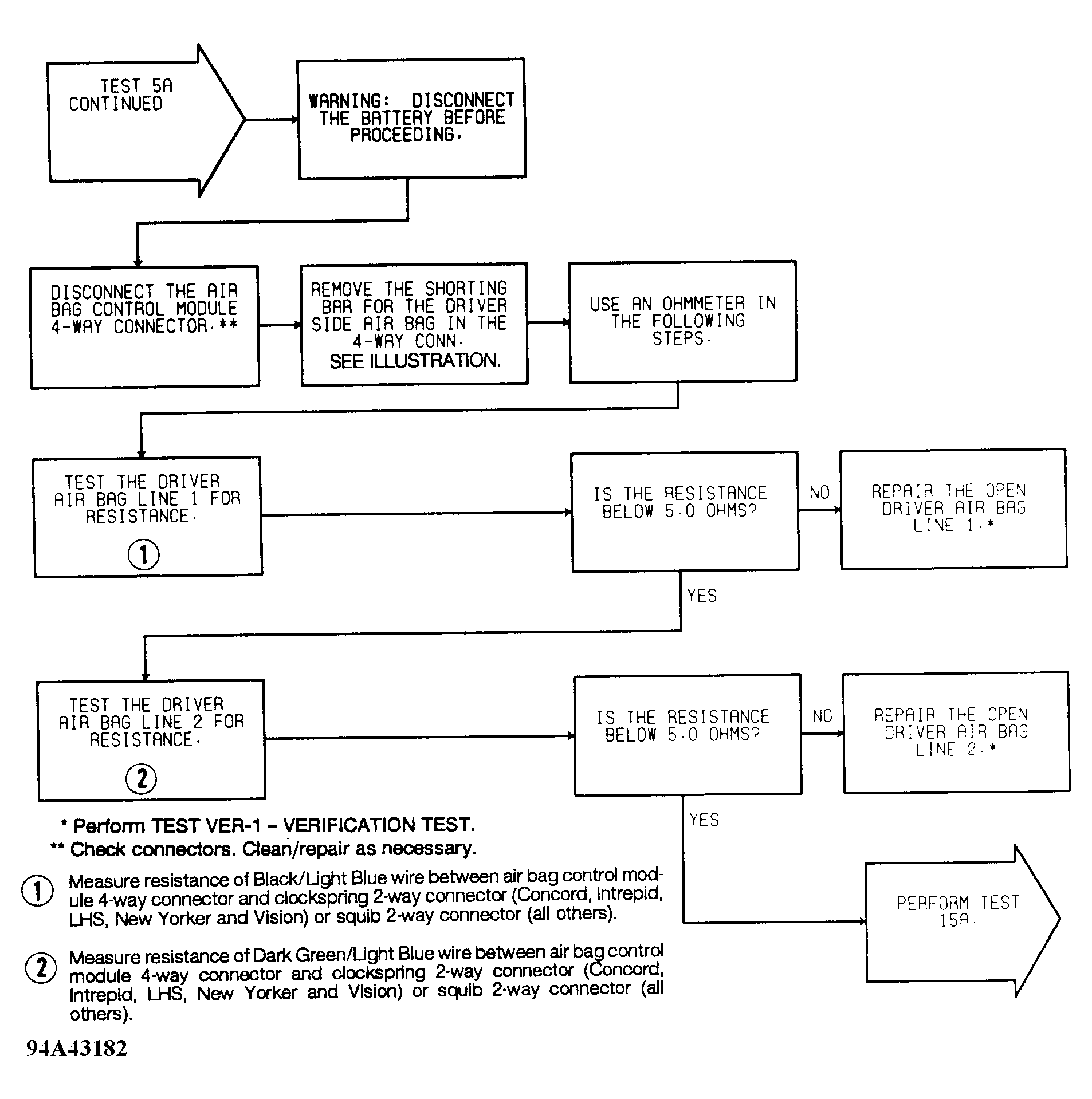

Fig 2: Test 5A - Driver-Side Squib Open (2 Of 2)

Courtesy of CHRYSLER CORP.
