Test 3A - No Ignition Run Only

WARNING: This page is about a different car, the 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

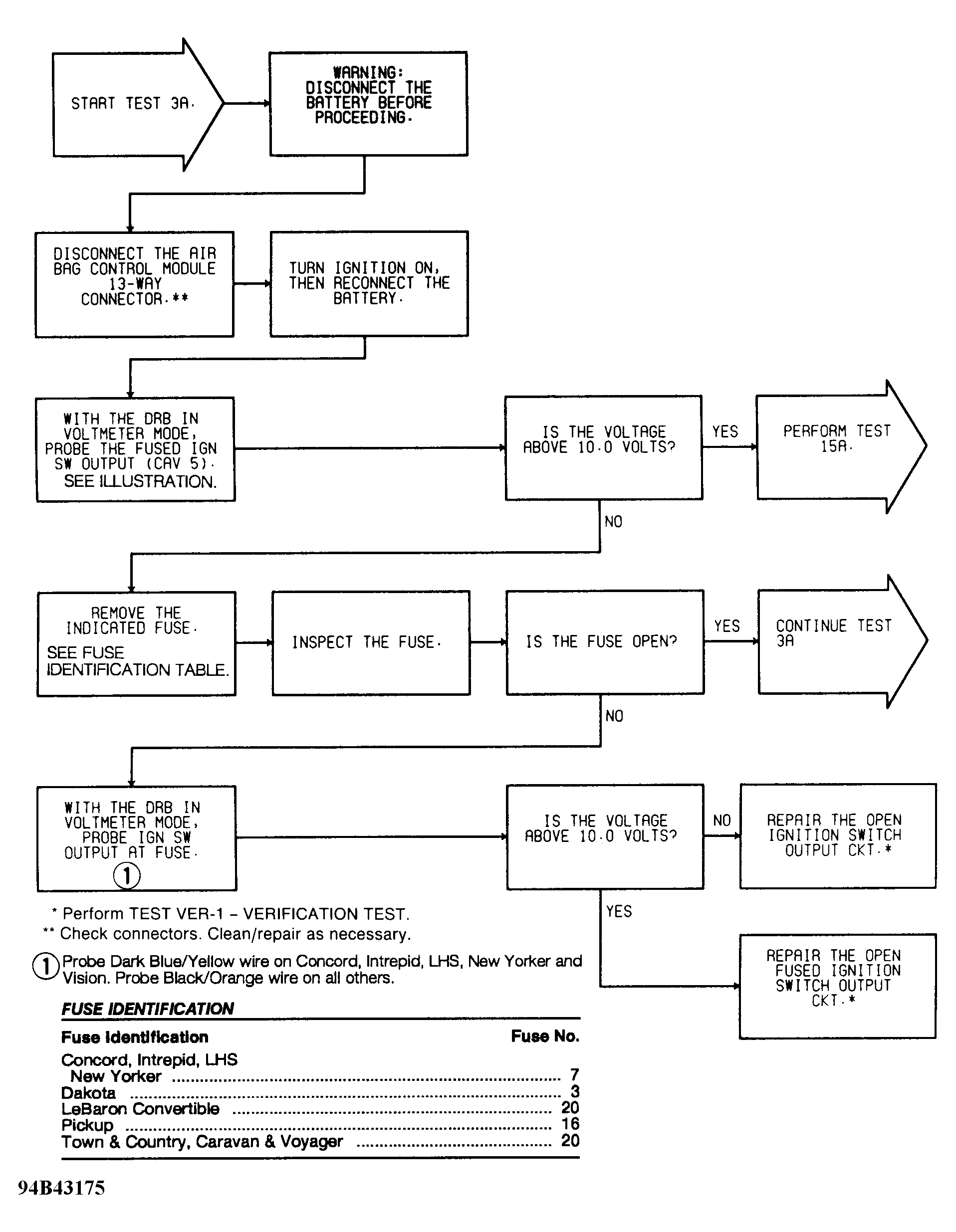

Fig 1: Test 3A - No Ignition Run Only (1 Of 2)

Courtesy of CHRYSLER CORP.

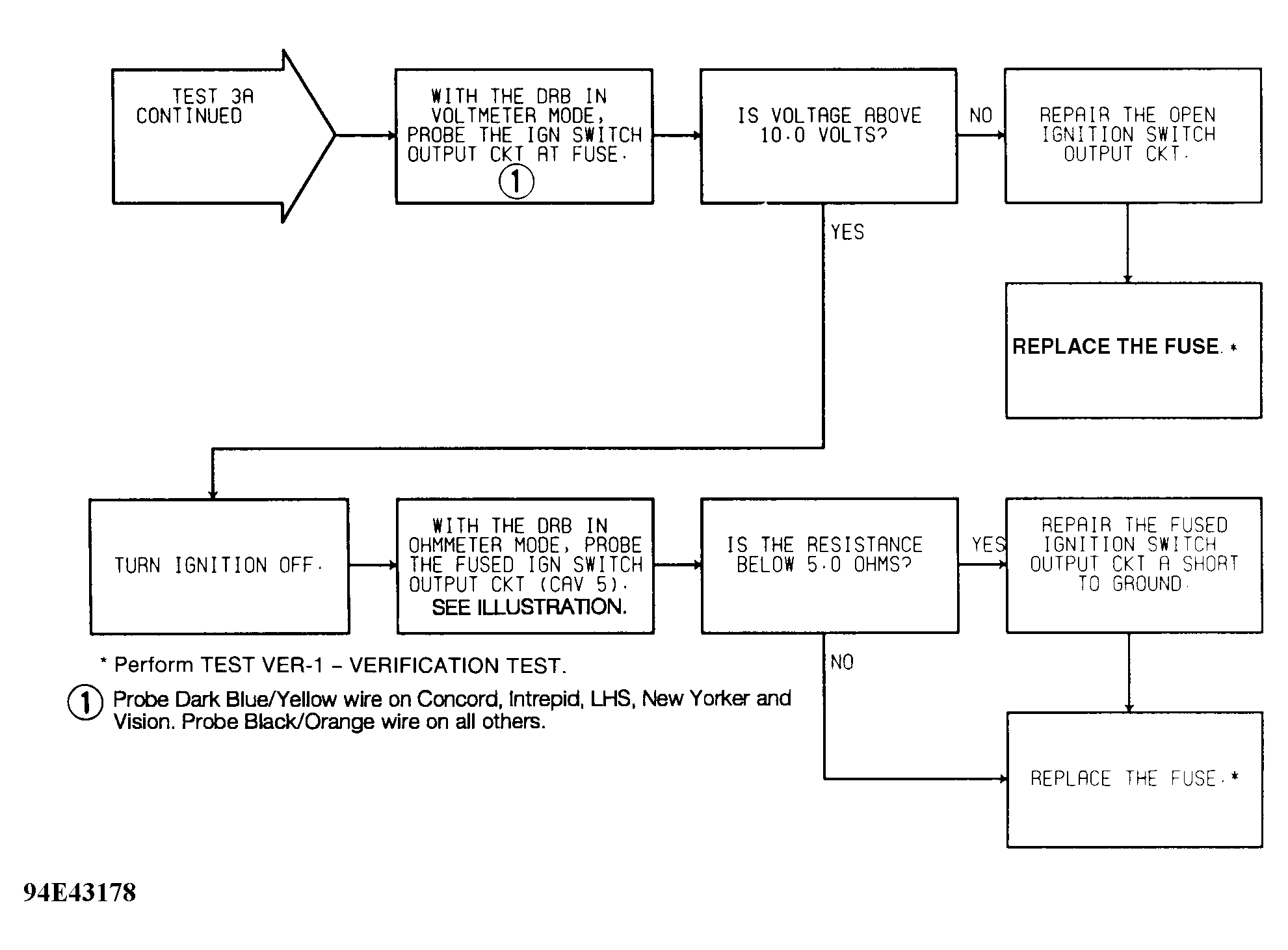

Fig 2: Test 3A - No Ignition Run Only (2 Of 2)

Courtesy of CHRYSLER CORP.
