Test 2A - Air Bag Codes

WARNING: This page is about a different car, the 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

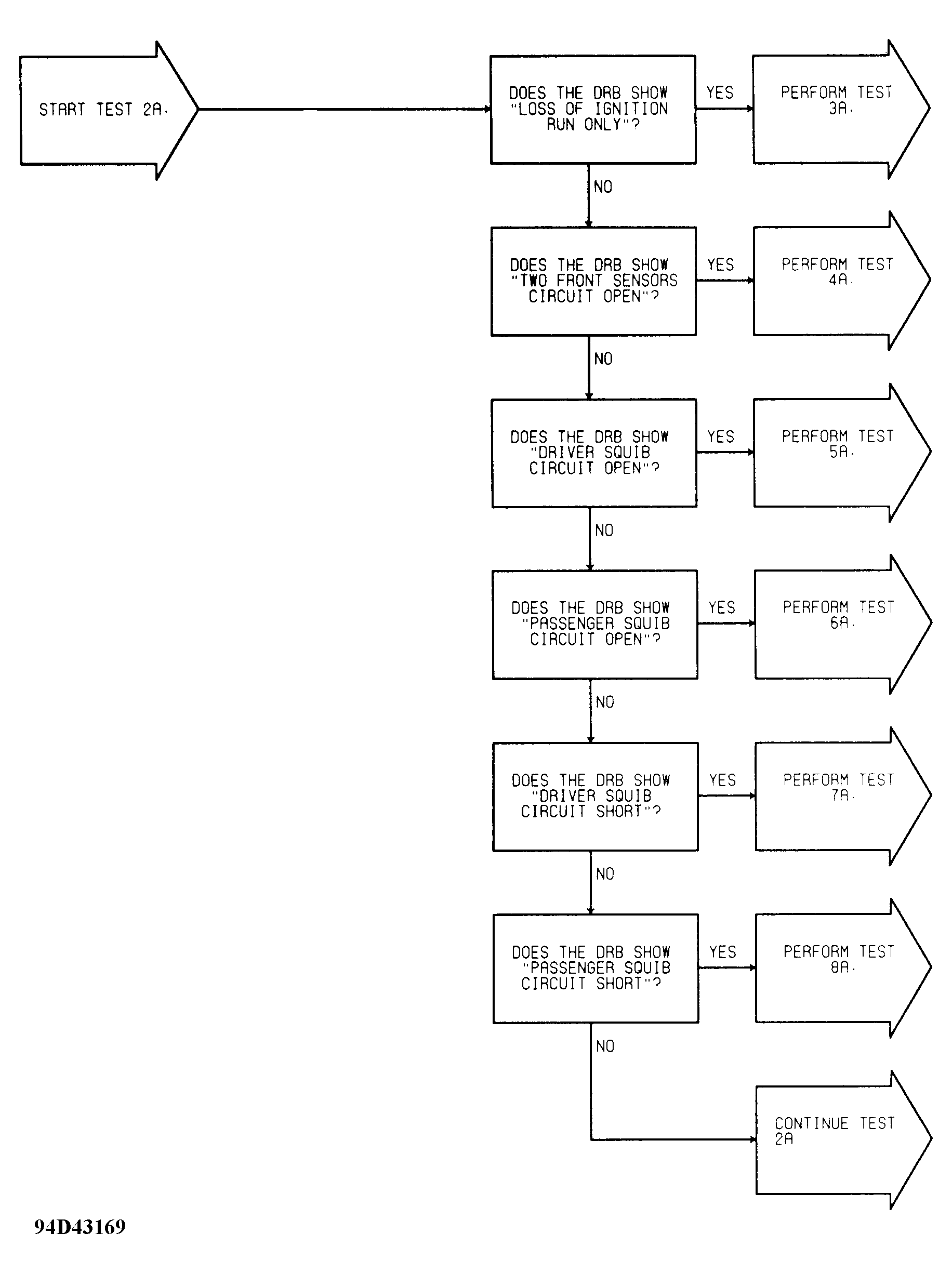

Fig 1: Test 2A - Air Bag Codes (1 Of 5)

Courtesy of CHRYSLER CORP.

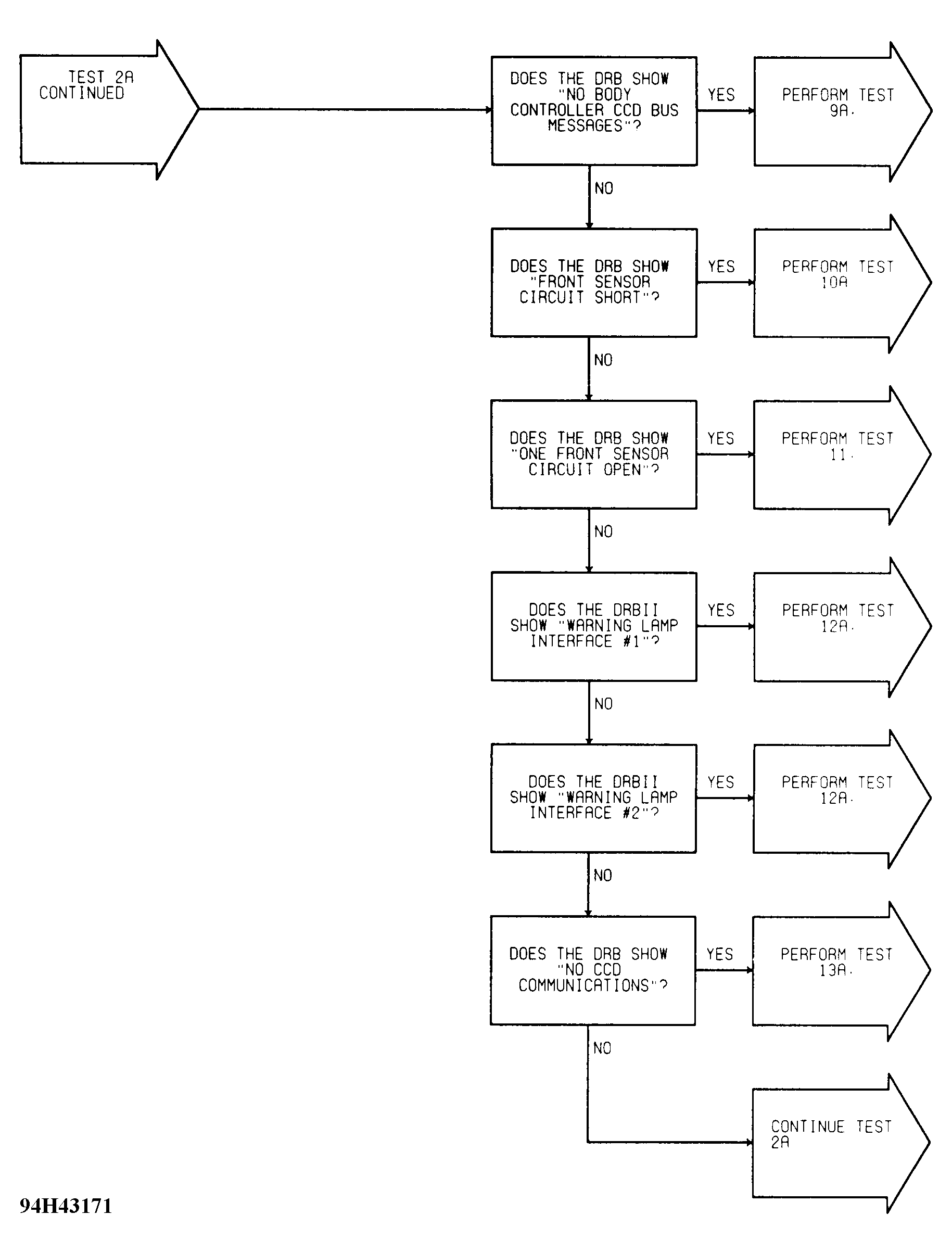

Fig 2: Test 2A - Air Bag Codes (2 Of 5)

Courtesy of CHRYSLER CORP.

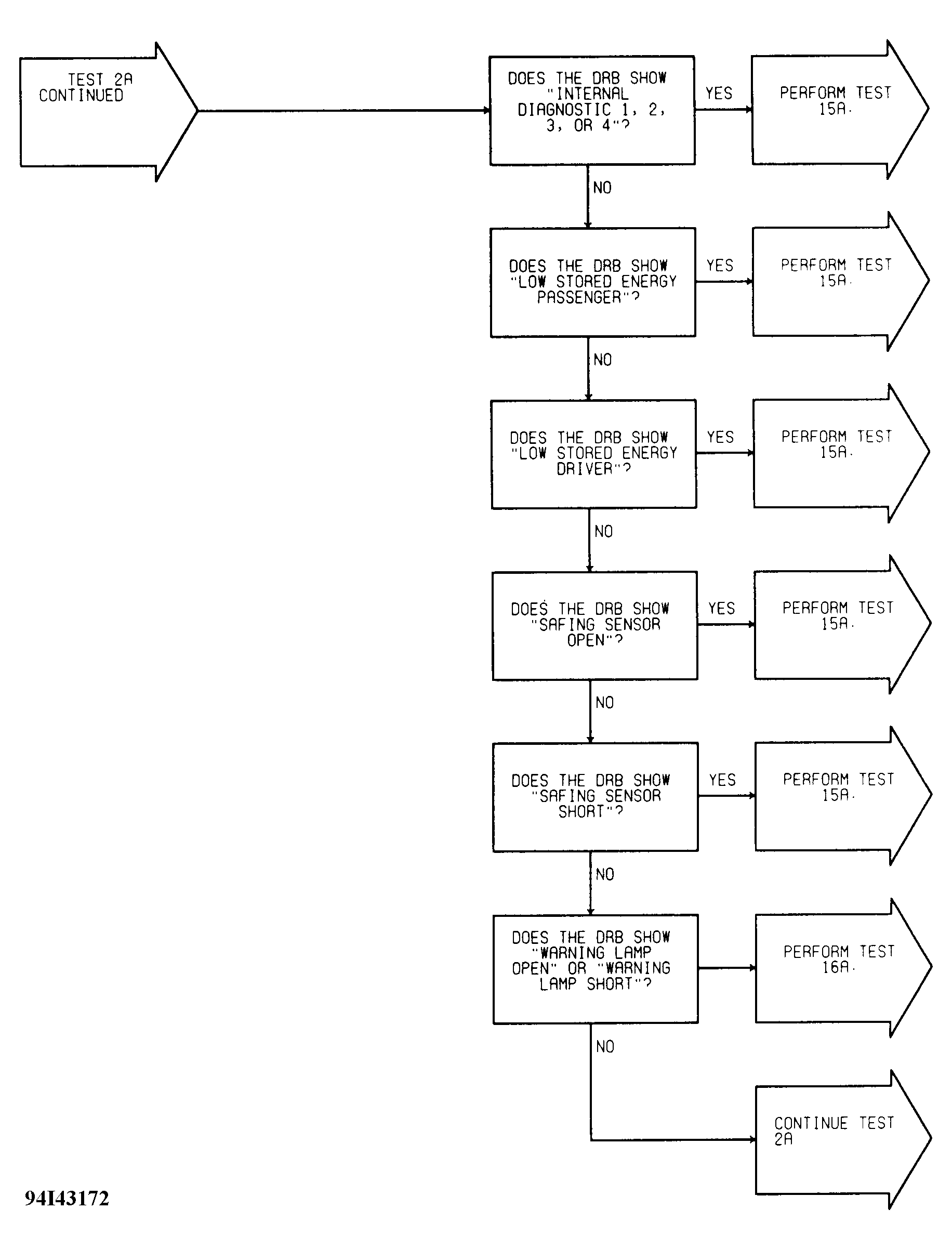

Fig 3: Test 2A - Air Bag Codes (3 Of 5)

Courtesy of CHRYSLER CORP.

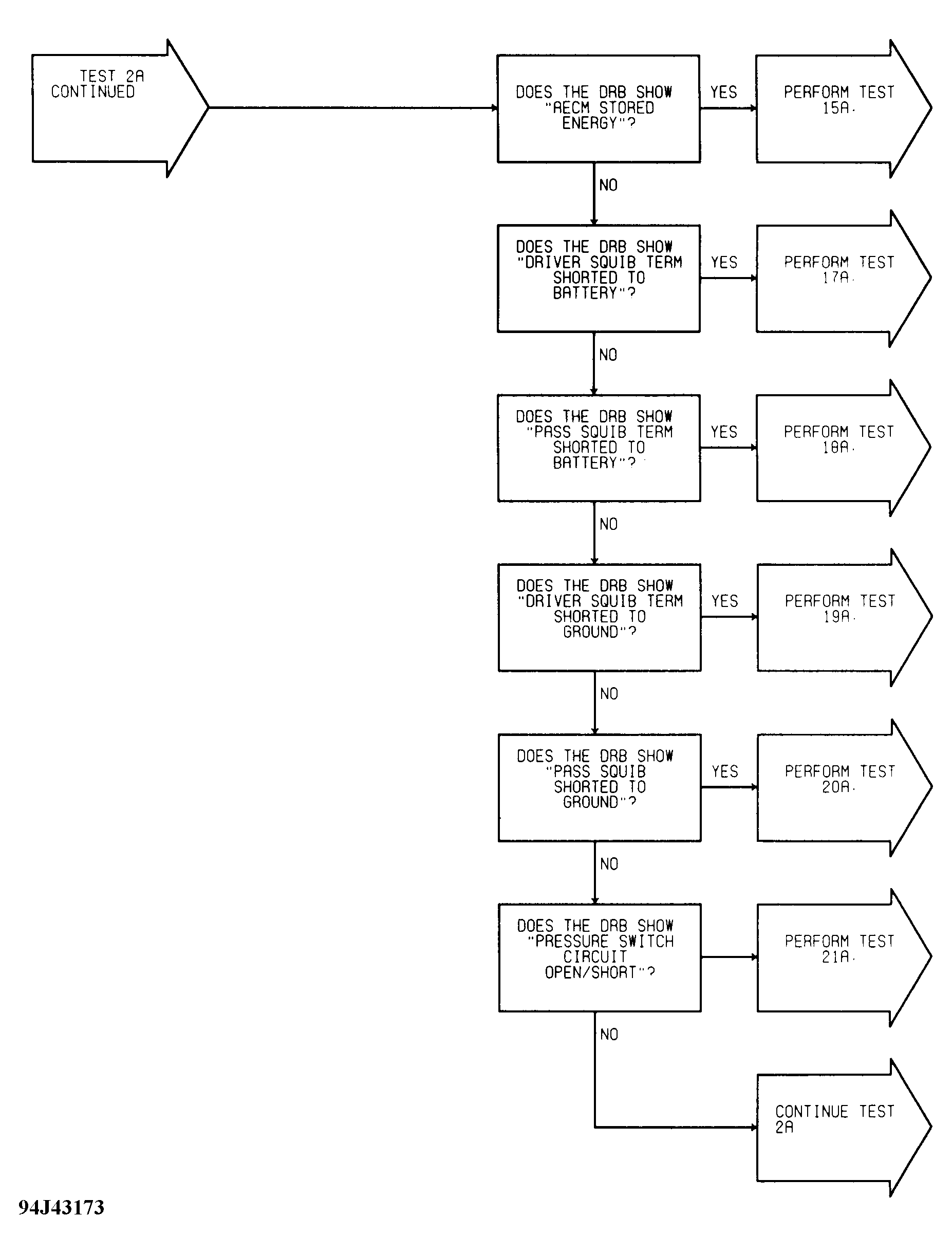

Fig 4: Test 2A - Air Bag Codes (4 Of 5)

Courtesy of CHRYSLER CORP.

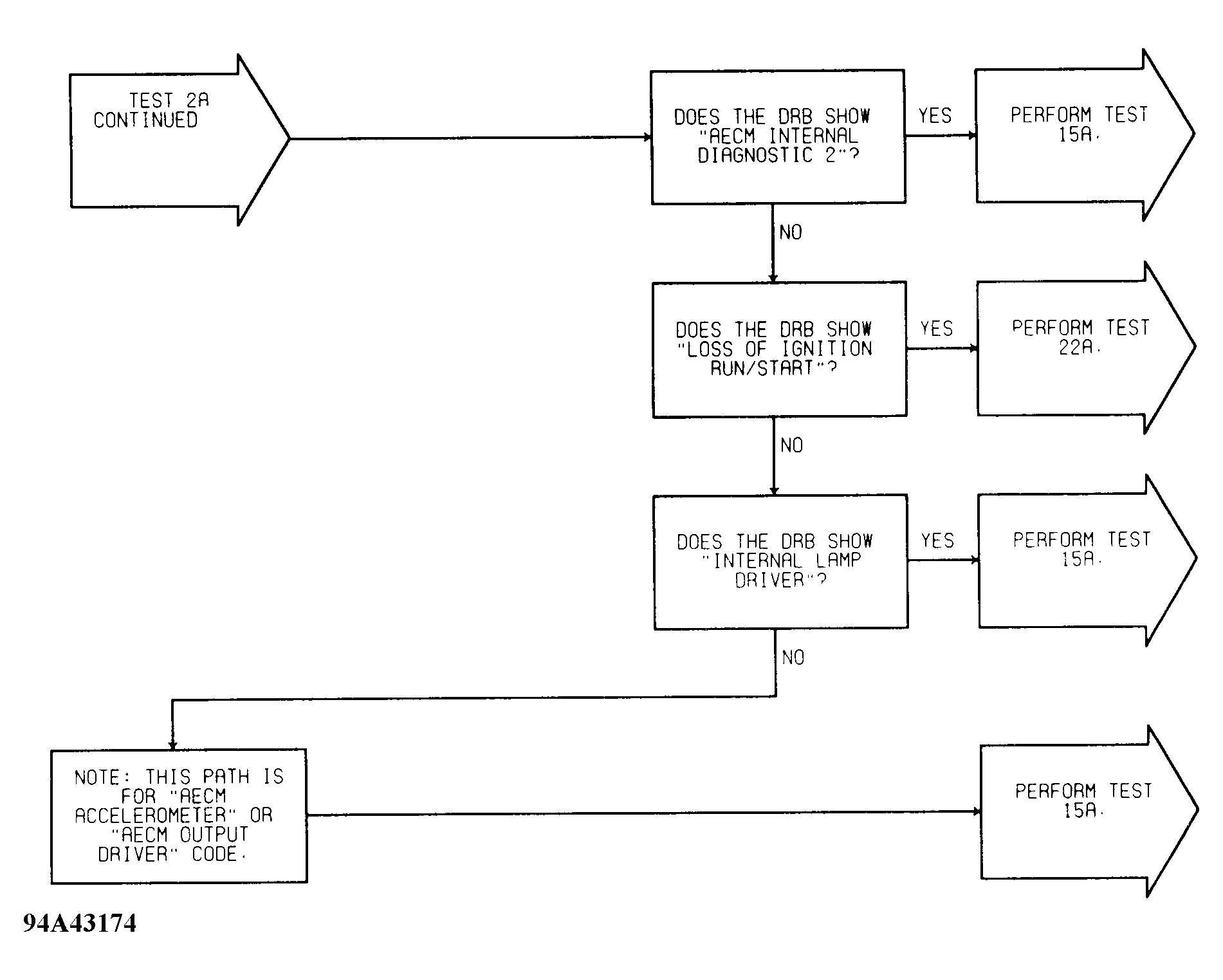

Fig 5: Test 2A - Air Bag Codes (5 Of 5)

Courtesy of CHRYSLER CORP.
