Test 23A - No Response

WARNING: This page is about a different car, the 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

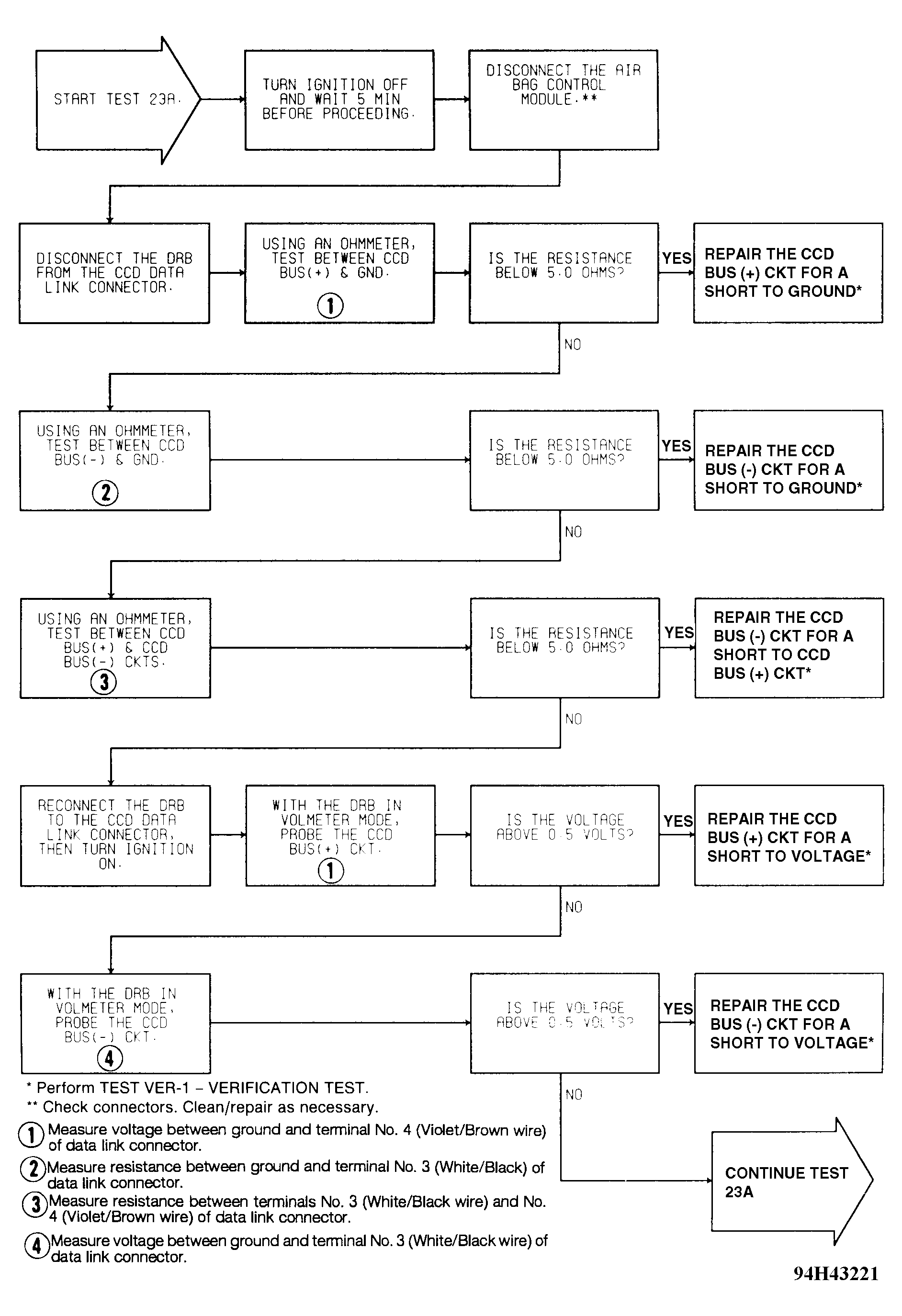

Fig 1: Test 23A - No Response (1 Of 3)

Courtesy of CHRYSLER CORP.

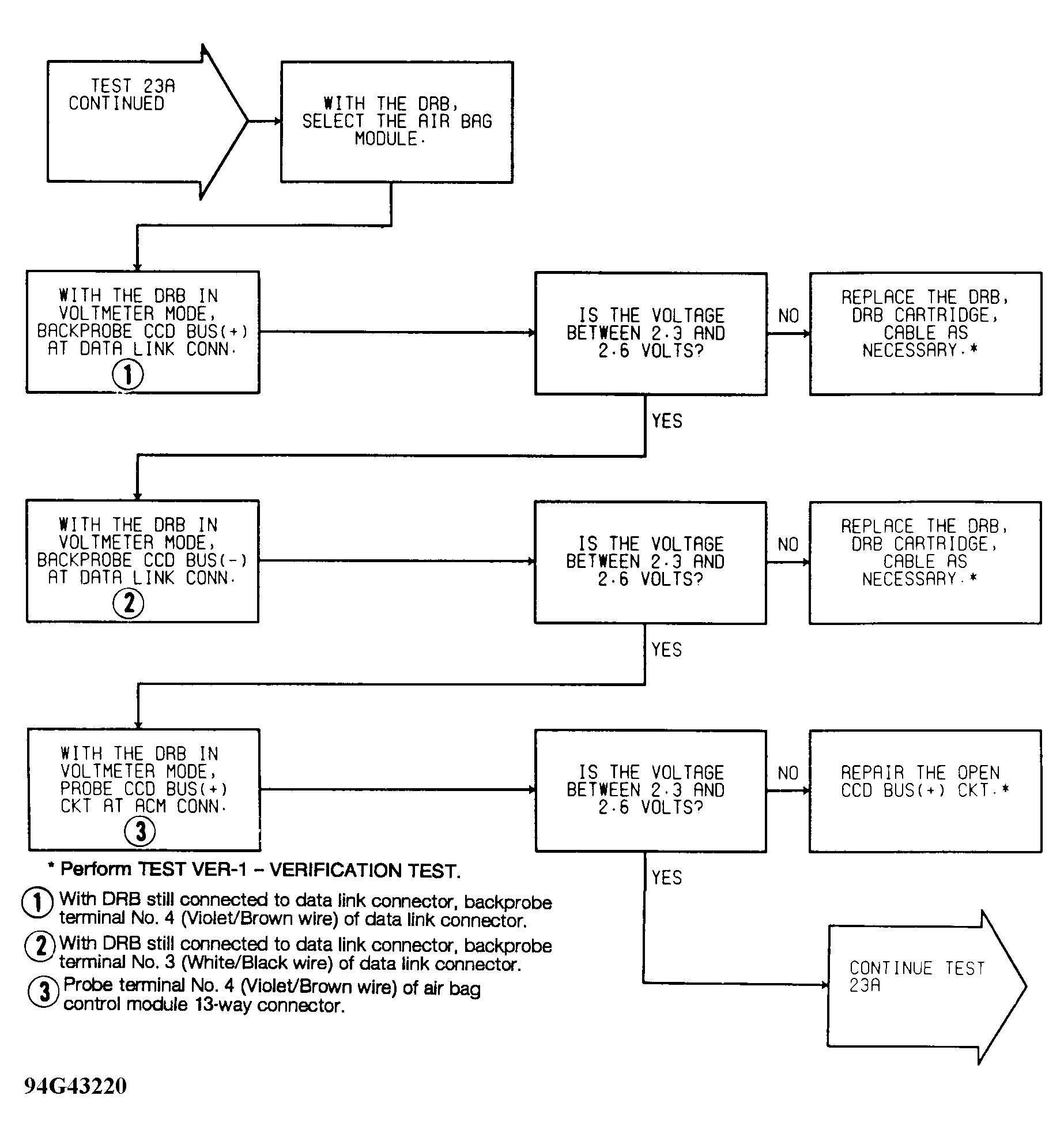

Fig 2: Test 23A - No Response (2 Of 3)

Courtesy of CHRYSLER CORP.

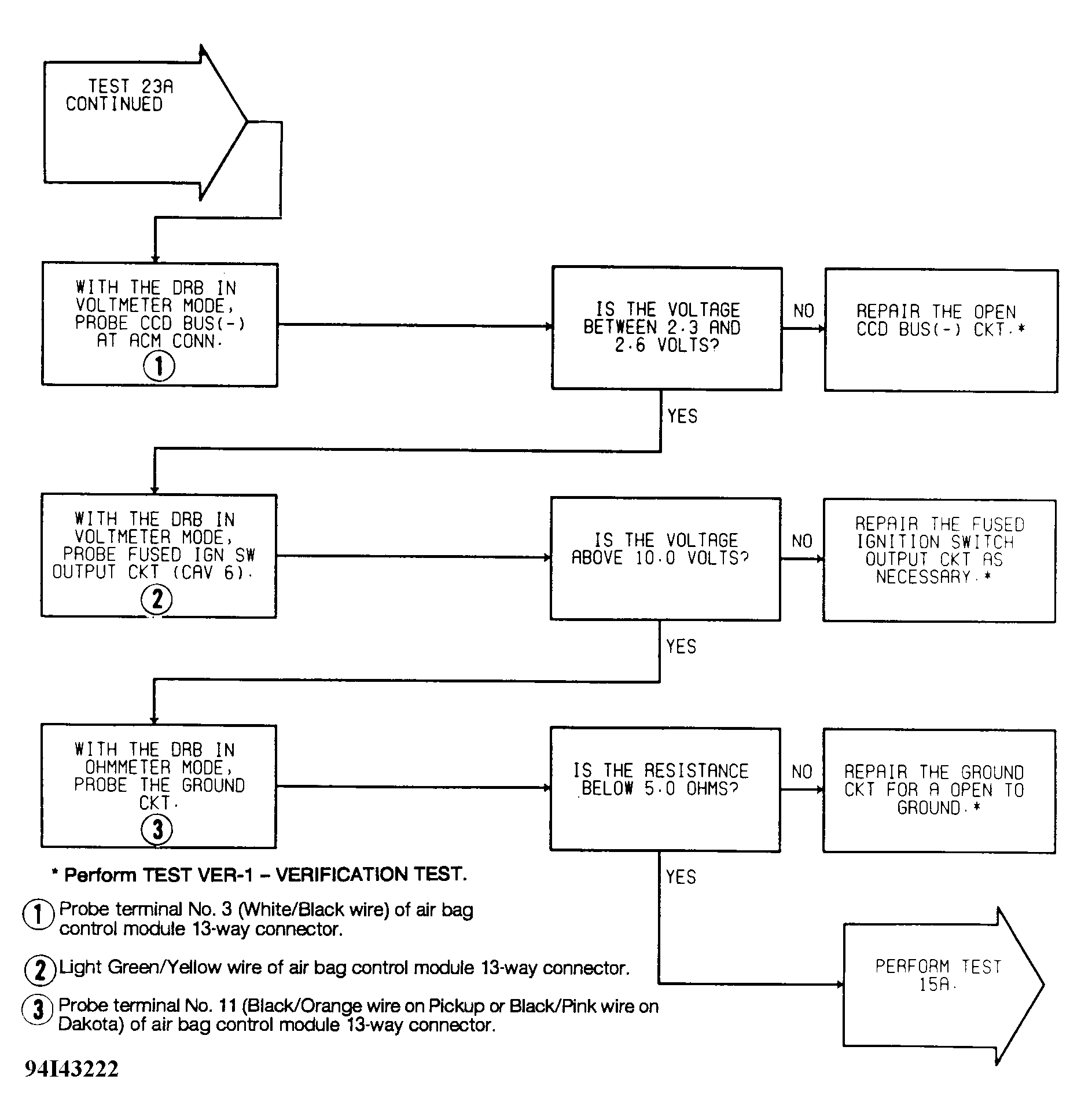

Fig 3: Test 23A - No Response (3 Of 3)

Courtesy of CHRYSLER CORP.
