Test 19A - Driver-Side Squib Shorted To Ground

WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Plymouth Grand Voyager, 1995 Dodge Grand Caravan, 1995 Dodge Caravan, and 1995 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

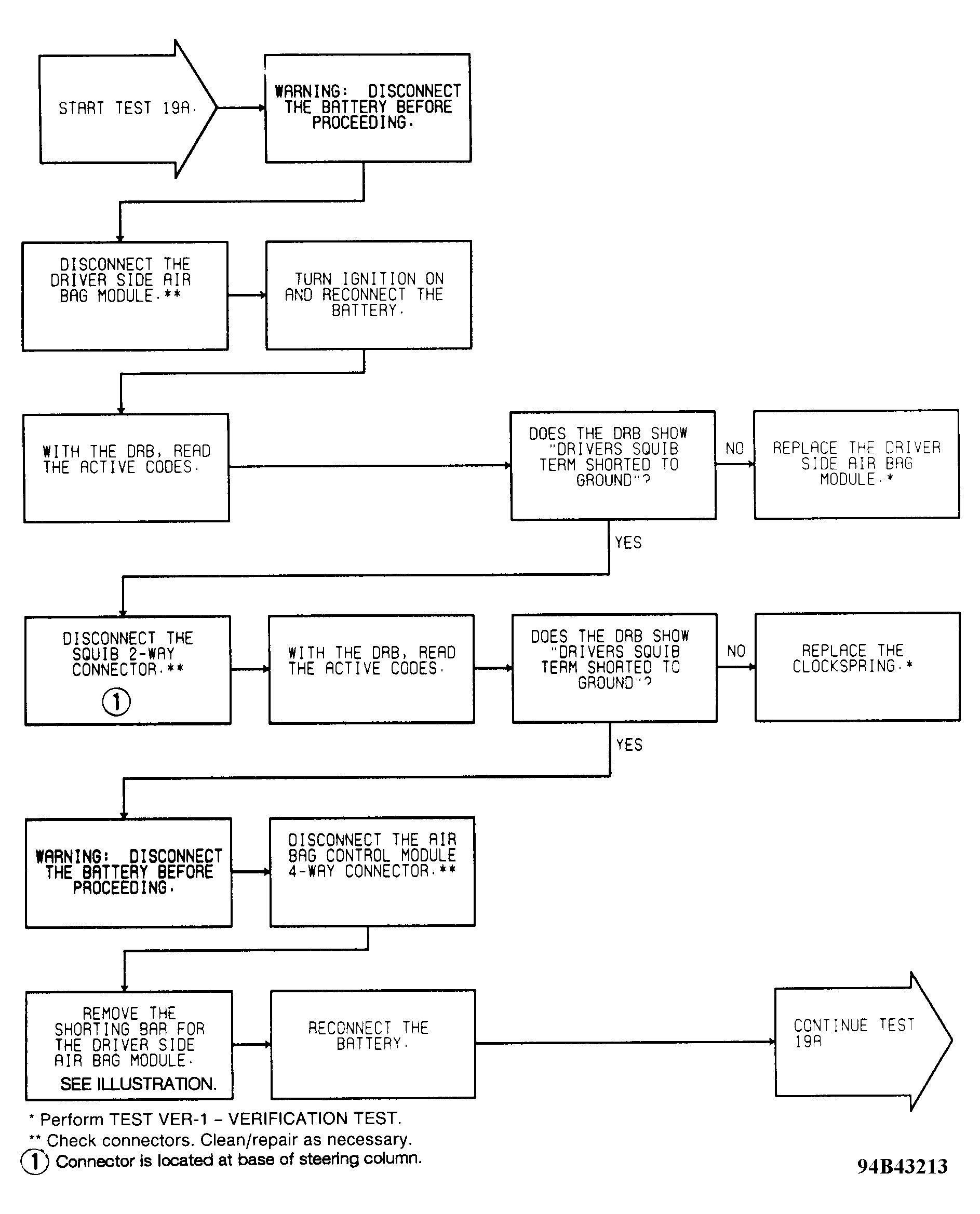

Fig 1: Test 19A - Driver-Side Squib Shorted To Ground (1 Of 2)

Courtesy of CHRYSLER CORP.

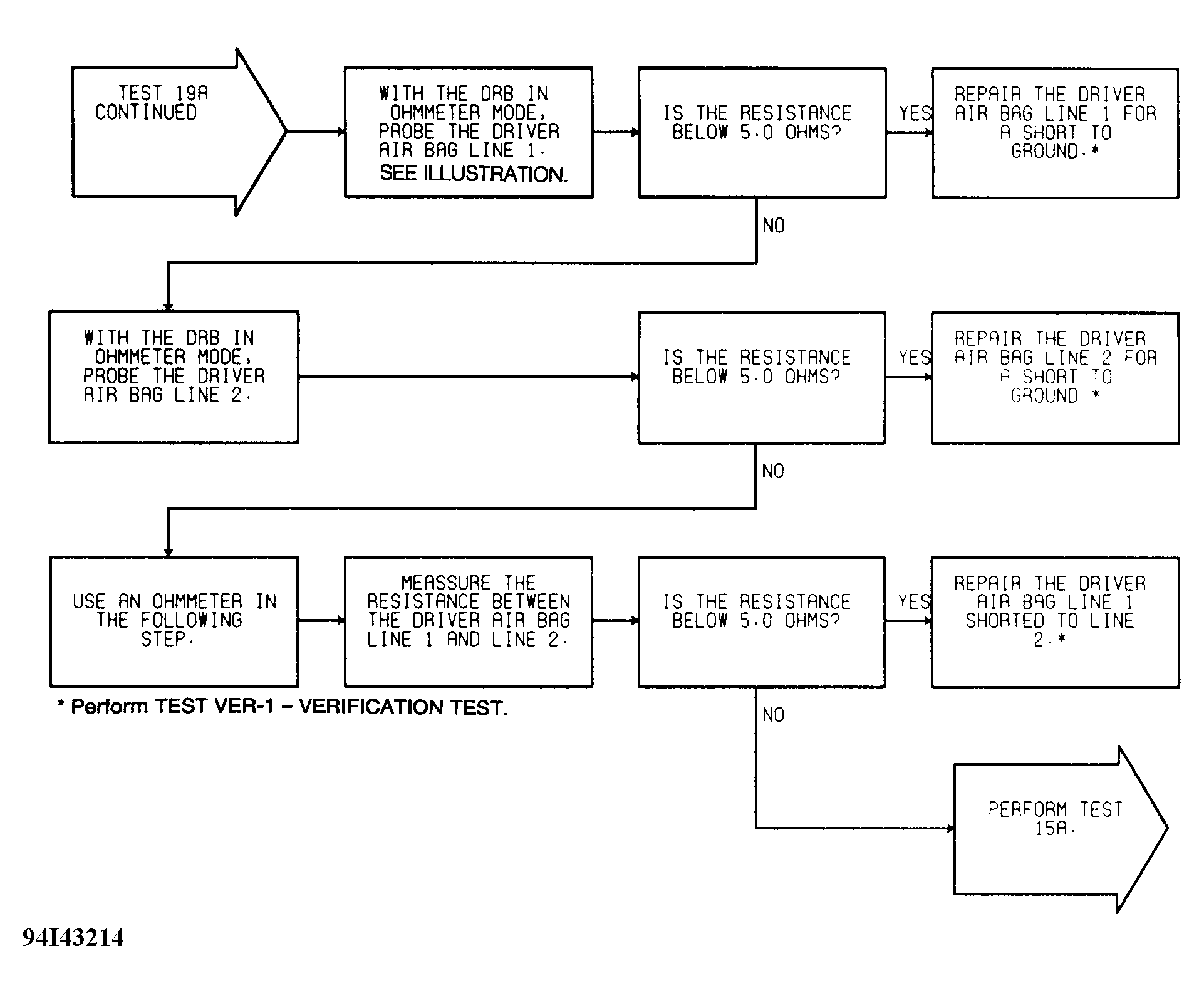

Fig 2: Test 19A - Driver-Side Squib Shorted To Ground (2 Of 2)

Courtesy of CHRYSLER CORP.
