Timing Chain: Removal
WARNING: This page is about a different car, the 1995 Plymouth Grand Voyager, 1995 Dodge Grand Caravan, and 1995 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
- Remove timing chain cover. See TIMING CHAIN COVER . Check timing chain stretch to determine if timing chain replacement is required.
- Position measuring scale near link on timing chain at camshaft sprocket so movement can be measured. Place torque wrench on camshaft sprocket bolt. Apply 30 ft. lbs. (41 N.m) torque with cylinder heads installed or 15 ft. lbs. (20 N.m) torque with cylinder heads removed on camshaft sprocket bolt in direction of engine rotation. Note reading on measuring scale.NOTE: When applying torque on camshaft sprocket bolt, DO NOT allow crankshaft to move. If necessary, hold crankshaft.
- Apply same amount of torque in opposite direction. Note amount of timing chain movement on measuring scale. Replace timing chain if movement exceeds 1/8" (3.17 mm).

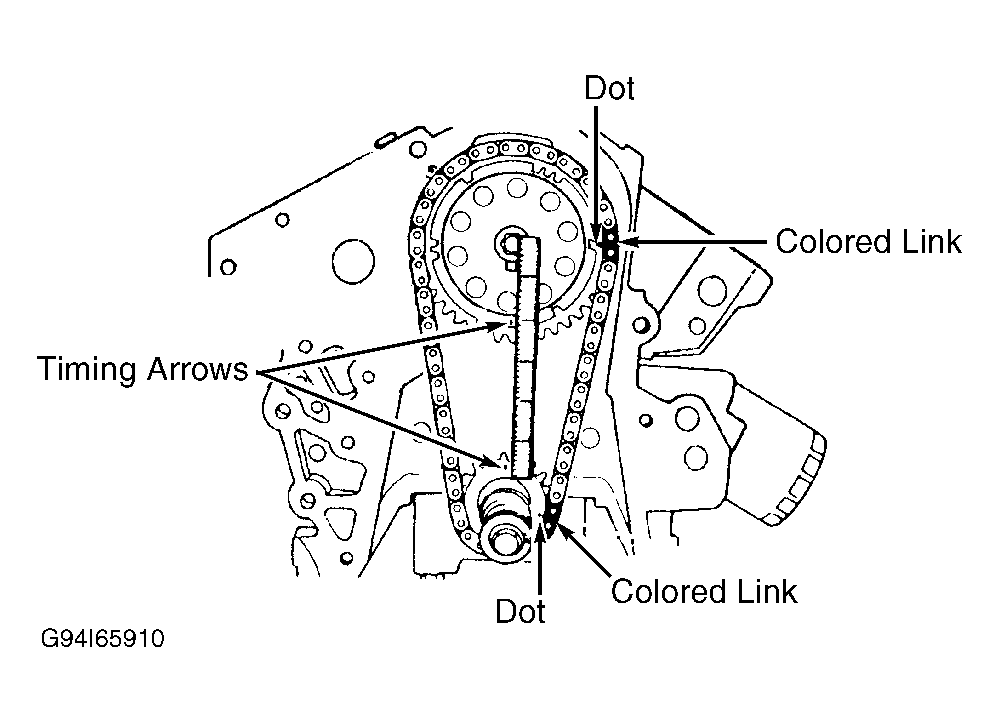

- To remove timing chain, rotate crankshaft so timing arrows are aligned. See Figure. Remove camshaft sprocket bolt, washer, camshaft sprocket and timing chain. Using puller, remove crankshaft sprocket from crankshaft (if necessary).
