Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 1992 GMC Yukon, 1992 GMC Vandura Special, 1992 GMC Vandura, 1992 GMC Value Van, and 1992 GMC Suburban. However, it is still accessible from the selected car via links, so may be relevant.

Check for poor connections at PCM/TCM, especially at transmission pass-thru connector.

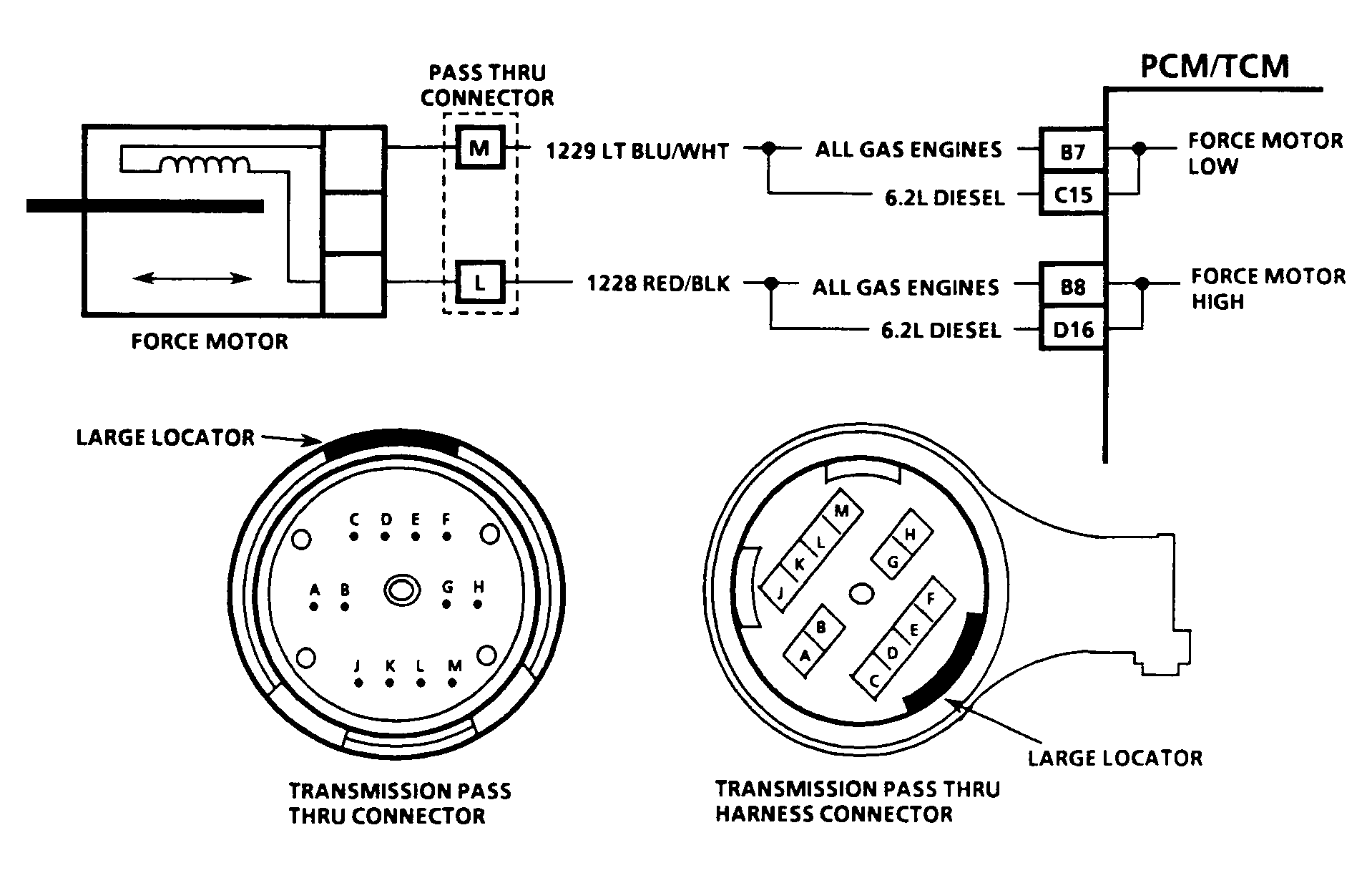

Fig 1: Force Motor Circuit Check, Schematic

Courtesy of GENERAL MOTORS CORP.

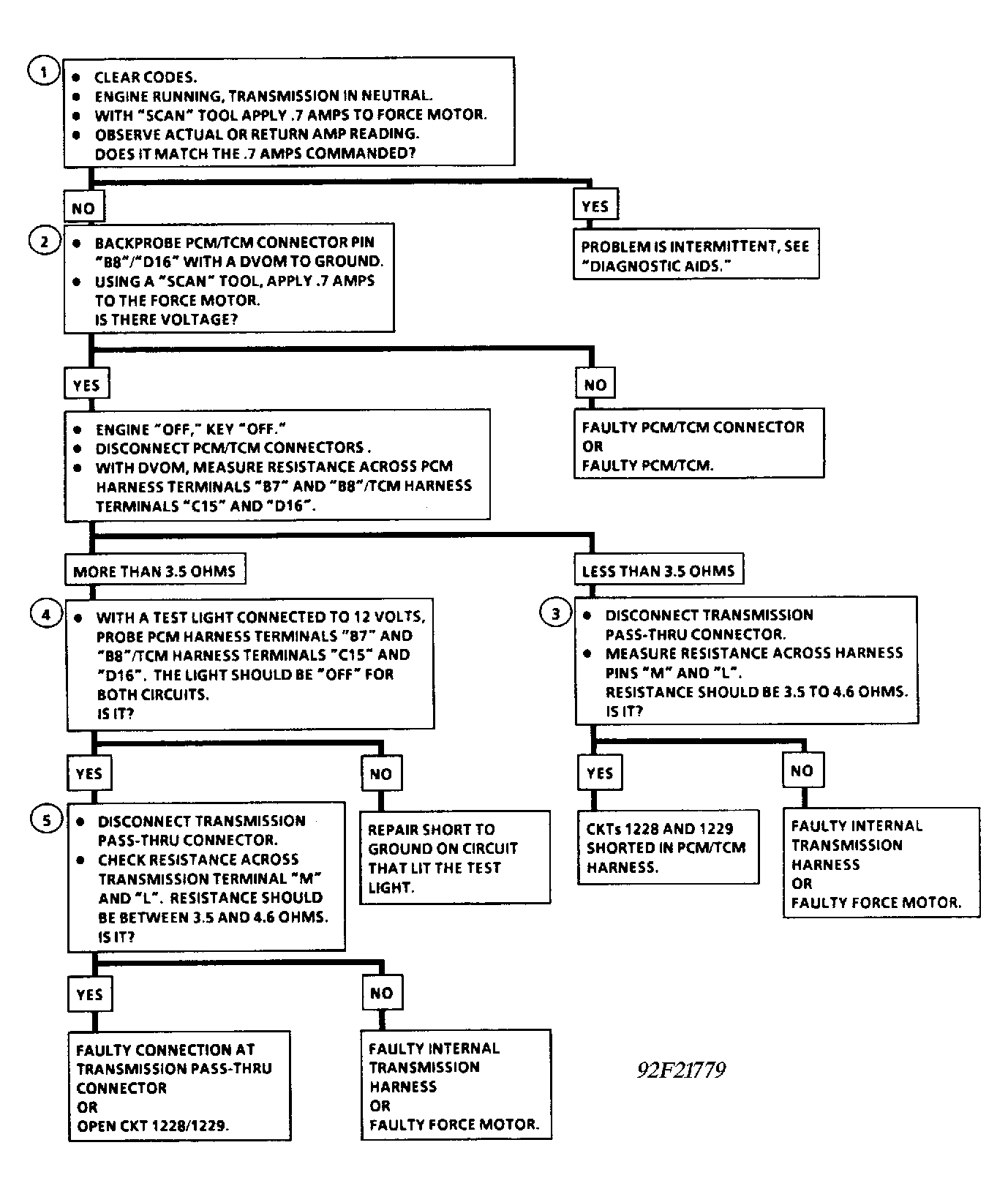

Fig 2: Force Motor Circuit Check, Flow Chart

Courtesy of GENERAL MOTORS CORP.
