Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 1992 GMC Yukon, 1992 GMC Vandura Special, 1992 GMC Vandura, 1992 GMC Value Van, and 1992 GMC Suburban. However, it is still accessible from the selected car via links, so may be relevant.

Check for spread connectors at pass-thru connector. Code 68 will set when going to default (2nd gear). Refer to TESTS W/O CODES article.

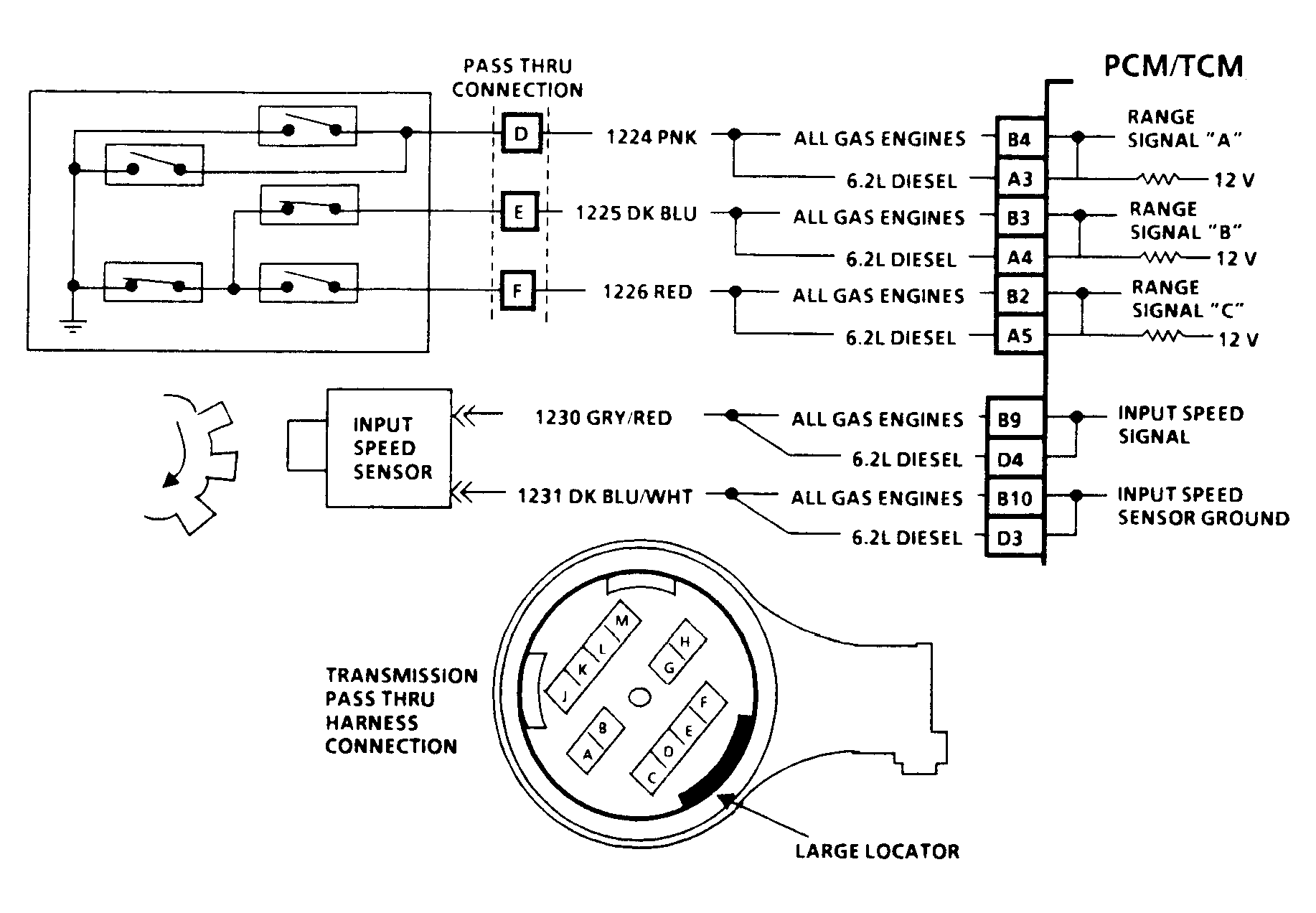

Fig 1: CODE 68, Schematic, Overdrive Ratio Error

Courtesy of GENERAL MOTORS CORP.

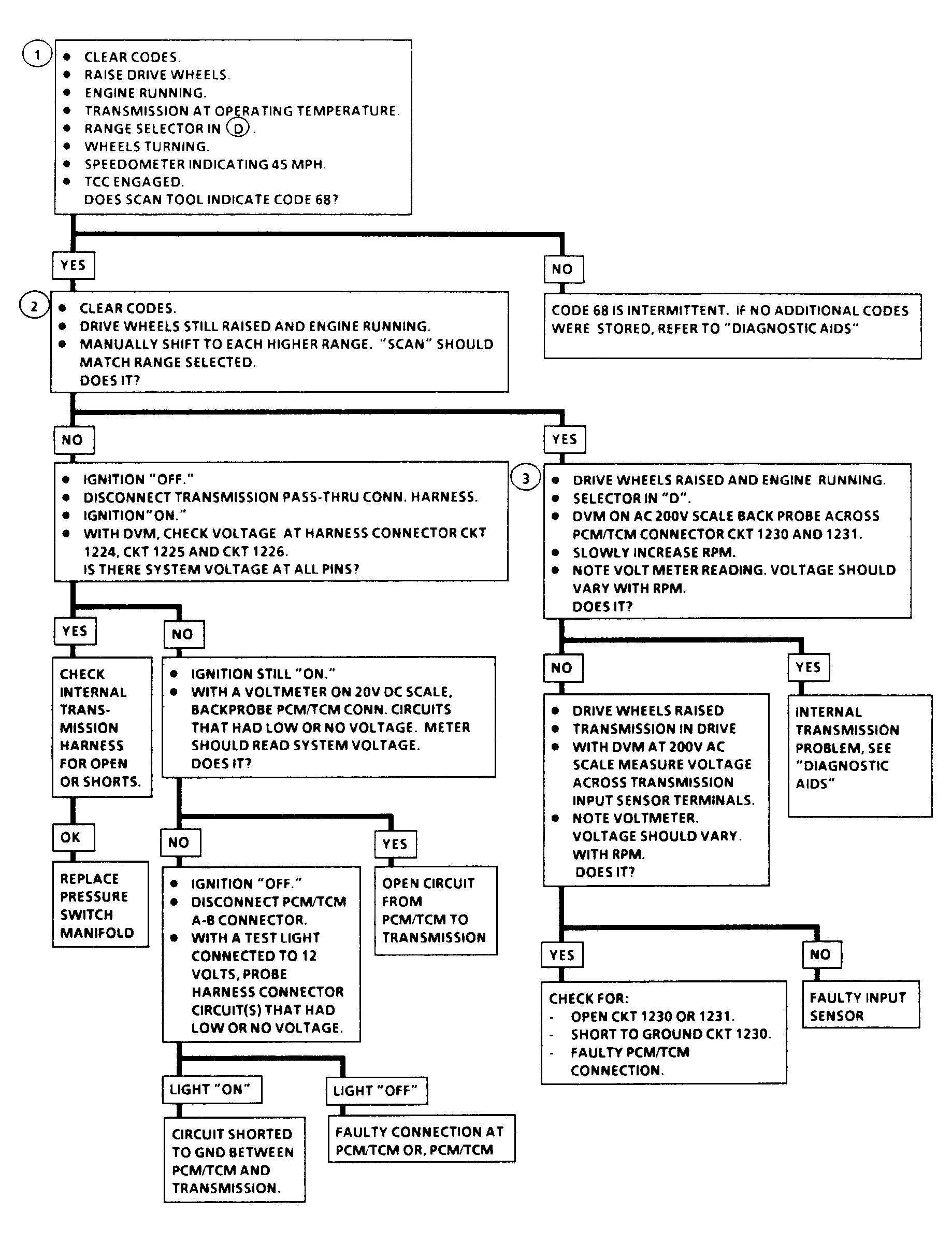

Fig 2: CODE 68, Flow Chart, Overdrive Ratio Error

Courtesy of GENERAL MOTORS CORP.
