Diagnostic Aids
WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 1992 GMC Yukon, 1992 GMC Vandura Special, 1992 GMC Vandura, 1992 GMC Value Van, and 1992 GMC Suburban. However, it is still accessible from the selected car via links, so may be relevant.

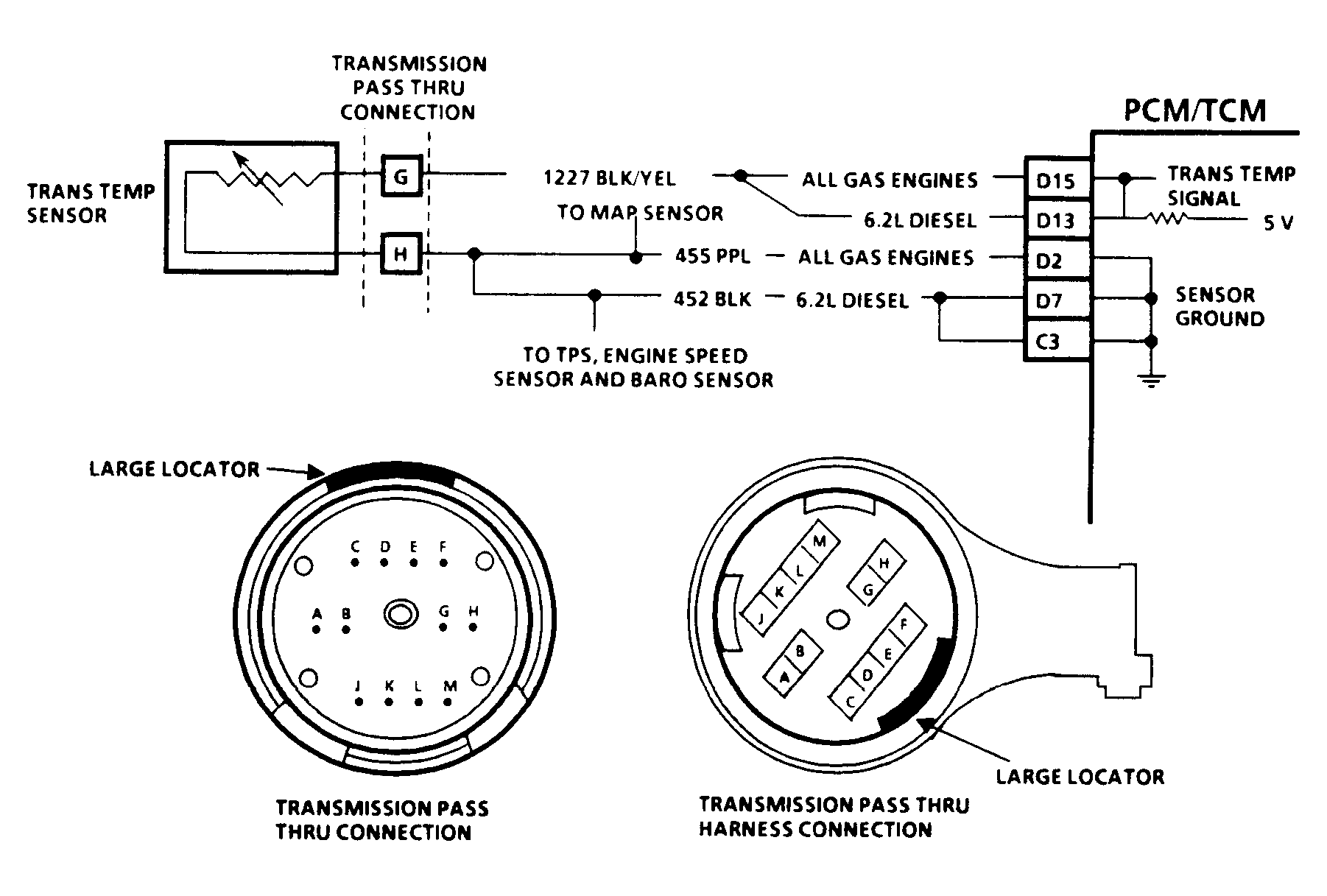

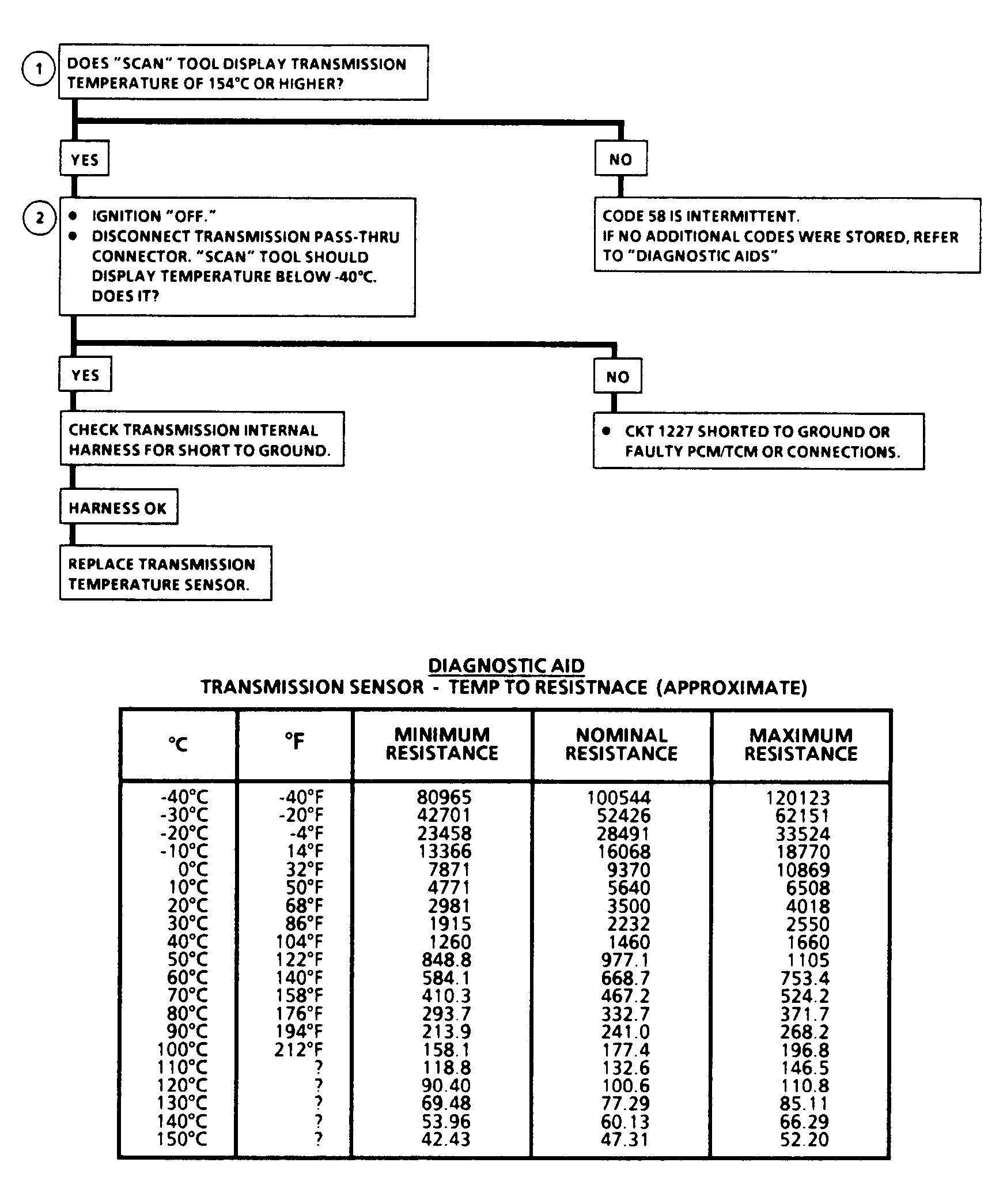

Check harness routing for a potential short to ground in circuit No. 1227. Scan tester displays transmission temperature in degrees Centigrade. After transmission is running, the temperature display should rise steadily to about 100°C then stabilize. Test the transmission sensor at various temperature levels to determine if sensor is out of calibration. See TRANSMISSION SENSOR - TEMPERATURE TO RESISTANCE chart. An out-of-calibration sensor could result in delayed shifts, or TCC enabled complaint.
