Code 28 will set if PCM/TCM detects one of 2 "illegal" PSM combinations. See VALID PSM COMBINATION  for various combinations. Check pass-thru connector for good contact.

VALID PSM COMBINATION CHART

Application A B C
Park 12 0 12
Reverse 0 0 12
Neutral 12 0 12
4th 12 0 0
3rd 12 12 0
2nd 12 12 12
1st 0 12 12
Illegal 0 12 0
Illegal 0 0 0

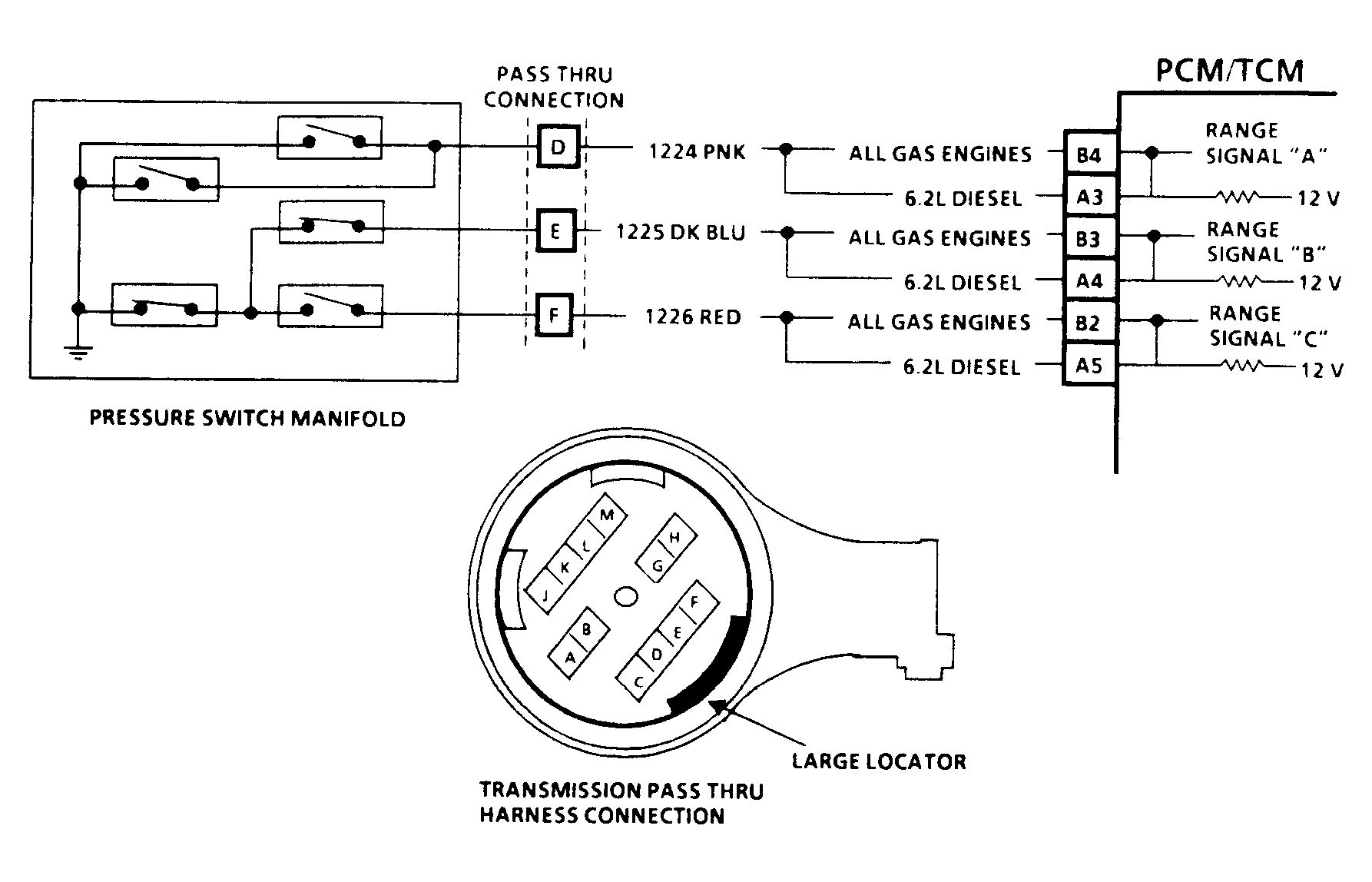

Fig 1: CODE 28, Schematic, Pressure Switch Manifold Fault
G91B13673Courtesy of GENERAL MOTORS CORP.
Fig 2: CODE 28, Flow Chart, Pressure Switch Manifold Fault
G91C13674Courtesy of GENERAL MOTORS CORP.
