Valve Lifters: Removal

WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Plymouth Grand Voyager, 1995 Dodge Grand Caravan, and 1995 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.

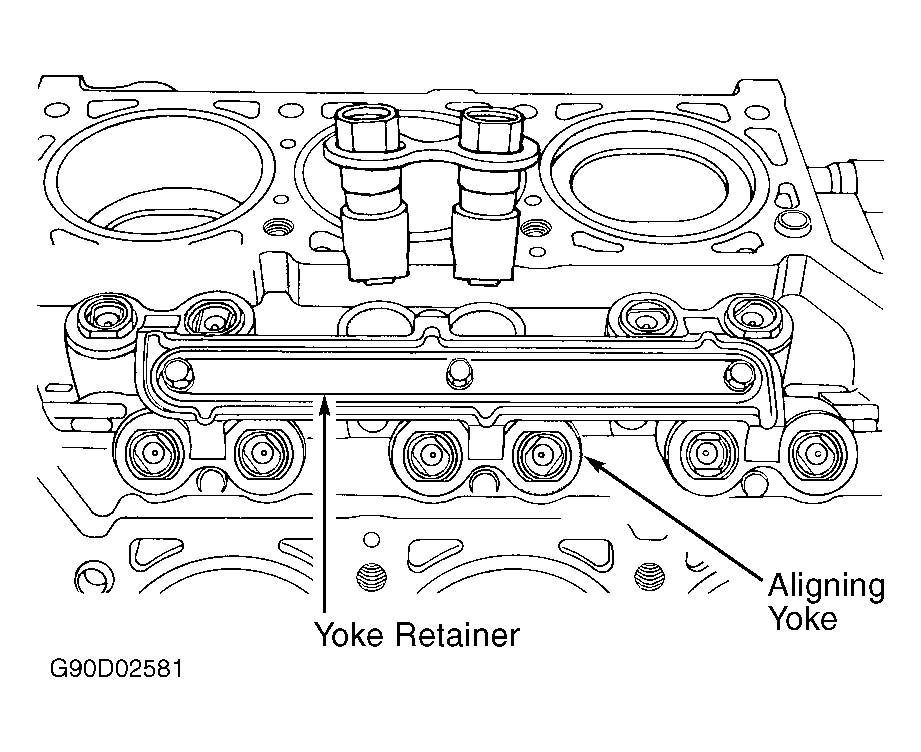

  1. Remove cylinder head. See CYLINDER HEAD . Remove bolts, yoke retainer and aligning yoke. See Figure.
  2. Using Valve Lifter Remover (C-4129), remove valve lifter. Mark valve lifter location for reassembly reference.
