Exhaust Manifold: Removal
WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Plymouth Grand Voyager, 1995 Dodge Grand Caravan, and 1995 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.

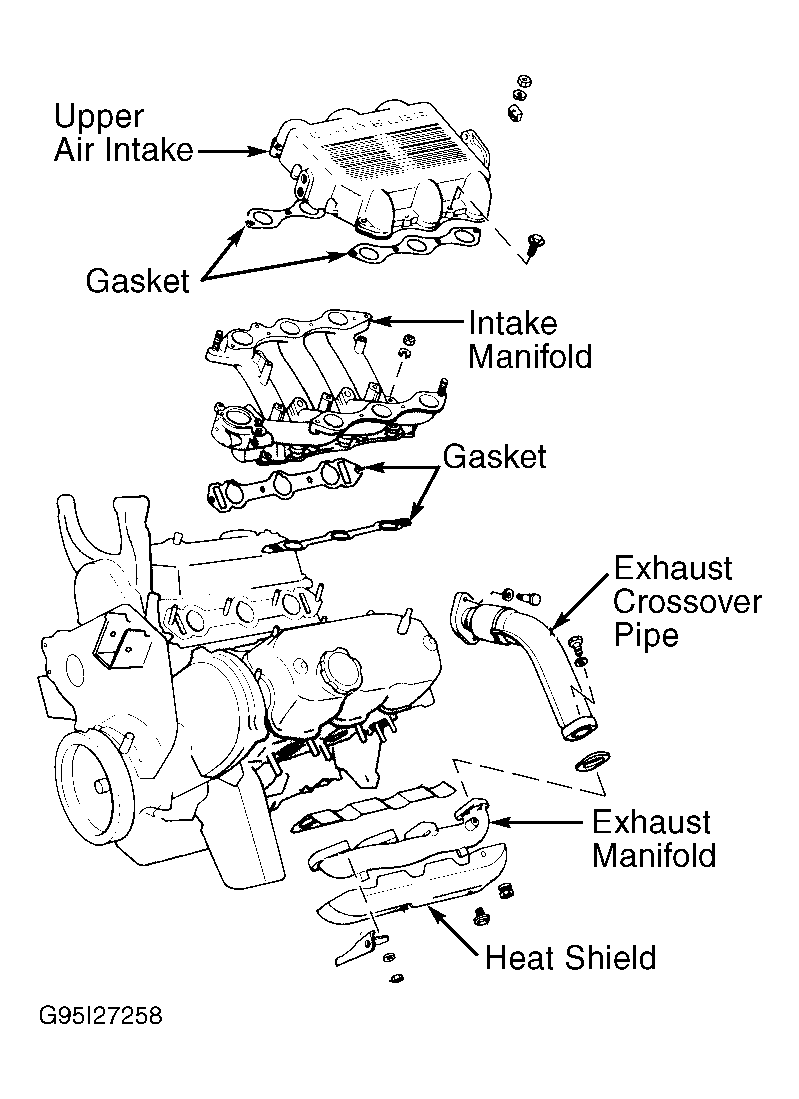

- Raise and support vehicle. Disconnect exhaust pipe from rear exhaust manifold flange. Disconnect oxygen sensor wiring. Remove exhaust crossover pipe mounting bolts. See Figure. Remove nuts, rear exhaust manifold and gasket.
- Lower vehicle. Remove exhaust manifold heat shield from front exhaust manifold. Disconnect exhaust crossover pipe at front exhaust manifold. Remove nuts, front exhaust manifold and gasket.
