Cylinder Head: Removal

WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Plymouth Grand Voyager, 1995 Dodge Grand Caravan, and 1995 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove intake and exhaust manifolds. See INTAKE MANIFOLD  and EXHAUST MANIFOLD  under REMOVAL & INSTALLATION. Remove timing belt and camshaft sprockets. See TIMING BELT  under REMOVAL & INSTALLATION. Remove distributor and adapter housing from cylinder head.
  2. Remove rocker arm shaft assembly. See, under REMOVAL & INSTALLATION, ROCKER ARM & VALVE LASH ADJUSTER . Remove camshaft.
    CAUTION: Note location of 10-mm Allen hex cylinder head bolt and washer for installation reference. See Fig 1.
  3. Remove cylinder head bolts in sequence. See Fig 1. Remove cylinder head and gasket.

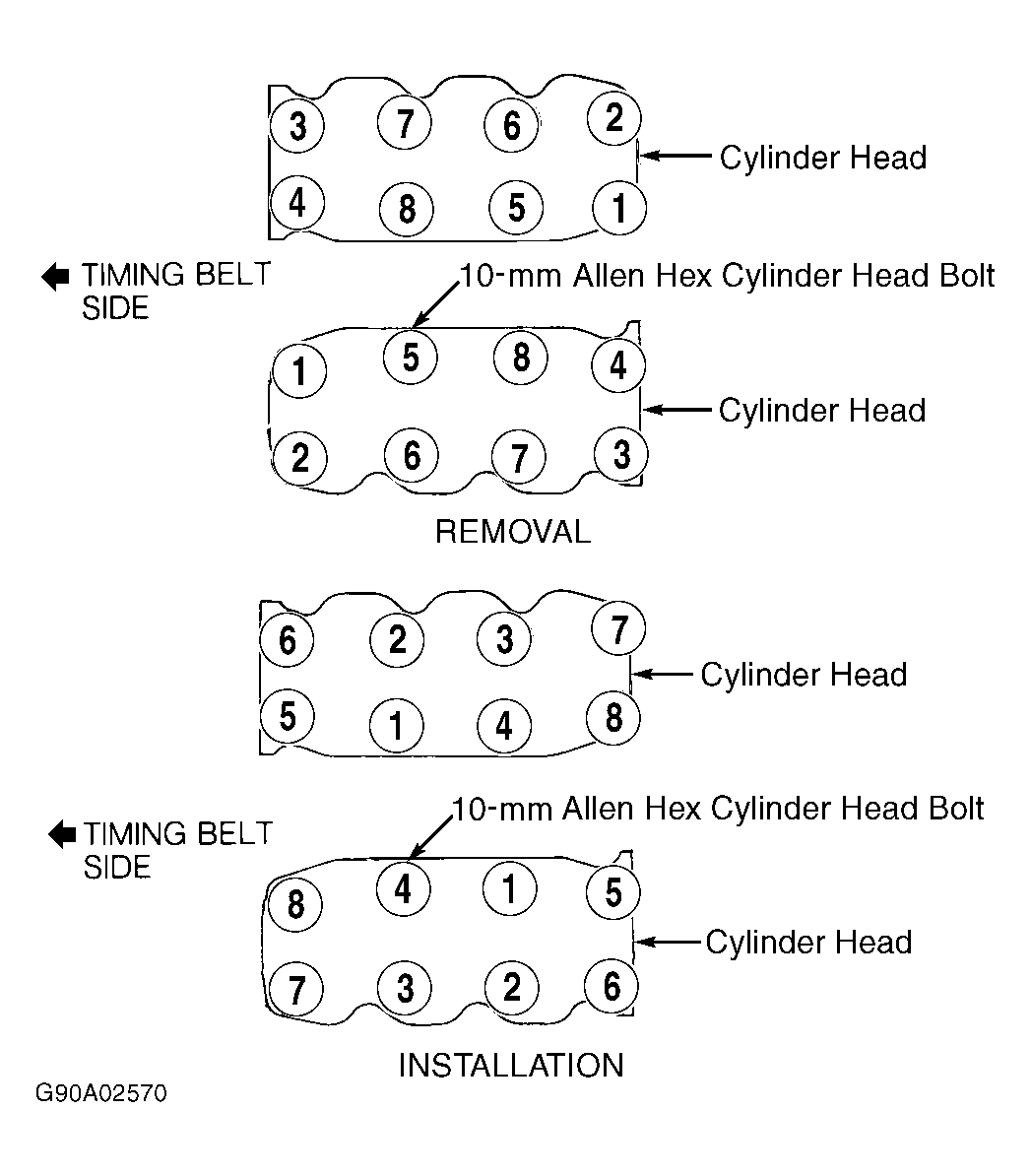

Fig 1: Cylinder Head Bolt Removal & Installation Sequence
G90A02570Courtesy of CHRYSLER CORP.
