Engine Lubrication System: Notes

WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Plymouth Grand Voyager, 1995 Dodge Grand Caravan, and 1995 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.

A crankshaft-driven oil pump provides pressurized lubrication to main oil gallery. See Fig 1.

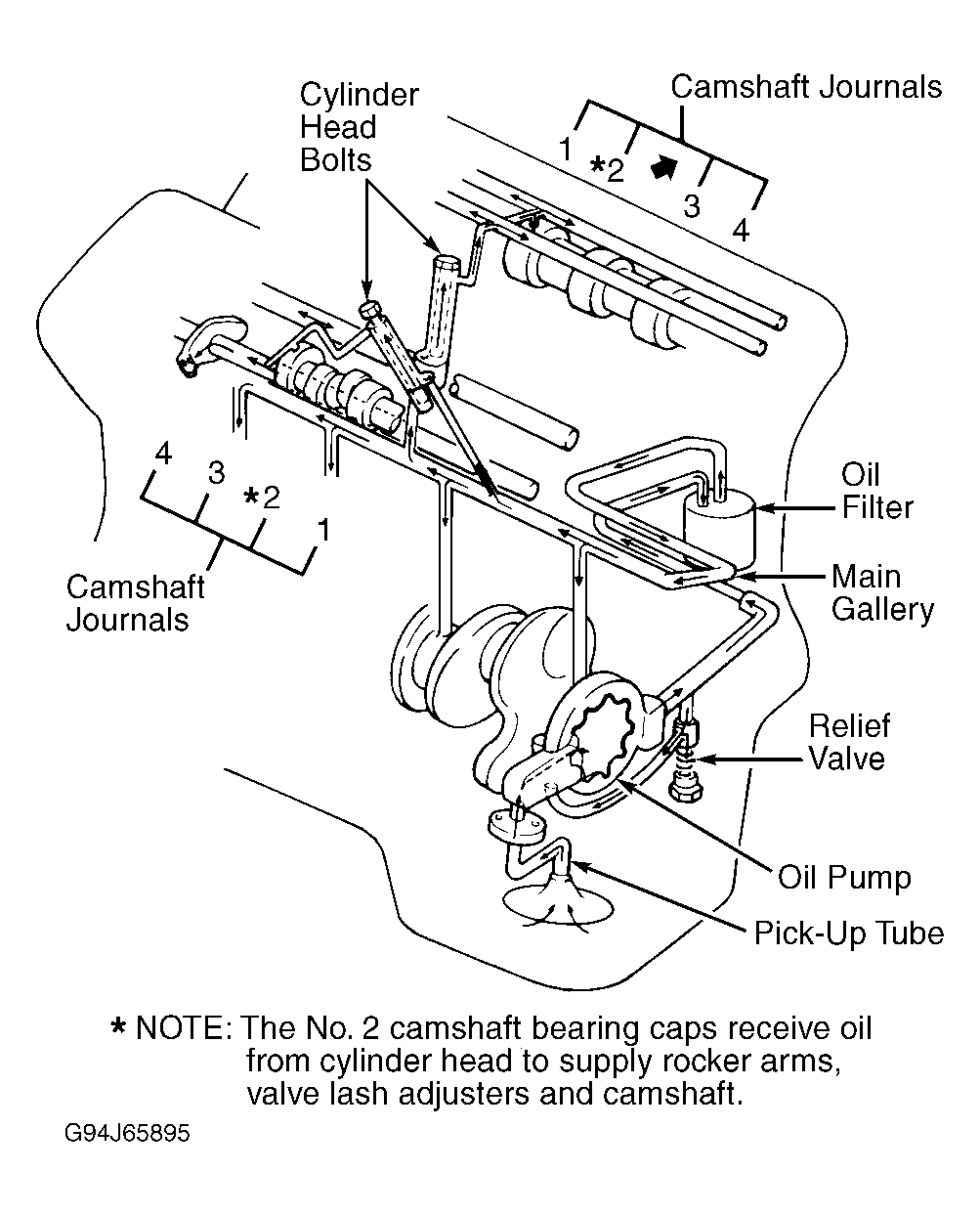

Fig 1: Cross-Sectional View Of Engine Oil Circuit
G94J65895Courtesy of CHRYSLER CORP.
