Intermediate Shaft: Removal

WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Dodge Dakota, and 1995 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.

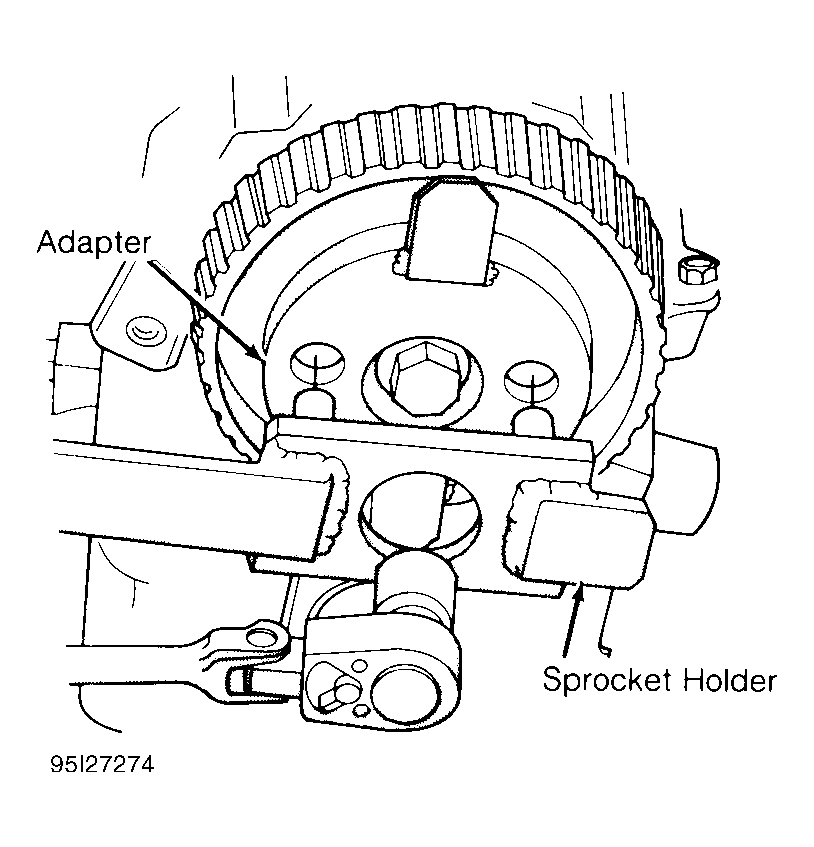

  1. Remove timing belt. See TIMING BELT  under REMOVAL & INSTALLATION. Using Sprocket Holder (C-4687) and Adapter (C-4687-1), hold intermediate sprocket and remove sprocket bolt. See Figure. Note direction of sprocket offset for reassembly reference. Remove intermediate shaft sprocket.

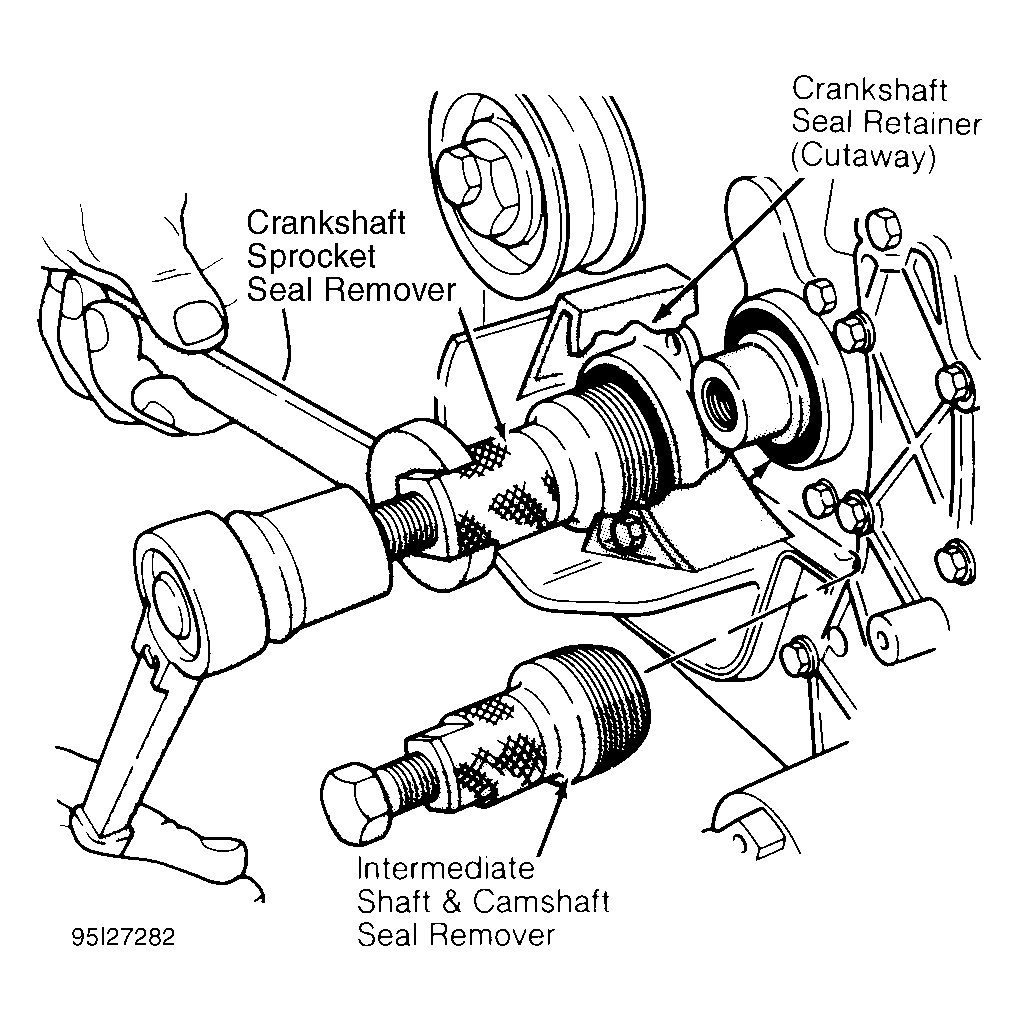

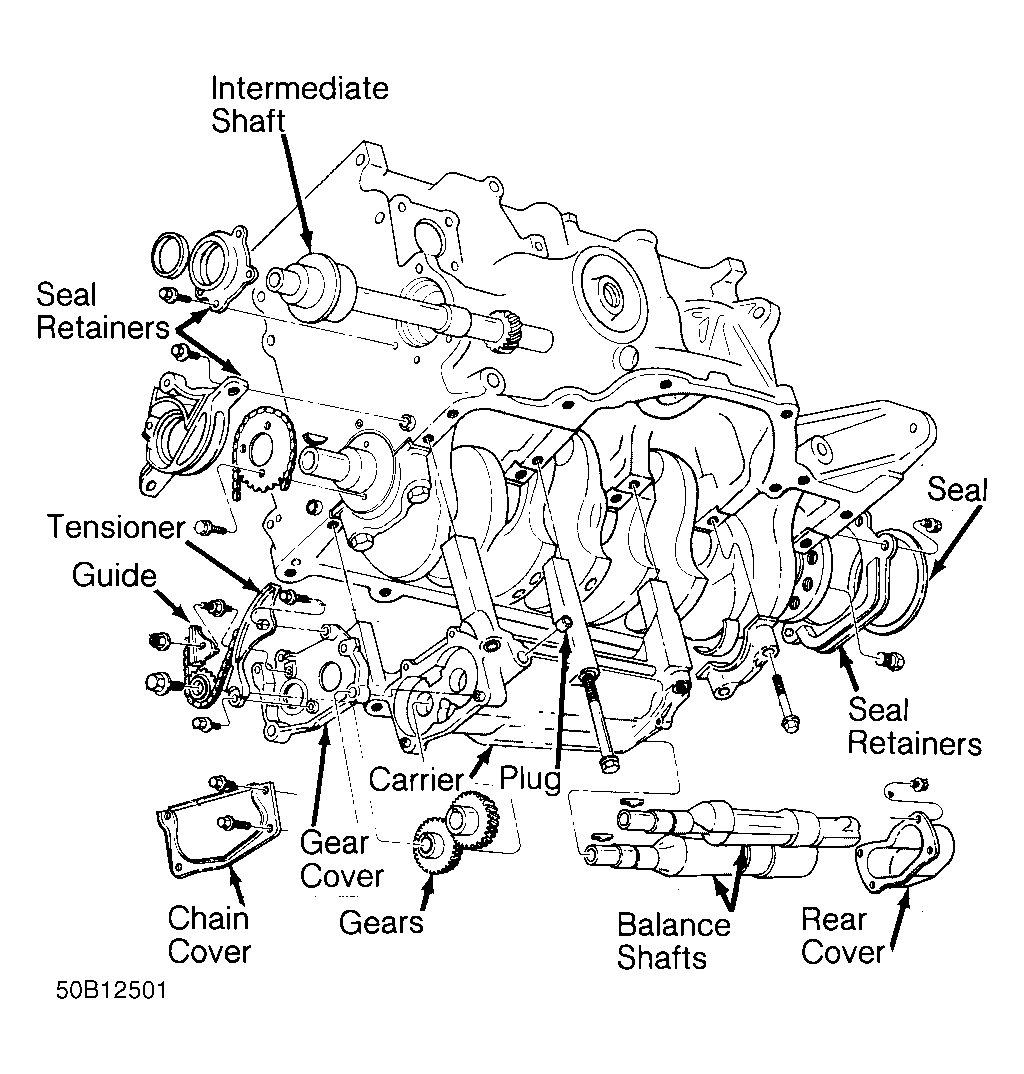

  2. Using Intermediate Shaft/Camshaft Seal Remover (C-4679), remove sprocket oil seals. See Figure. Remove seal retainer and intermediate shaft. See Figure.
