Camshaft, Crankshaft Or Intermediate Shaft Sprocket Oil Seal: Installation

WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Dodge Dakota, and 1995 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.

Using Crankshaft Seal Installer (C-6342) or Intermediate Shaft/Camshaft Seal Installer (C-4680), install seal until seal is even with surface. See Fig 1 and Fig 2.
Using crankshaft sprocket puller/installer and thrust bearing, install crankshaft sprocket. See Figure. To install remaining components, reverse removal procedure. Ensure all timing marks are aligned during timing belt installation.

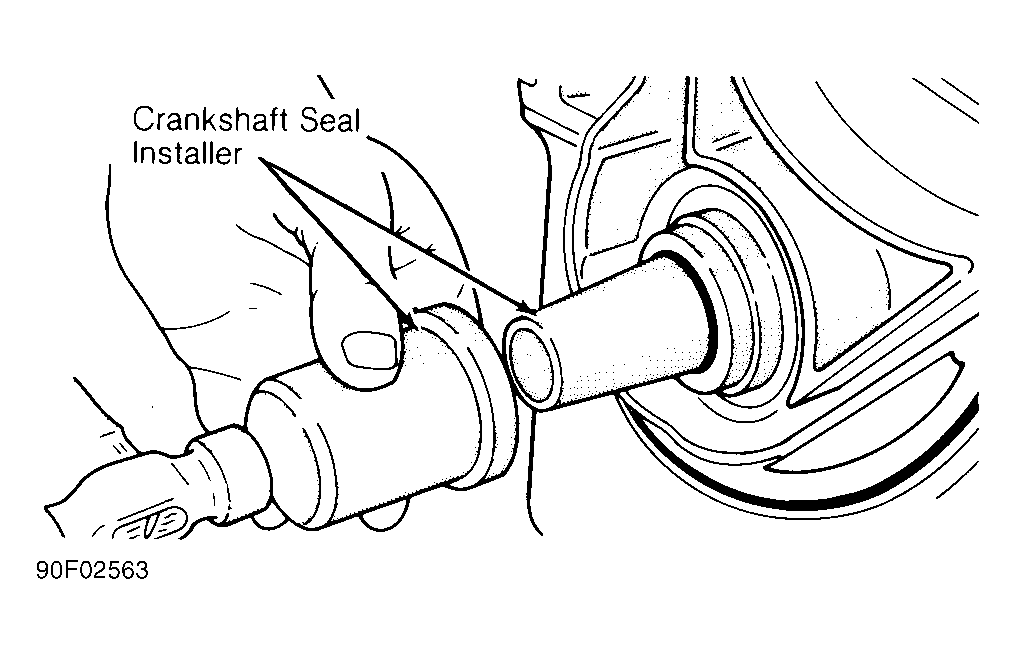

Fig 1: Installing Crankshaft Sprocket Oil Seal

Courtesy of CHRYSLER CORP.

Fig 2: Installing Intermediate Or Camshaft Sprocket Oil Seal

Courtesy of CHRYSLER CORP.
