Removal (Carrier Assembly & Balance Shafts)

WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Dodge Dakota, and 1995 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Following components will remain intact during carrier assembly removal: gear cover, gears, balance shafts and rear cover.
  2. Remove oil pan and oil pick-up tube. See OIL PAN  under REMOVAL & INSTALLATION. Remove timing belt. See TIMING BELT  under REMOVAL & INSTALLATION.

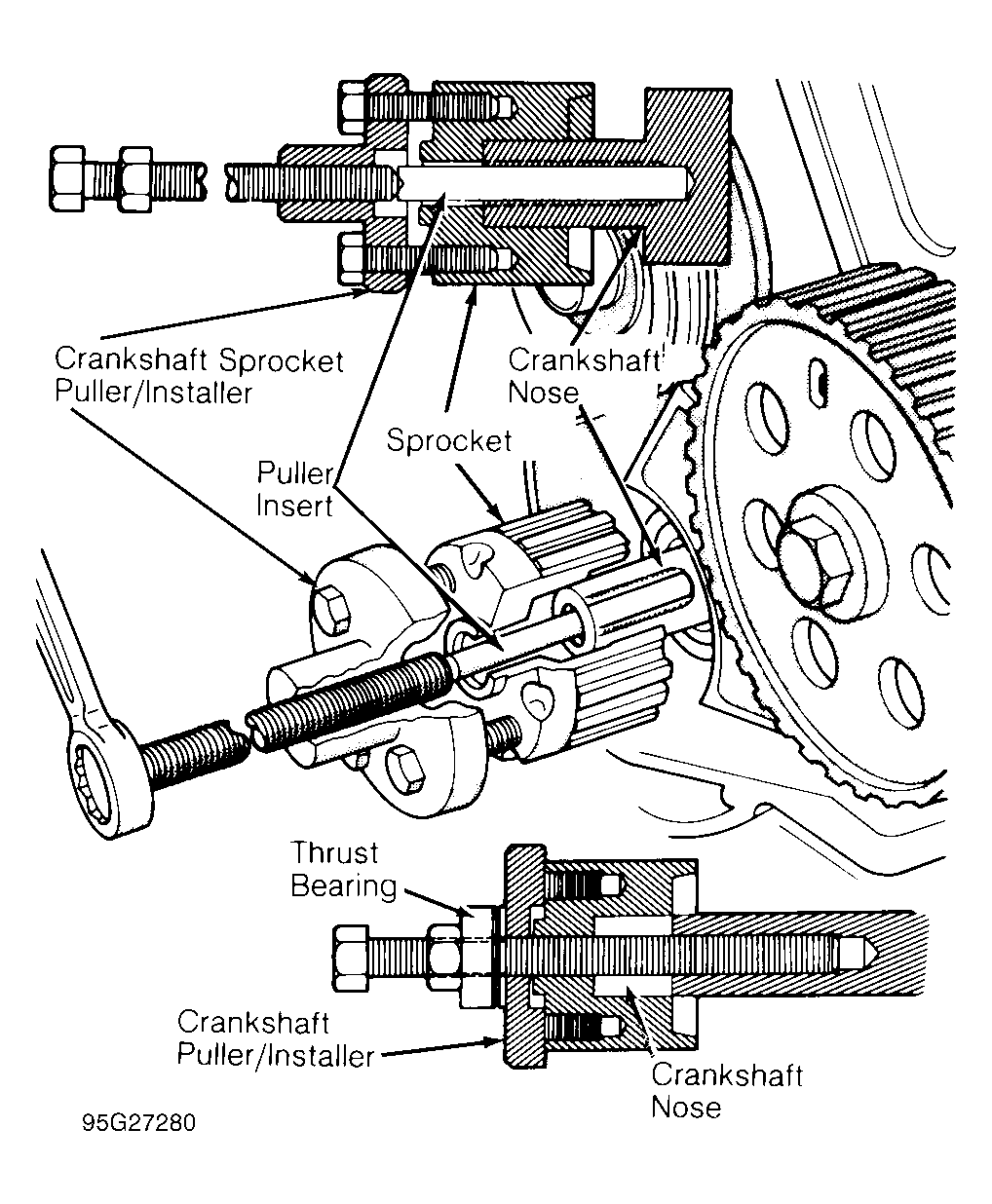

  3. Remove crankshaft sprocket bolt. Using Crankshaft Sprocket Puller/Installer (C-4685) and puller insert, remove crankshaft sprocket. See Figure. Remove crankshaft seal retainer.
  4. Remove chain cover. Remove balance shaft sprocket bolt. Loosen tensioner pivot and adjusting bolts. Move chain-driven balance shaft inboard through chain sprocket. Sprocket should remain hanging in lower chain loop. Remove carrier-to-cylinder block bolts, and remove carrier assembly.
