Engine Lubrication System: Notes

WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Dodge Dakota, and 1995 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.

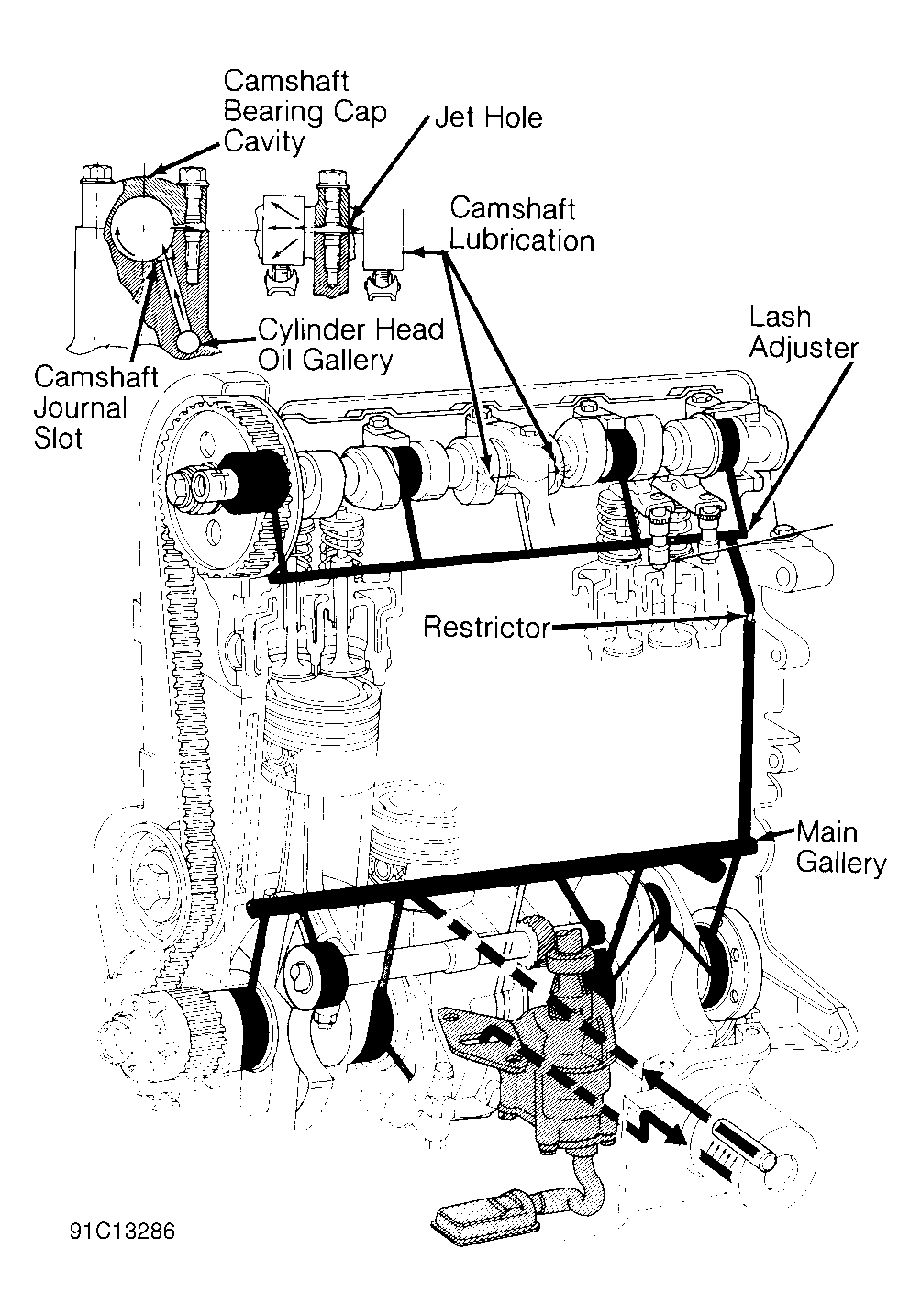

A distributor shaft-driven oil pump provides pressurized lubrication to main oil gallery. See Figure.
