Removal & Installation

WARNING: This page is about a different car, the 1995 Plymouth Voyager and 1995 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Low-pressure fuel solenoid is located on a bracket on right front strut tower. Release fuel system pressure. See FUEL SYSTEM PURGING  . Disconnect negative battery cable. Use Snap-On Quick Release Fuel Line Tool (9055-2) to disconnect fuel hose at outlet side of solenoid. See Fig 1 .
  2. Disconnect solenoid harness connector. Unbolt fuel line hold-down clamp at strut tower. Unbolt solenoid from mounting bracket. Remove fuel line and fitting from inlet side of solenoid. To install, reverse removal procedure. Apply thread sealant to solenoid pipe threads.

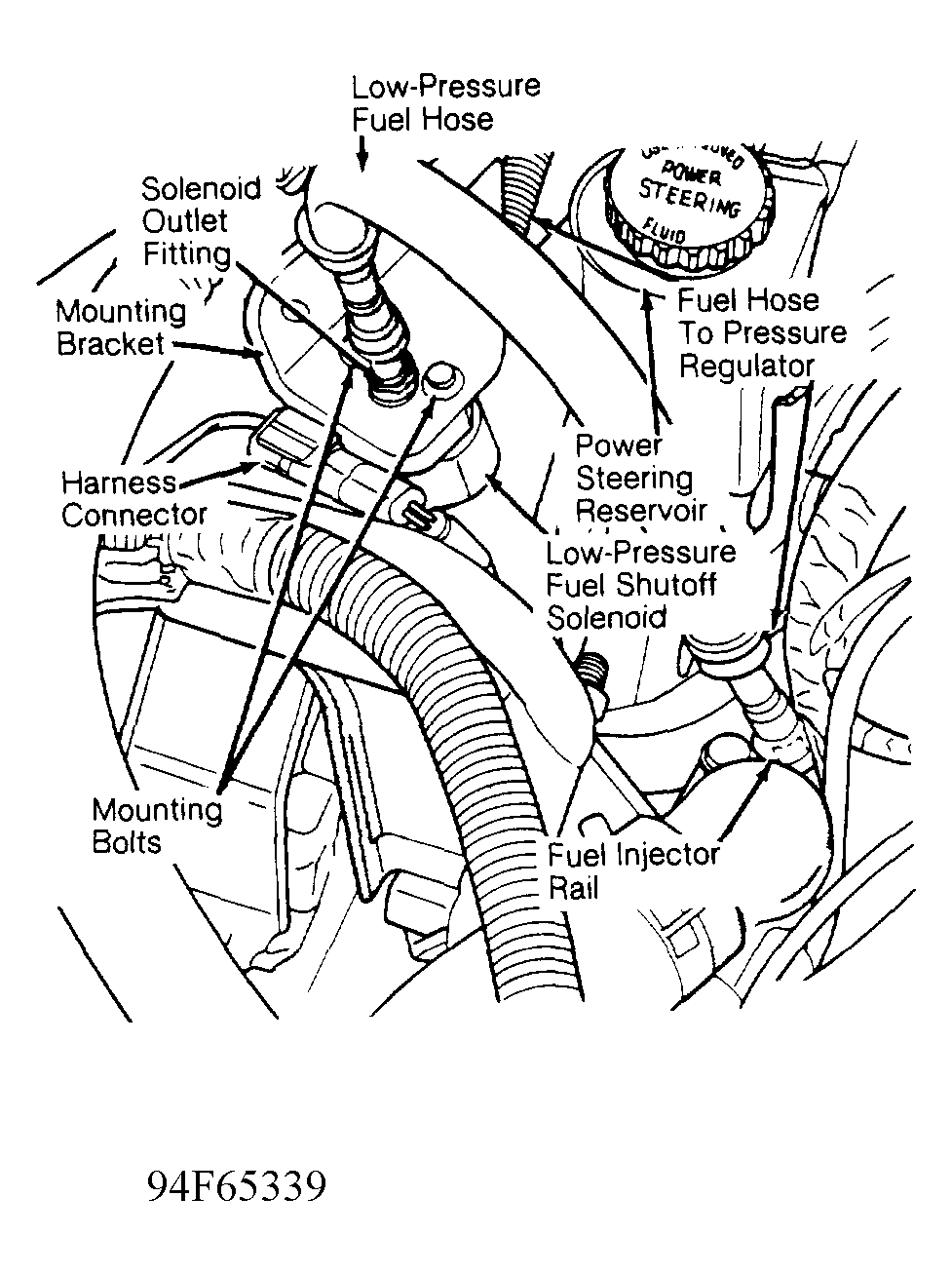

Fig 1: Low-Pressure Fuel Shutoff Solenoid ID (Caravan & Voyager)
G94F65339Courtesy of CHRYSLER CORP.
