Removal & Installation

WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect electrical connector from intake manifold air temperature sensor. See Fig 1. Remove intake manifold air temperature sensor from intake manifold cover.
To install, reverse removal procedure. Tighten intake manifold air temperature sensor to specification. See TORQUE SPECIFICATIONS .

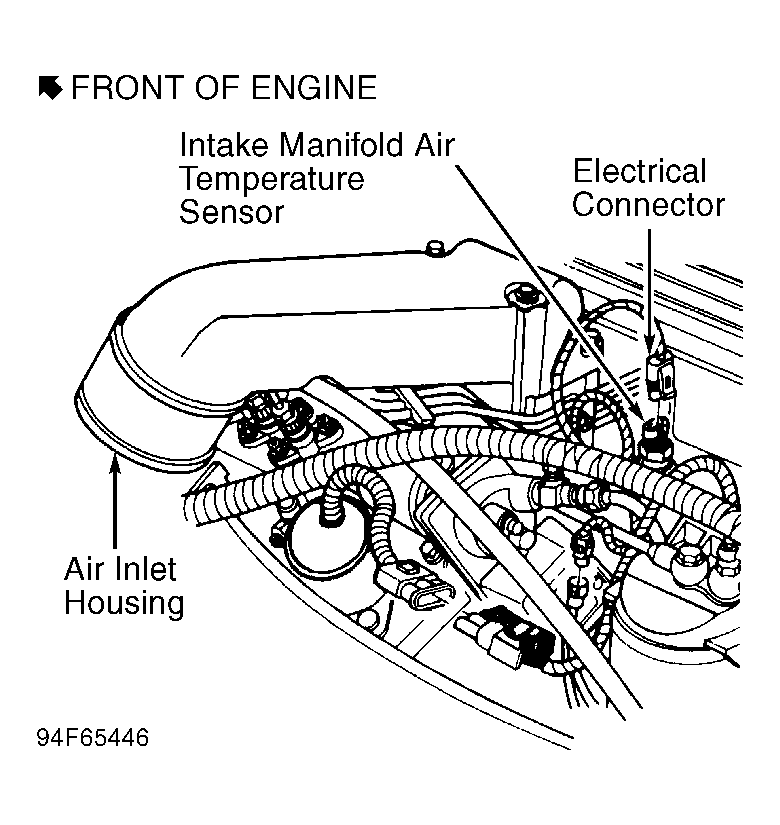

Fig 1: Identifying Intake Manifold Air Temperature Sensor

Courtesy of CHRYSLER CORP.
