Engine Speed Sensor: Removal
WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

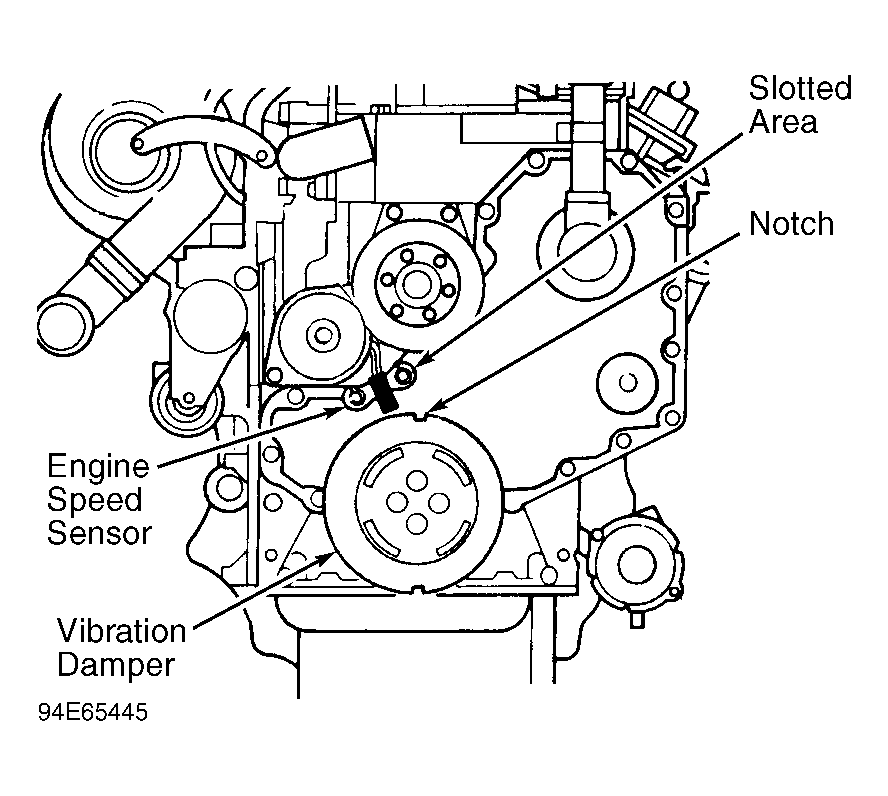

- Engine speed sensor is located on front timing gear cover, just above vibration damper. See Figure. Disconnect electrical connector at engine speed sensor.
- Note routing of electrical wiring harness for engine speed sensor. Remove electrical wiring harness retaining clips. Note location of spacers between engine speed sensor and front timing gear cover. Remove bolts, engine speed sensor and spacers.
