Removal & Installation
WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

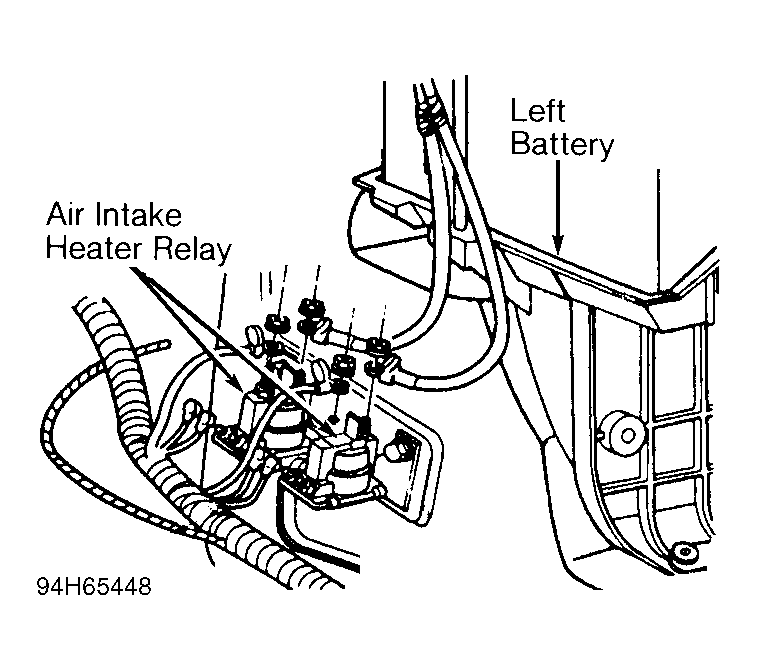

- Intake air heater relays are located in engine compartment, below the left battery. See Fig 1. Note location of wiring on air intake heater relays for reassembly reference. Disconnect electrical connectors at air intake heater relays.
- Remove bolts and air intake heater relay assembly. To install, reverse removal procedure. Tighten air intake heater relay assembly bolts to specification. See TORQUE SPECIFICATIONS .
