Removal & Installation

WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cables. Disconnect electrical connector at relay. See Fig 1. Remove relay from mounting bracket. To install, reverse removal procedure.

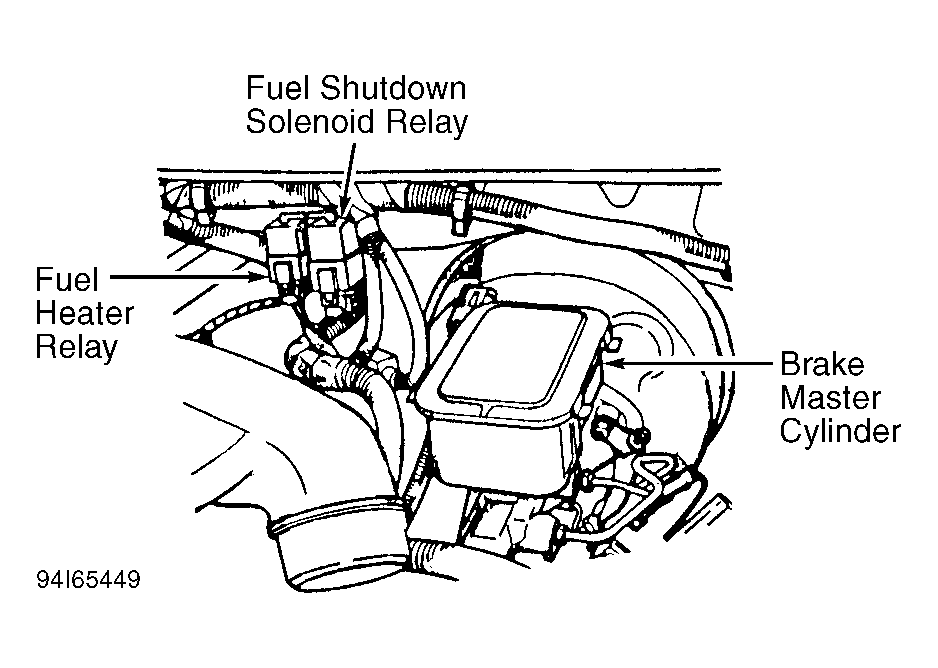

Fig 1: Identifying Fuel Heater & Fuel Shutdown Solenoid Relays
G94I65449Courtesy of CHRYSLER CORP.
