Removal & Installation

WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

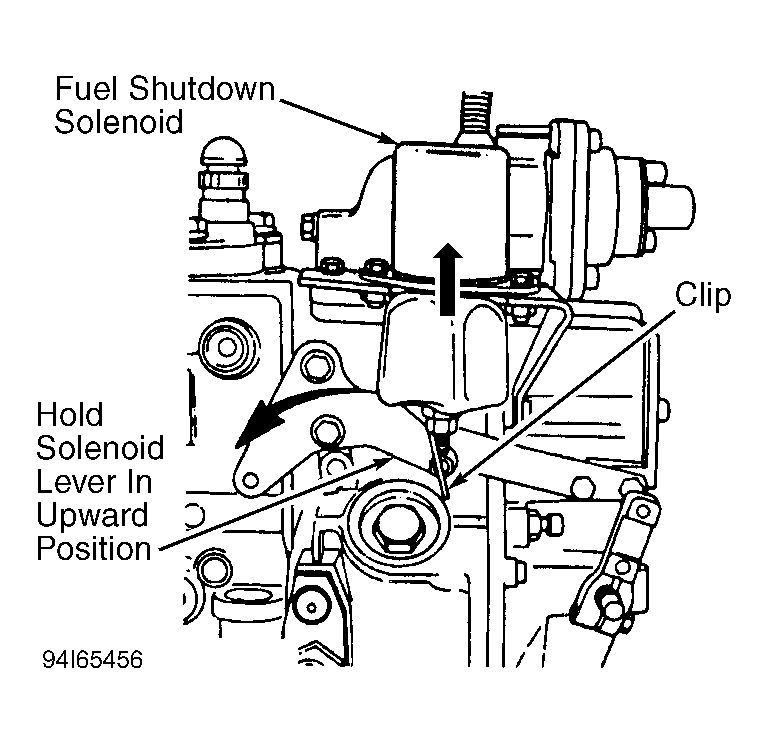

  1. Disconnect electrical connector from fuel shutdown solenoid, located on side of fuel injection pump. See Figure. Remove clip, mounting bolts and fuel shutdown solenoid.
  2. To install, reverse removal procedure. After installing fuel shutdown solenoid, fuel shutdown solenoid shaft adjustment must be checked.
