Fuel Shutdown Solenoid Shaft Adjustment

WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition on. Pull upward and hold solenoid lever in the upward position. See Figure. If solenoid is operating correctly, solenoid lever should remain in upward position with ignition on.
  2. Measure distance from bottom of mounting bracket to end of lever pin. See Fig 2. Distance should be 2.64" (67 mm). If distance is incorrect, loosen shaft lock nut and rotate adjustment nut until correct distance is obtained. See Fig 2. Tighten shaft lock nut and recheck the distance.
Fig 1: Identifying Fuel Shutdown Solenoid & Solenoid Lever
G94I65456Courtesy of CHRYSLER CORP.

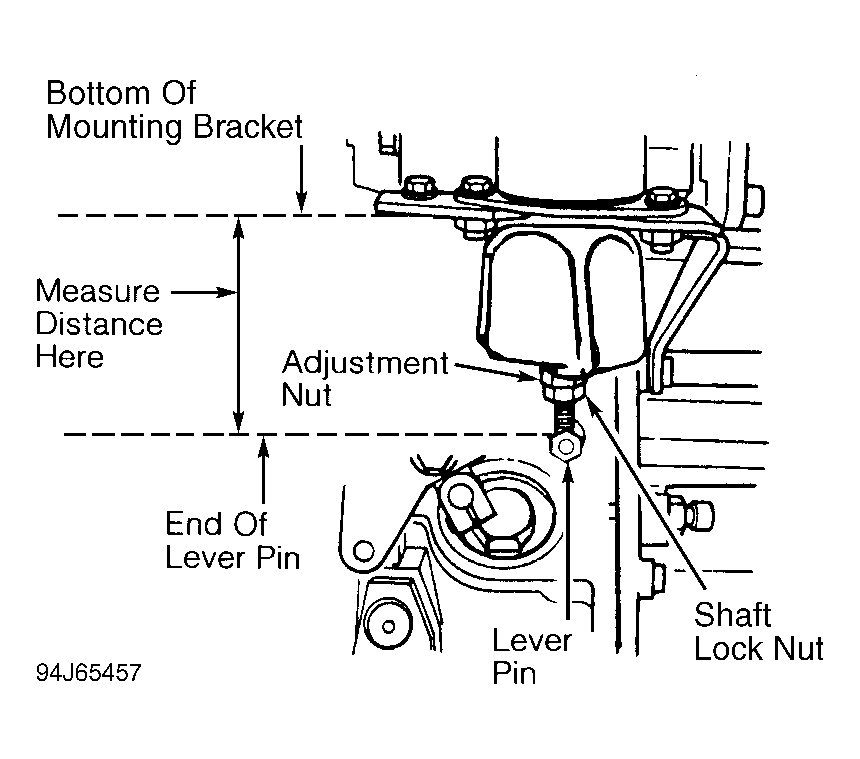

Fig 2: Measuring & Adjusting Fuel Shutdown Solenoid Shaft Distance
G94J65457Courtesy of CHRYSLER CORP.
