Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 1992 Oldsmobile Bravada, 1992 GMC Vandura Special, 1992 GMC Vandura, 1992 GMC Value Van, and 1992 GMC Sonoma. However, it is still accessible from the selected car via links, so may be relevant.

Control module applies and monitors a 5-volt DC signal to knock sensors. Internal knock sensor circuitry pulls this DC signal down to about 2.5 volts. When knock sensor detects detonation, it generates an AC signal which rides back on DC signal to VCM. Knock signal intensity is dependent upon knock signal level.

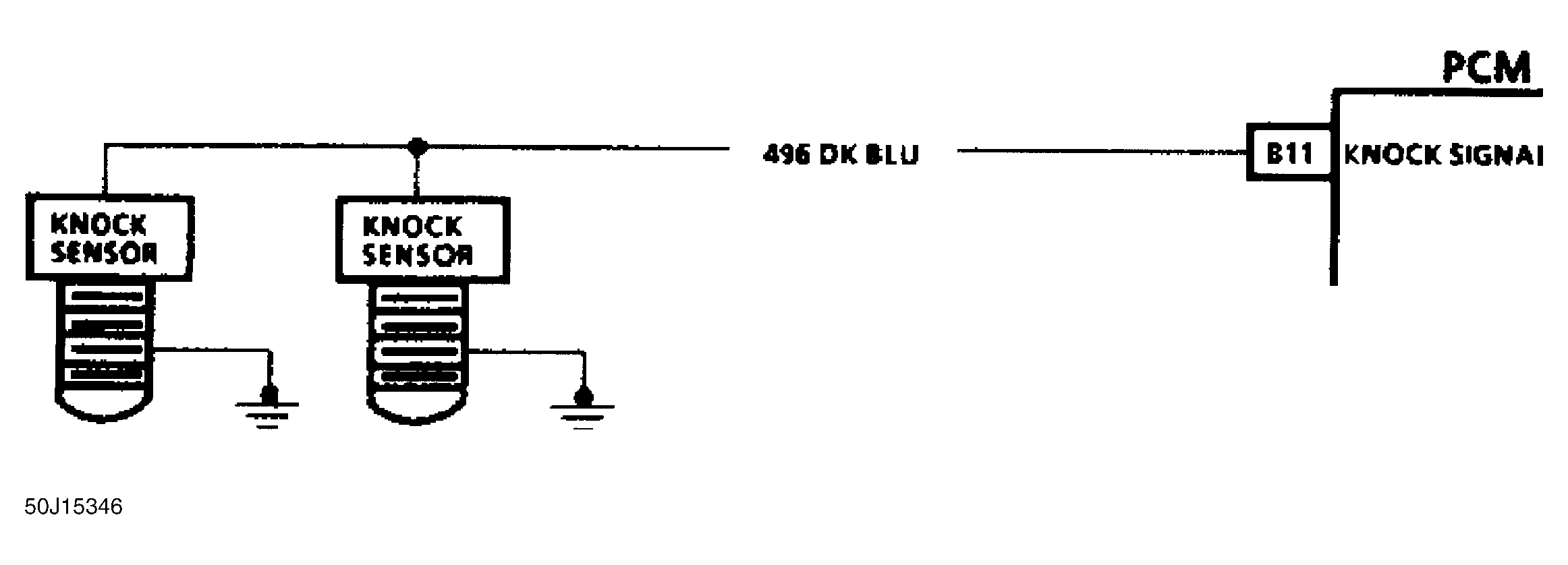

Fig 1: Code 43 Schematic (Dual Sensors) Knock Sensor W/O Spark Module

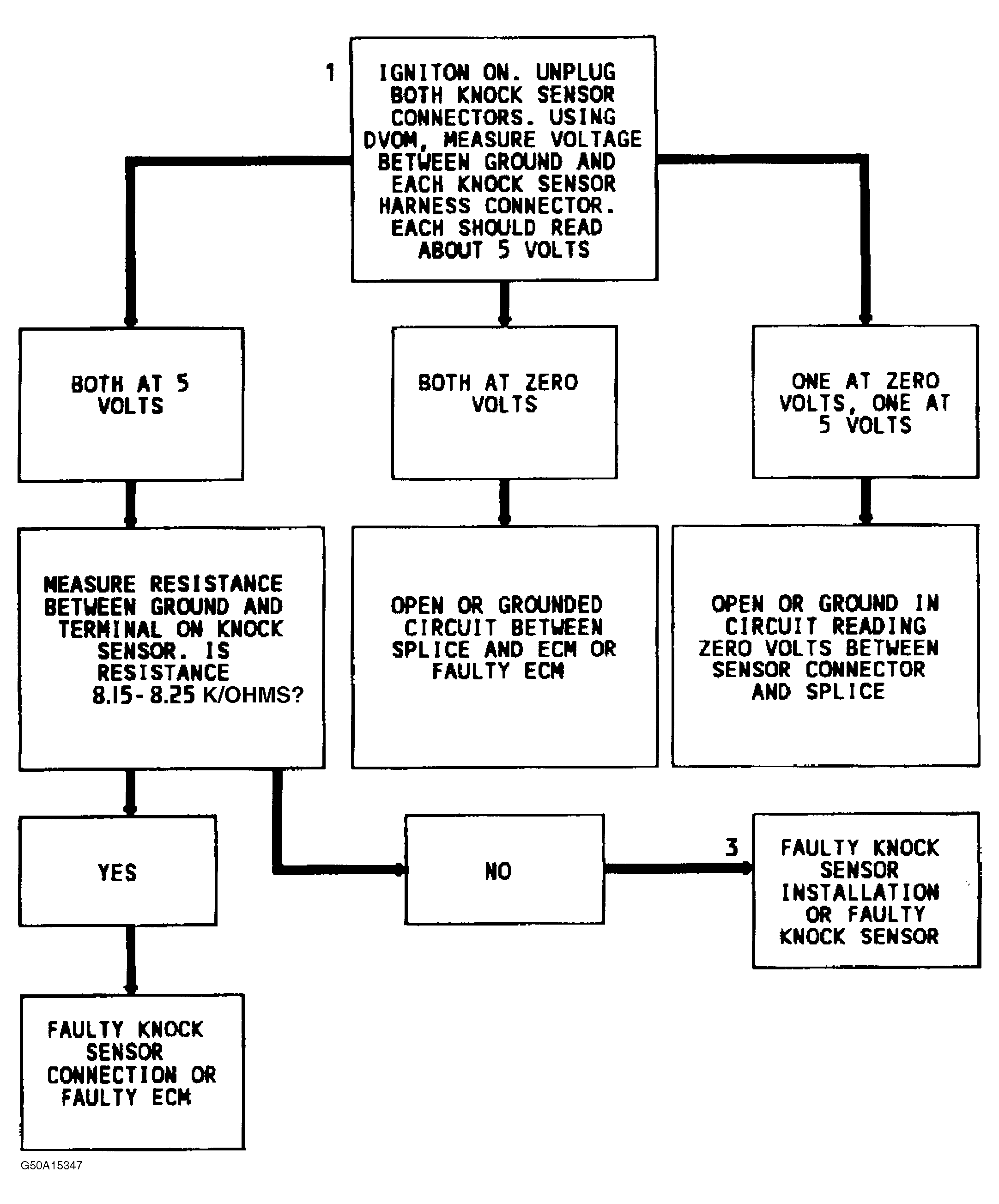

Fig 2: Code 43 Flow Chart (Dual Sensors) Knock Sensor W/O Spark Module

Code 43 can be caused by a faulty knock sensor connection at the ESC module or ECM. Also, check the controller-to-ECM signal line for an open or short to ground.

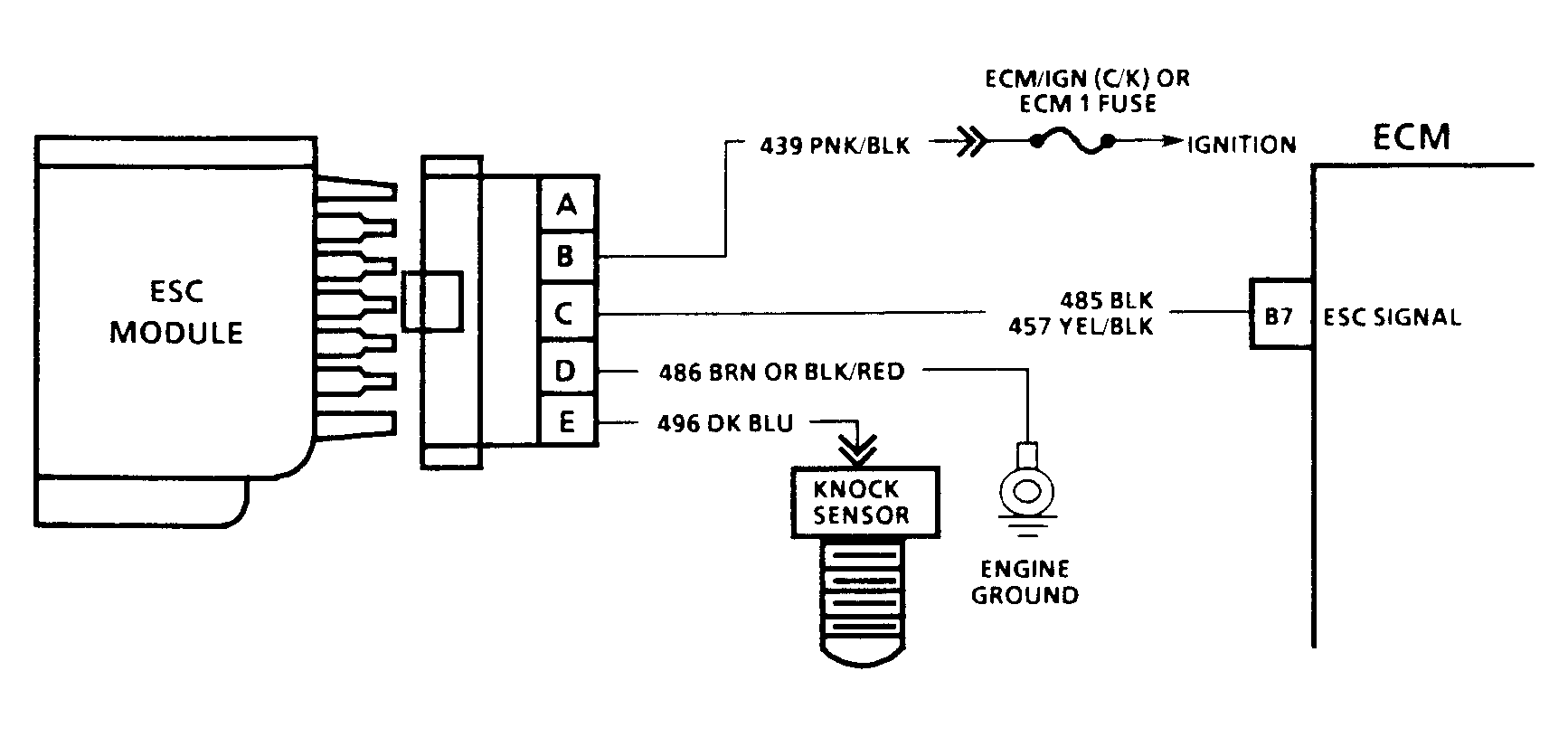

Fig 1: Code 43 Schematic (3.1L) Electronic Spark Control

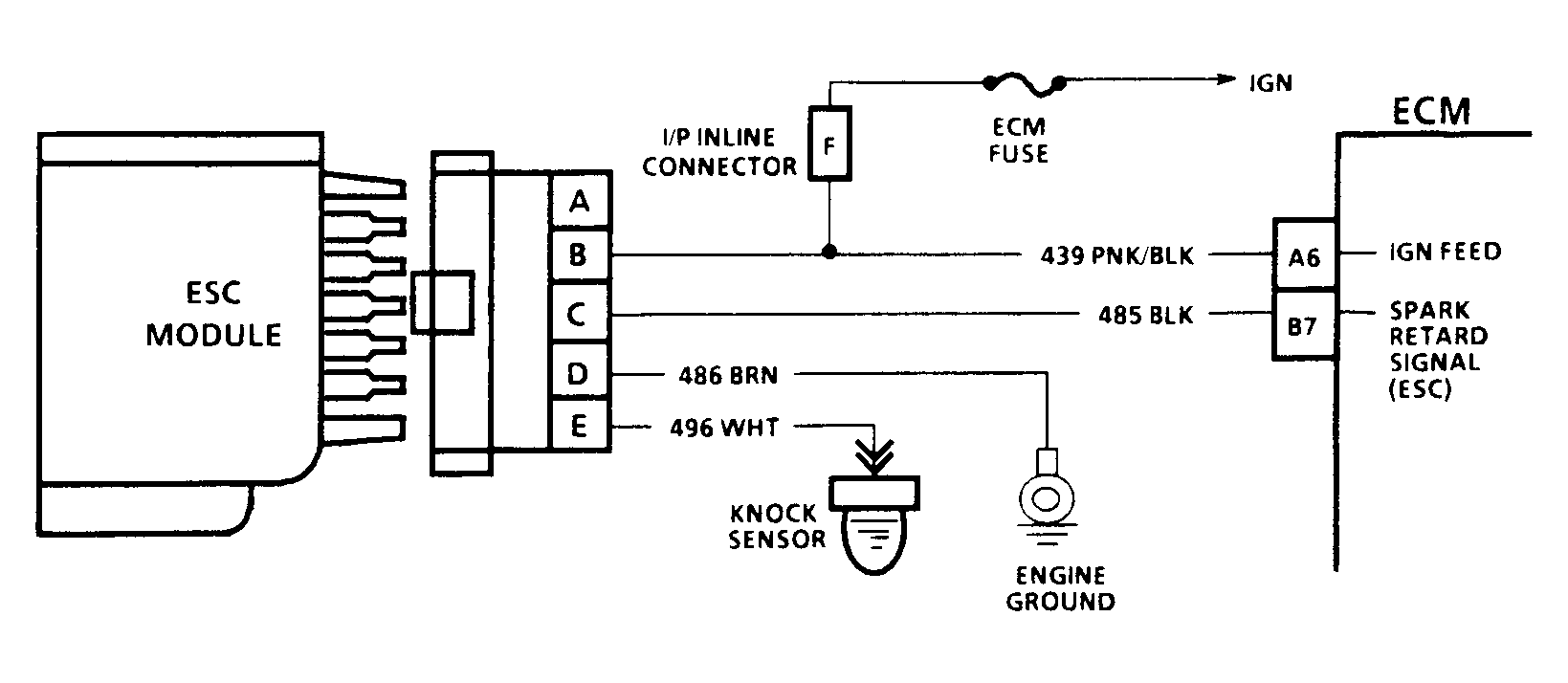

Fig 2: Code 43 Schematic (All Except 3.1L, 4.3L Turbo & Models W/4L80-E Transmission) Electronic Spark Control

Fig 3: Code 43 Flow Chart (All Except 4.3L Turbo & Models W/4L80-E Transmission) Electronic Spark Control
