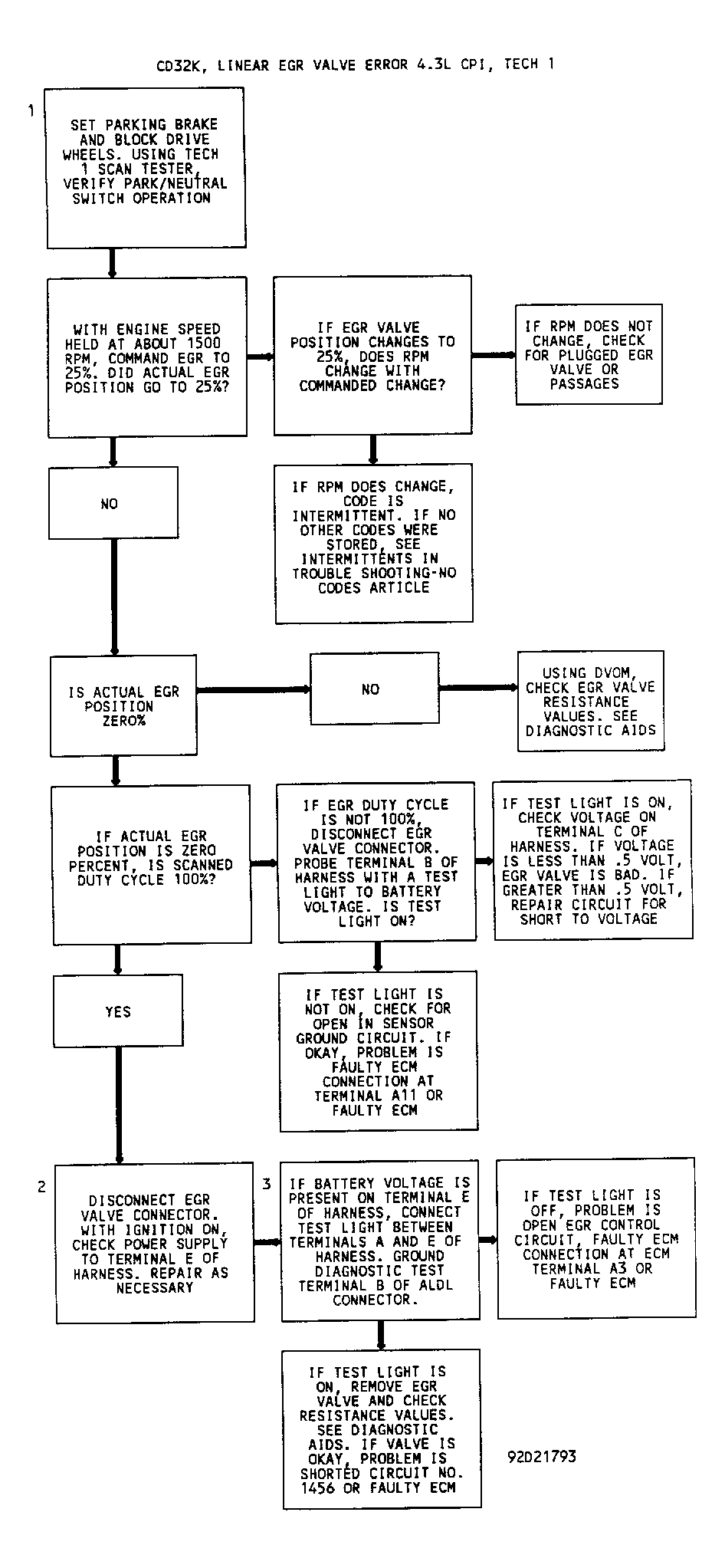

Diagnostic Aids
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 1992 Oldsmobile Bravada, 1992 GMC Vandura Special, 1992 GMC Vandura, 1992 GMC Value Van, and 1992 GMC Sonoma. However, it is still accessible from the selected car via links, so may be relevant.
Before replacing ECM, use an ohmmeter and check EGR valve resistances. Resistance between terminals "A" and "E" should be 9.5-10.5 ohms. Resistance between terminals "B" and "D" should be greater than 3000 ohms. Resistance between terminals "B" and "C" should start at 700 ohms and increase to about 4000 ohms as pintle is slowly moved inward.
NOTE:
For circuit schematic, see WIRING DIAGRAMS
article.
