Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 1992 Oldsmobile Bravada, 1992 GMC Vandura Special, 1992 GMC Vandura, 1992 GMC Value Van, and 1992 GMC Sonoma. However, it is still accessible from the selected car via links, so may be relevant.

Verify a clean, tight connection for ground circuit No. 413. An open circuit at sensor signal terminal or ground terminal will result in a Code 13.

CODE 13 ECM TERMINAL & CIRCUIT WIRING ID (ALL W/4L80-E A/T)

Application	ECM Terminal	Wire Color
O2 Sensor Signal	C14	Purple
O2 Sensor Ground	C13	Tan

CODE 13 ECM TERMINAL & CIRCUIT WIRING ID (ALL OTHERS)

Application	ECM Terminal	Wire Color
O2 Sensor Signal	D7	Purple
O2 Sensor Ground	D6	Tan

Fig 1: Code 13 Schematic (Except 4.3L Turbo) Open Oxygen Sensor Circuit

Fig 2: Code 13 Flow Chart (Except 4.3L Turbo) Open Oxygen Sensor Circuit

Verify a clean, tight connection for ground circuit No. 413. An open circuit at sensor signal terminal or ground terminal will result in a Code 13. Both oxygen sensor and heating element must be functioning properly to enable closed loop operation.

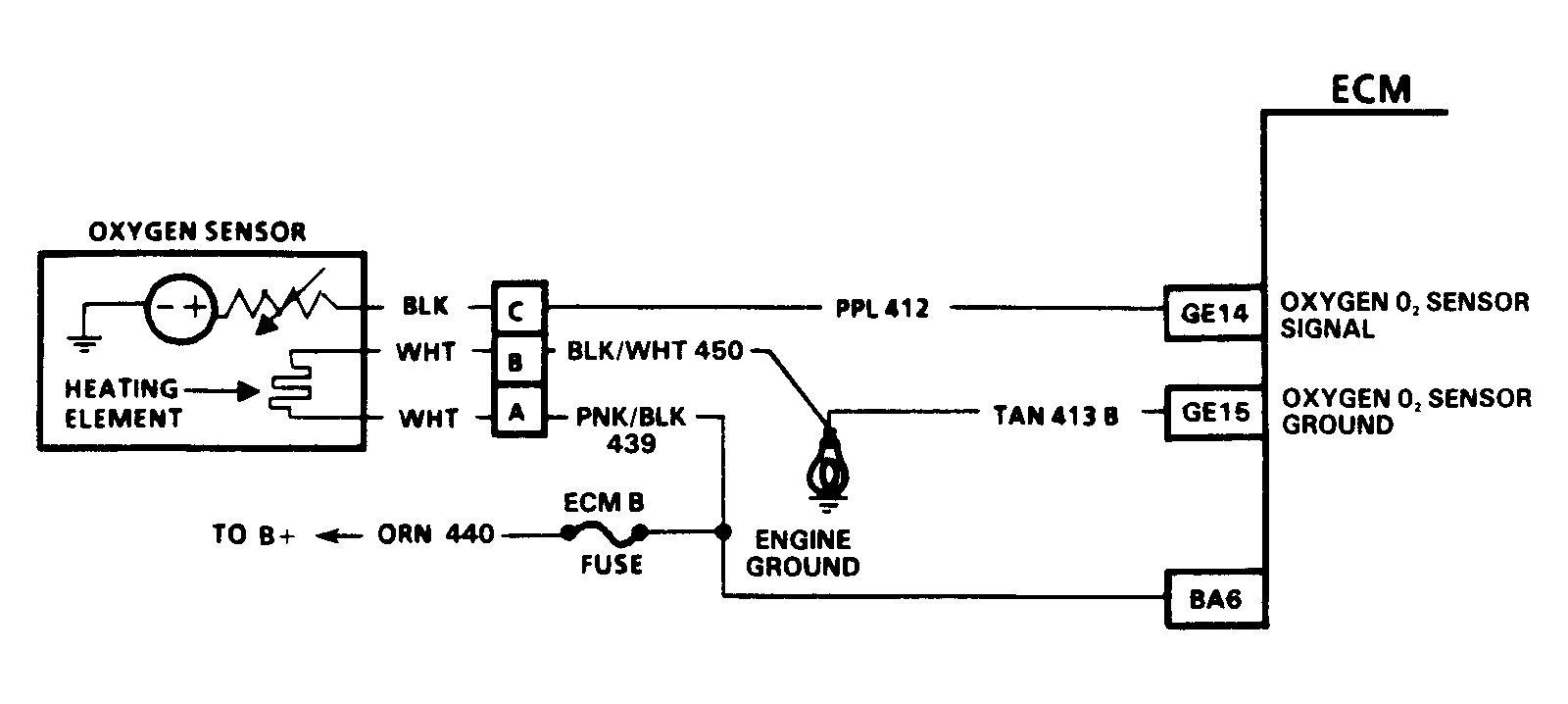

Fig 1: Code 13 Schematic (4.3L Turbo) Open Oxygen Sensor Circuit

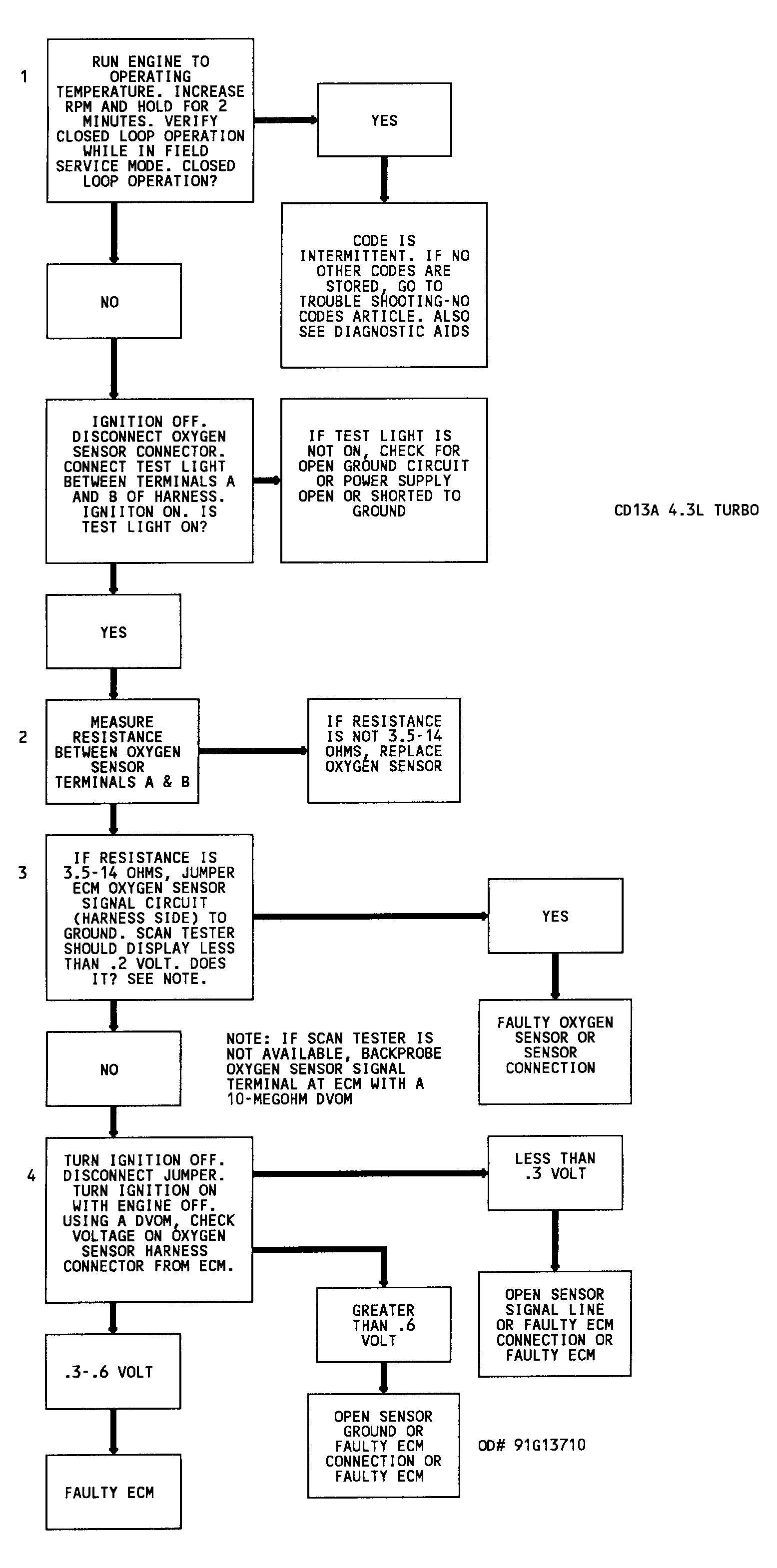

Fig 2: Code 13 Flow Chart (4.3L Turbo) Open Oxygen Sensor Circuit
