Vacuum Hose Diagram(S)

WARNING: This page is about a different car, the 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Always refer to Emission Control Label in engine compartment before attempting service. If manual and label differ, always use emission label specifications. CNG vacuum diagrams are not supplied by manufacturer.

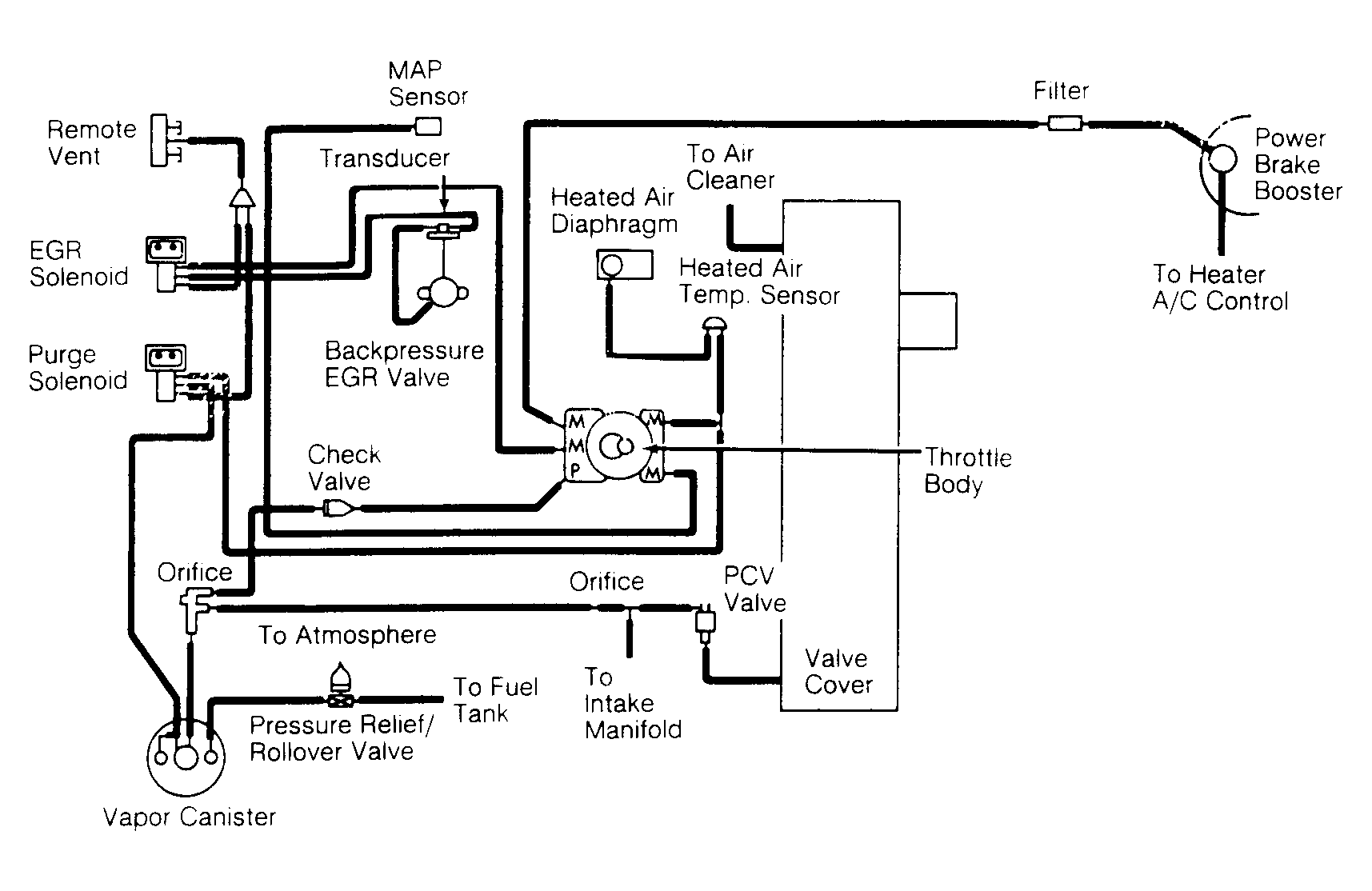

Fig 1: Vacuum Diagram (2.5L)

Courtesy of CHRYSLER CORP.

Fig 2: Vacuum Diagram (3.9L - Light Duty)

Courtesy of CHRYSLER CORP.

Fig 3: Vacuum Diagram (5.2L - Light Duty)

Courtesy of CHRYSLER CORP.
