Fuel Pressure Regulator

WARNING: This page is about a different car, the 1995 Plymouth Voyager, 1995 Plymouth Grand Voyager, 1995 Dodge Grand Caravan, and 1995 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.

Fuel pressure regulator is a mechanical device, used to maintain a constant pressure across fuel injector tip. Manifold vacuum is used to control fuel pressure more precisely. Spring and rubber diaphragm will move from an open to closed position keeping fuel pressure constant. Fuel pressure regulator is located on fuel rail, downstream of fuel injectors. Excess fuel is routed back to fuel tank with a fuel return line.

GAS FUEL PUMP REGULATED PRESSURE ⁽¹⁾

Application

Pressure - psi (kPa)

3.3L

⁽²⁾ 48 (331)

⁽¹⁾	Fuel pressure taken at engine idle (no load).

⁽²⁾	Fuel pressure without vacuum applied to fuel pressure regulator.

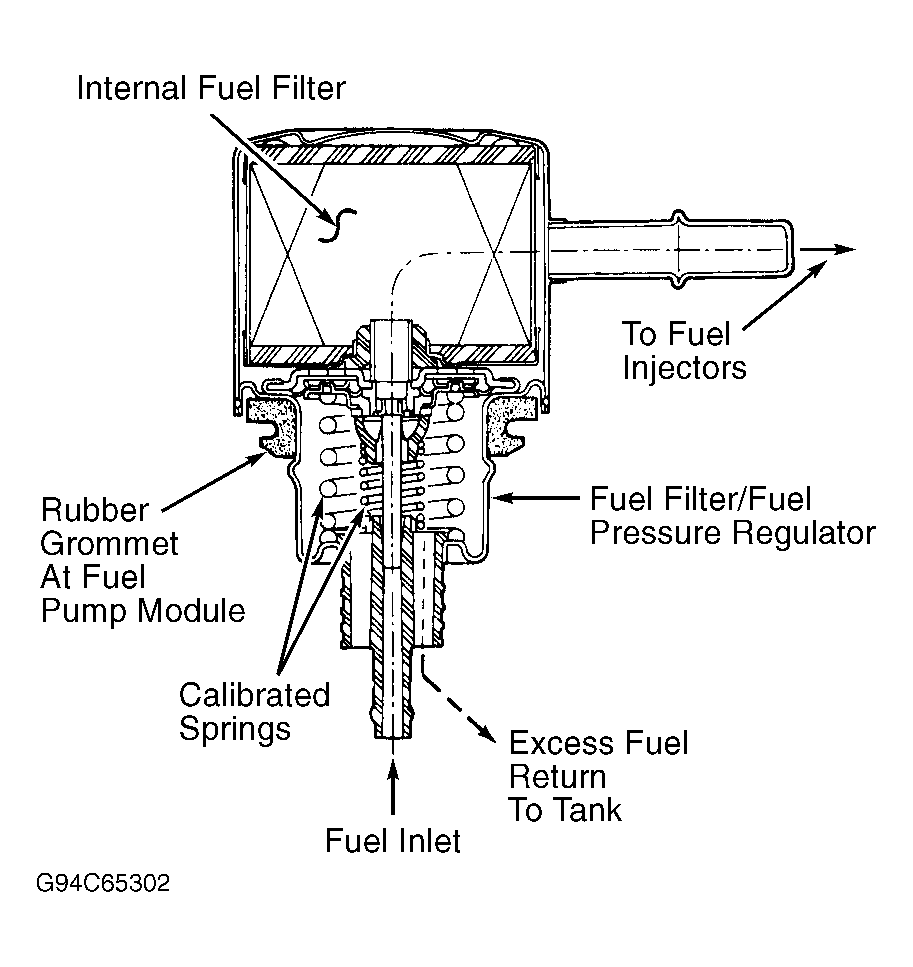

Fig 1: Fuel Filter/Fuel Pressure Regulator (Mechanical)

Courtesy of CHRYSLER CORP.
