Connector Identification

WARNING: This page is about a different car, the 1995 Dodge Pickup and 1995 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
A/C Clutch Relay	Fig 1
Auto Shutdown (ASD) Relay	Fig 2
Camshaft Position Sensor	Fig 3
Crankshaft Position Sensor	Fig 4
Exhaust Gas Recirculation (EGR) Solenoid	Fig 5
Engine Coolant Temperature (ECT) Sensor	Fig 6
Evaporative Purge Solenoid	Fig 7
Fuel Pump	Fig 8
Fuel Pump Relay	Fig 9
Idle Air Control (IAC) Motor	Fig 10
Ignition Coil	Fig 11 -Fig 12
Ignition Control Module	Fig 13
Intake Air Temperature (IAT) Sensor	Fig 14
Manifold Absolute Pressure (MAP) Sensor	Fig 15
02S	Fig 16
Powertrain Control Module (PCM)	Fig 20
Throttle Position (TP) Sensor	Fig 17
Torque Converter Clutch/Overdrive Solenoid	Fig 18
Transmission Temperature Sensor	Fig 19

A/C CLUTCH RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Light Green/Black	Fused Ign. Sw. Output
B	Violet	Fused Battery Voltage
C	Dark Blue/Orange	Relay Control
D	Dark Blue/Black	Relay Output

Fig 1: Identifying A/C Clutch Relay Connector Terminals (Ram Pickup)

Courtesy of CHRYSLER CORP.

ASD RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Light Green/Black	Fused Ign. Sw. Output
B	Gray/White	Fused Battery Voltage
C	Dark Blue/Yellow	Relay Control
D	Dark Green/Orange	Relay Output

Fig 2: Identifying ASD Relay Connector Terminals (Ram Pickup)

Courtesy of CHRYSLER CORP.

CAMSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Tan/Yellow	Signal
2	Black/Light Blue	Ground
3	Orange	8-Volt Supply

Fig 3: Identifying Camshaft Sensor Connector Terminals (Ram Pickup)

Courtesy of CHRYSLER CORP.

CRANKSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Gray/Black	Signal
2	Black/Light Blue	Ground
3	Orange	8-Volt Supply

Fig 4: Crankshaft Sensor Connector Terminal ID (Ram Pickup)

Courtesy of CHRYSLER CORP.

EGR SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Light Green/Black	Fused Ign. Sw. Output
2	Gray/Yellow	Control

Fig 5: Identifying EGR Solenoid Connector Terminals (Ram Pickup)

Courtesy of CHRYSLER CORP.

ECT SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Tan/Black	Signal
2	Black/Light Blue	Ground

Fig 6: ECT Sensor Connector Terminal ID (Ram Pickup)

Courtesy of CHRYSLER CORP.

EVAPORATIVE PURGE SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Light Green/Black	Fused Ignition Switch Output
2	Pink/Black	Solenoid Control

Fig 7: Identifying Evaporative Purge Solenoid Connector Terminals

Courtesy of CHRYSLER CORP.

FUEL PUMP CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Green/Black	Fuel Pump Relay Output
2	Dark Blue	Sending Unit Feed
3	-----	Not Used
4	Black/White	Sending Unit Ground
5	Black	Fuel Pump Ground

Fig 8: Fuel Pump Connector Terminal ID (Ram Pickup)

Courtesy of CHRYSLER CORP.

FUEL PUMP RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Light Green/Black	Ignition 12-Volt Feed
B	Red/White	Battery Voltage
C	Dark Blue/Yellow	ASD Relay Control
D	Dark Grn./Black	Fuel Pump Relay Output

Fig 9: Identifying Fuel Pump Relay Connector Terminals (Ram Pickup)

Courtesy of CHRYSLER CORP.

IAC MOTOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Gray/Red	IAC Driver No. 3
2	Yellow/Black	IAC Driver No. 2
3	Brown/White	IAC Driver No. 1
4	Violet/Black	IAC Driver No. 4

Fig 10: IAC Motor Connector Terminal ID (Ram Pickup)

Courtesy of CHRYSLER CORP.

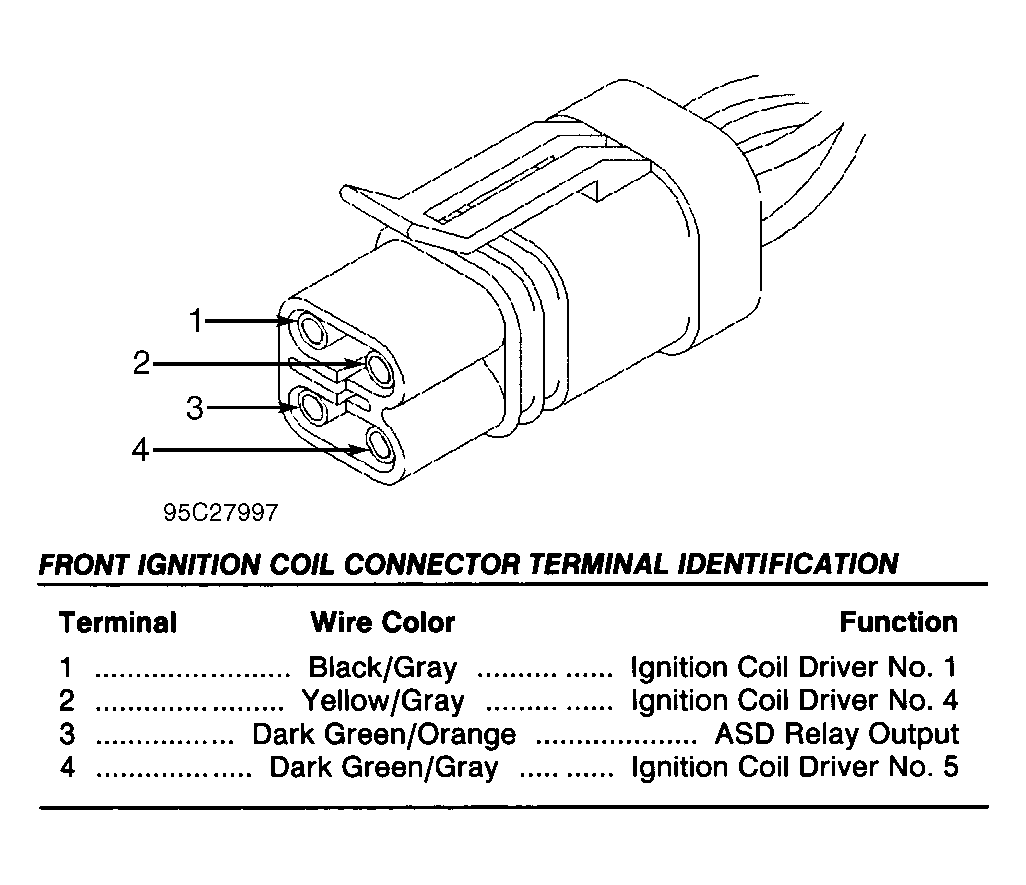

FRONT IGNITION COIL CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Gray	Ignition Coil Driver No. 1
2	Yellow/Gray	Ignition Coil Driver No. 4
3	Dark Green/Orange	ASD Relay Output
4	Dark Green/Gray	Ignition Coil Driver No. 5

Fig 11: Ignition Coil Connector Terminal ID (Ram Pickup - Front Coil)

Courtesy of CHRYSLER CORP.

IGNITION COIL CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Red/Yellow	Ignition Coil Driver No. 3
2	Dark Green/Orange	ASD Relay Output
3	Dark Blue/Tan	Ignition Coil Driver No. 2

Fig 12: Ignition Coil Connector Terminal ID (Ram Pickup - Rear Coil)

Courtesy of CHRYSLER CORP.

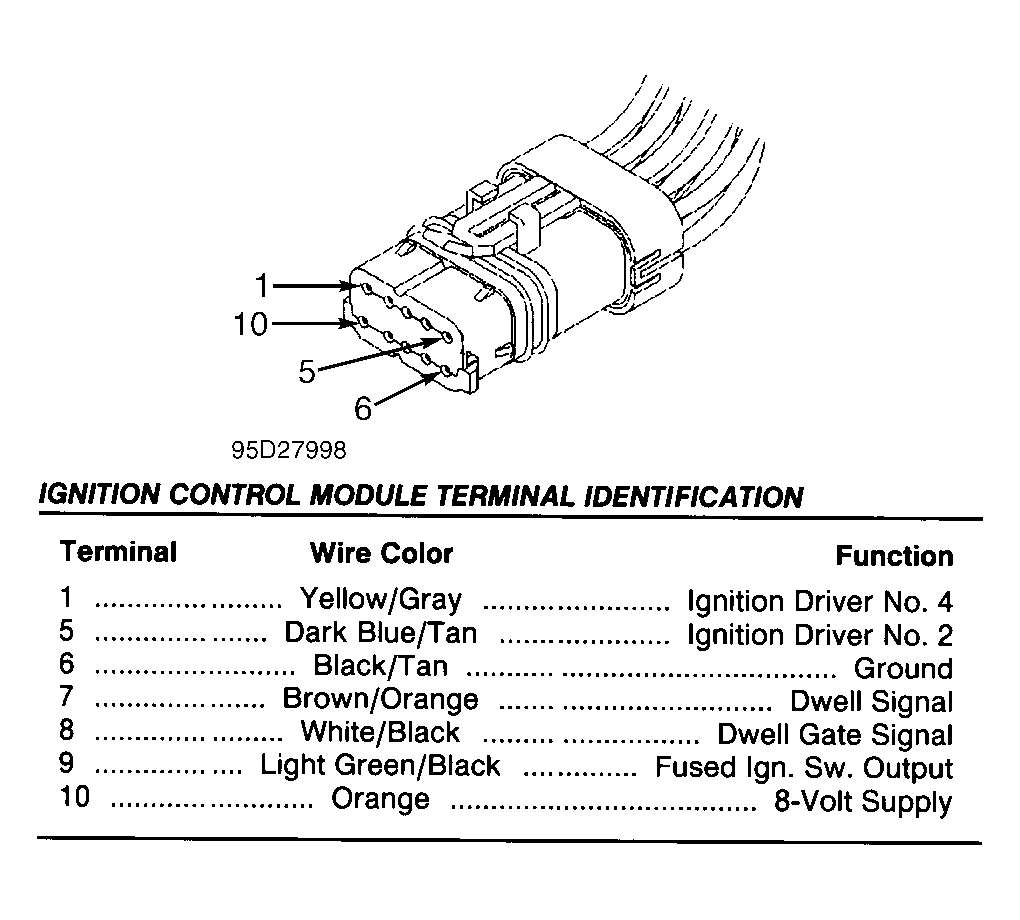

IGNITION CONTROL MODULE TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Yellow/Gray	Ignition Driver No. 4
5	Dark Blue/Tan	Ignition Driver No. 2
6	Black/Tan	Ground
7	Brown/Orange	Dwell Signal
8	White/Black	Dwell Gate Signal
9	Light Green/Black	Fused Ign. Sw. Output
10	Orange	8-Volt Supply

Fig 13: Ignition Control Module Connector Terminal ID (Ram Pickup)

Courtesy of CHRYSLER CORP.

INJECTOR CONNECTOR TERMINAL ID (INJECTOR SIDE)

Terminal	Wire Color	Function
1	White/Dark Blue	Injector Driver No. 1
2	Brown	Injector Driver No. 2
3	Yellow/White	Injector Driver No. 3
4	Light Blue/Brown	Injector Driver No. 4
5	Dark Green/Orange	ASD Output
6	-----	Not Used
7	Brown/Dark Blue	Injector Driver No. 6
8	Gray	Injector Driver No. 5

IAT SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Red	Signal
2	Black/Light Blue	Ground

Fig 14: IAT Sensor Connector Terminal ID (Ram Pickup)

Courtesy of CHRYSLER CORP.

MAP SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Violet/White	5-Volt Supply
2	Black/Light Blue	Ground
3	Dark Green/Red	Signal

Fig 15: MAP Sensor Connector Terminal ID (Ram Pickup)

Courtesy of CHRYSLER CORP.

O2S CONNECTOR TERMINAL ID (DUAL O2S)

Terminal

Wire Color

Function

Black/Light Blue

Sensor Ground

⁽¹⁾ Tan/White

O2S Signal

⁽²⁾ Black/Dark Green

O2S Signal

Black/White

Heater Ground

Dark Green/Orange

ASD Relay Output

⁽¹⁾

Left O2S.

⁽²⁾	Right O2S.

Fig 16: Identifying O2S Connector Terminals (Ram Pickup)

Courtesy of CHRYSLER CORP.

TPS CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Orange/Dark Blue	Signal
3	Violet/White	5-Volt Supply

Fig 17: TP Sensor Connector Terminal ID (Ram Pickup)

Courtesy of CHRYSLER CORP.

TCC/OVERDRIVE SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Orange/Black	TCC Solenoid Control
2	Light Green/Black	Fused Ign. Sw. Output
3	Brown	OD Solenoid Signal

Fig 18: TCC/Overdrive Solenoid Connector Terminal ID (Ram Pickup)

Courtesy of CHRYSLER CORP.

TRANSMISSION TEMPERATURE SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Violet	Sensor Signal
2	Black/Light Blue	Ground

Fig 19: Transmission Temp. Sensor Connector Terminal ID (Ram Pickup)

Courtesy of CHRYSLER CORP.

Fig 20: PCM Connector Terminal ID (Ram Pickup)

Courtesy of CHRYSLER CORP.
