Chart C-12B, Cooling Fan, On At All Times (2 Of 4) 3.8L

WARNING: This page does not describe the selected car, but rather 35 other vehicles, including the 1992 Pontiac Trans Sport, 1992 Oldsmobile Silhouette, 1992 Oldsmobile Bravada, 1992 GMC Yukon, and 1992 GMC Vandura Special. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Test numbers refer to test numbers on diagnostic charts.

Checks if circuit No. 335 is shorted to ground, keeping relay closed at all times.
Checks if circuit No. 473 is shorted to ground. An illuminated test light, indicates wire is shorted to ground.
If test light is off after disconnecting PCM, ensure circuit No. 335 is not shorted to B+. If circuit is not shorted to B+, PCM is shorted internally.
If test light is off after disconnecting PCM, ensure circuit No. 473 is not shorted to B+. If circuit is not shorted to B+, PCM is shorted internally.

Fig 1: Cooling Fan Circuit Schematic (3.8L)

Courtesy of GENERAL MOTORS CORP.

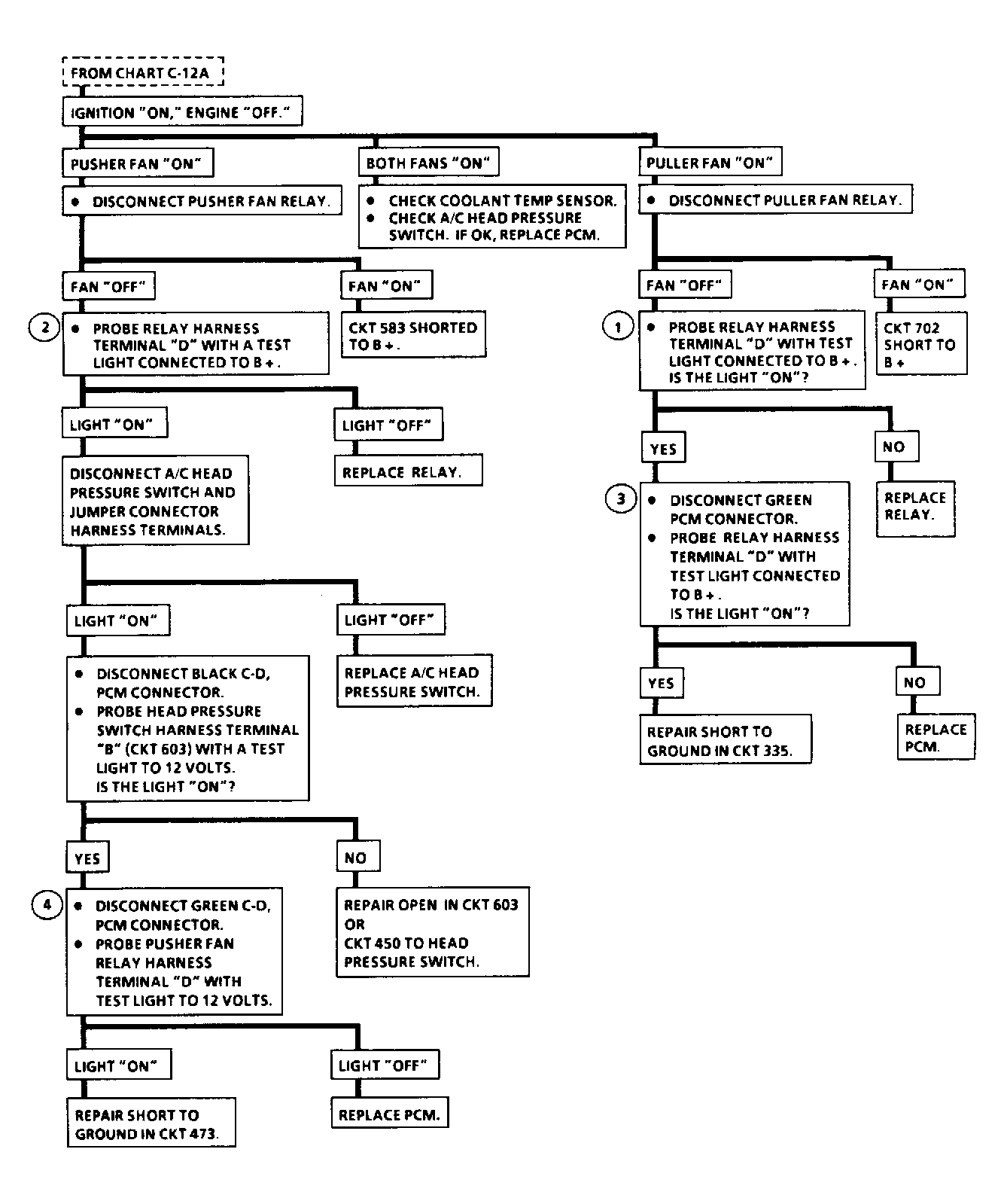

Fig 2: Cooling Fan Circuit Flow Chart, (3.8L) (2 Of 4)

Courtesy of GENERAL MOTORS CORP.
